BMW 4 Series (F32/F33/F36) & M3 (F80) / M4 (F82/F83) LED Headlights — Yellow DRL — GTS/CSL Style — 2013-2020
Total Price
Per pair (left & right)
BMW 4 Series Headlights Price
Ships within 24h
LHD = right-hand traffic (e.g., USA, Germany, France, Spain). RHD = left-hand traffic (e.g., United Kingdom, Ireland).
Select your OEM connector pin count for plug-and-play fit. Not sure? Contact us.
Product Information

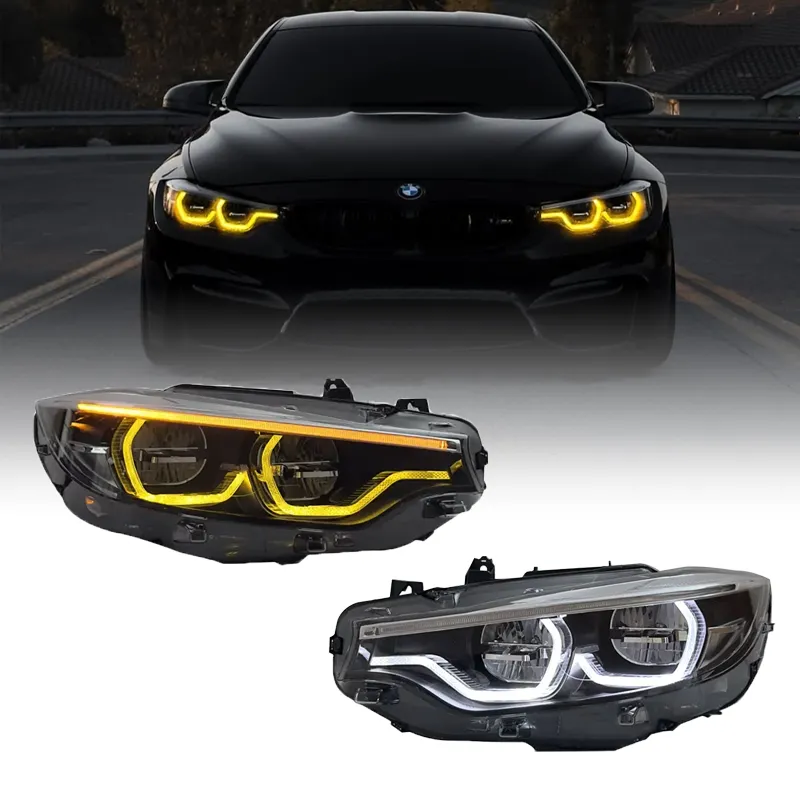

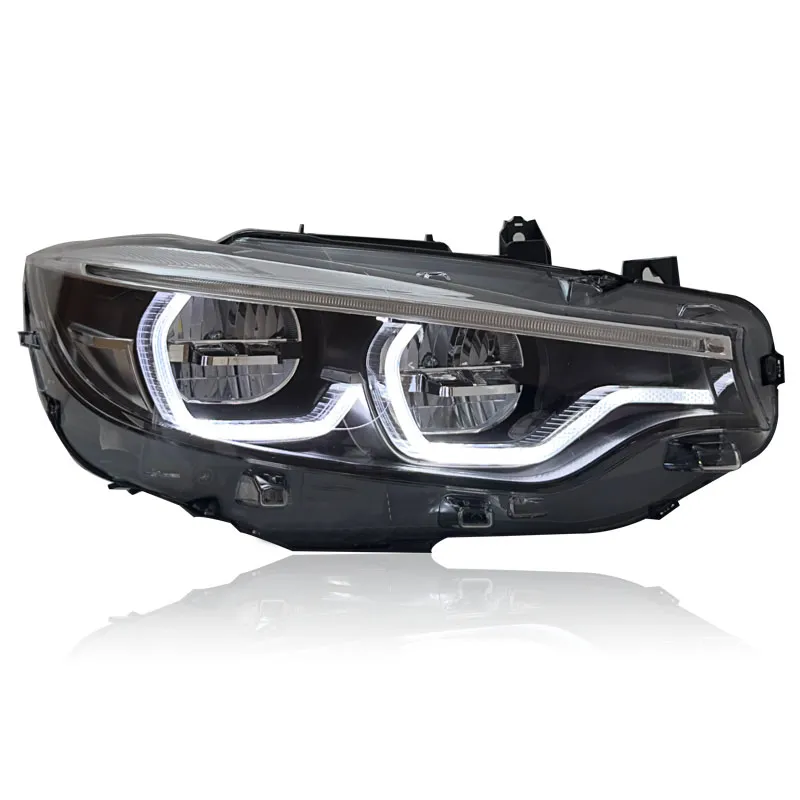

LED Headlights with Yellow DRL Mode — BMW 4 Series F32/F33/F36 • M3 F80 • M4 F82/F83 (Pre-LCI & LCI)
OEM-look, full-LED upgrade with clean light guides and precise low/high output. Plug-and-play versions for both pre-LCI Xenon and LCI LED cars.
Also known as F32 headlights with yellow DRL (GTS/CSL-style selective yellow ≈3000 K); switchable to OEM-white (~6000 K).
Quick DRL color switch
To toggle DRL color: flash high beams 5× for yellow (selective yellow ≈3000 K); flash 4× for white (~6000 K).
Highlights

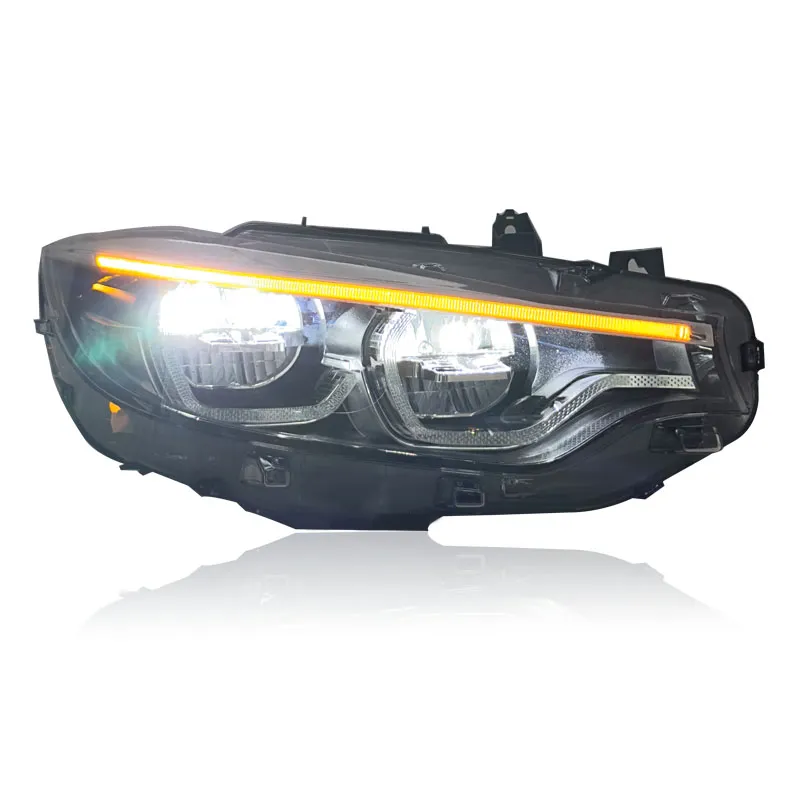

- Full LED system with clear cutoff and strong night visibility (bi-LED projectors).

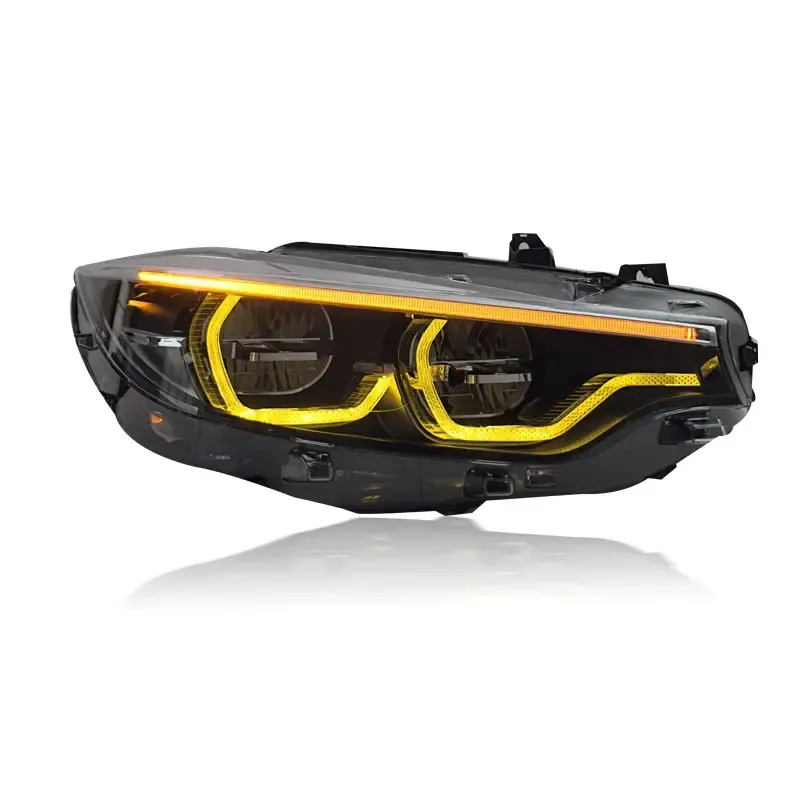

- Switchable DRL color: OEM-white ↔ selective yellow DRL (GTS/CSL-style).

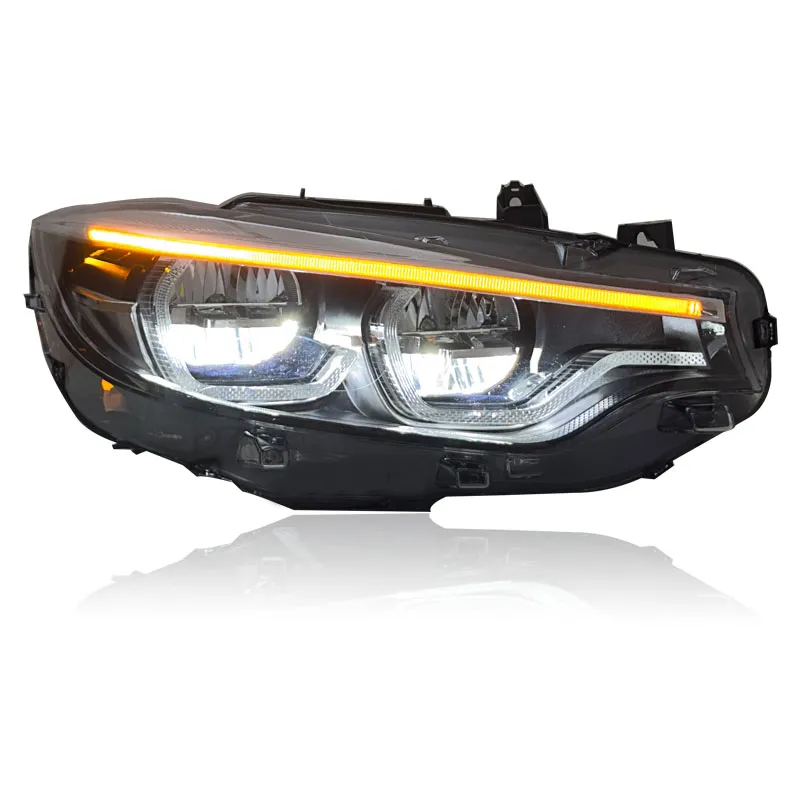

- Amber LED turn signals with crisp diffusion.
- Plug & play using the correct factory connector type (see fitment & pin guide).

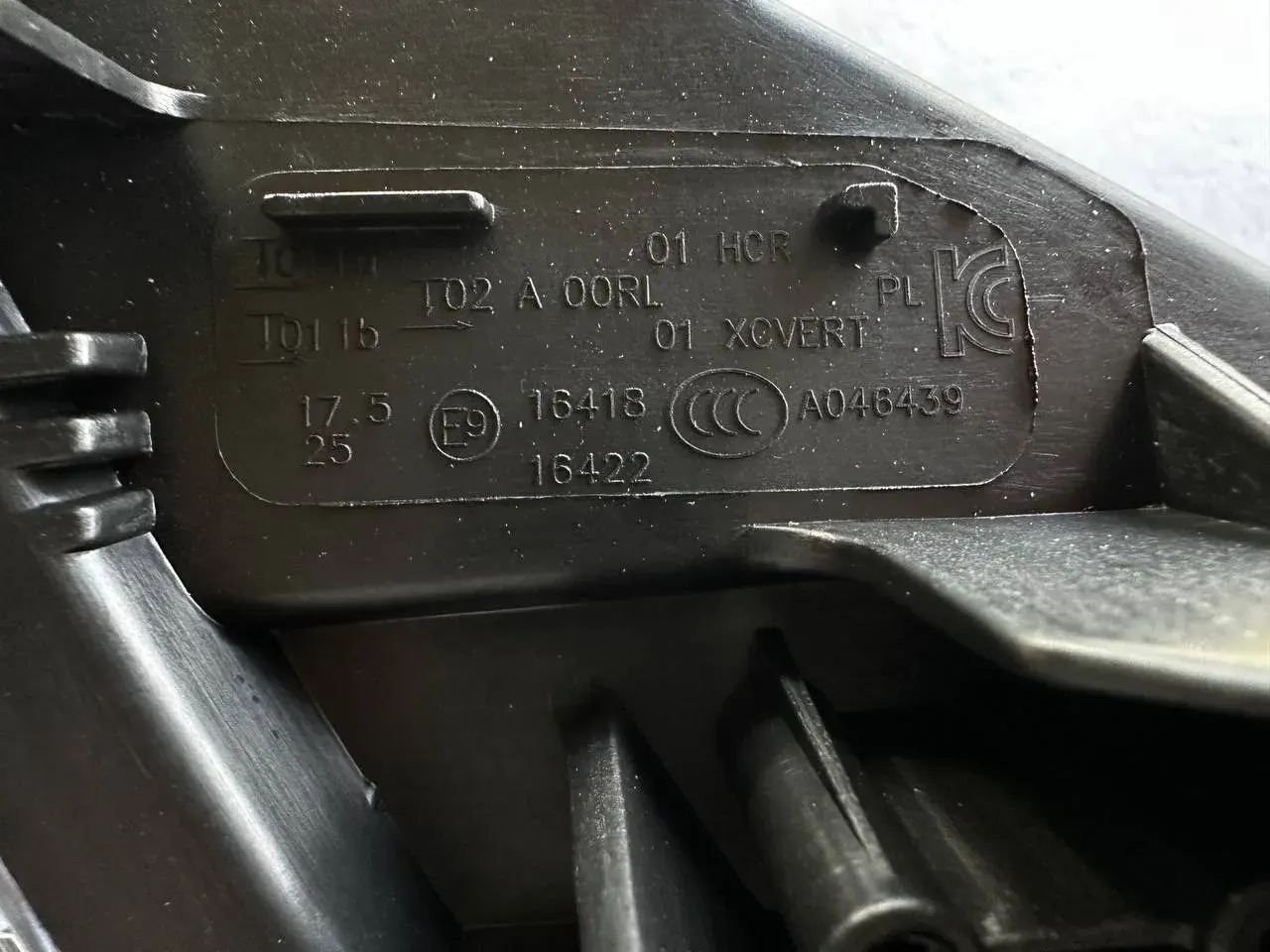

- E-mark approval; built under IATF 16949 & ISO 9001 quality systems.
- 1-year warranty from delivery.

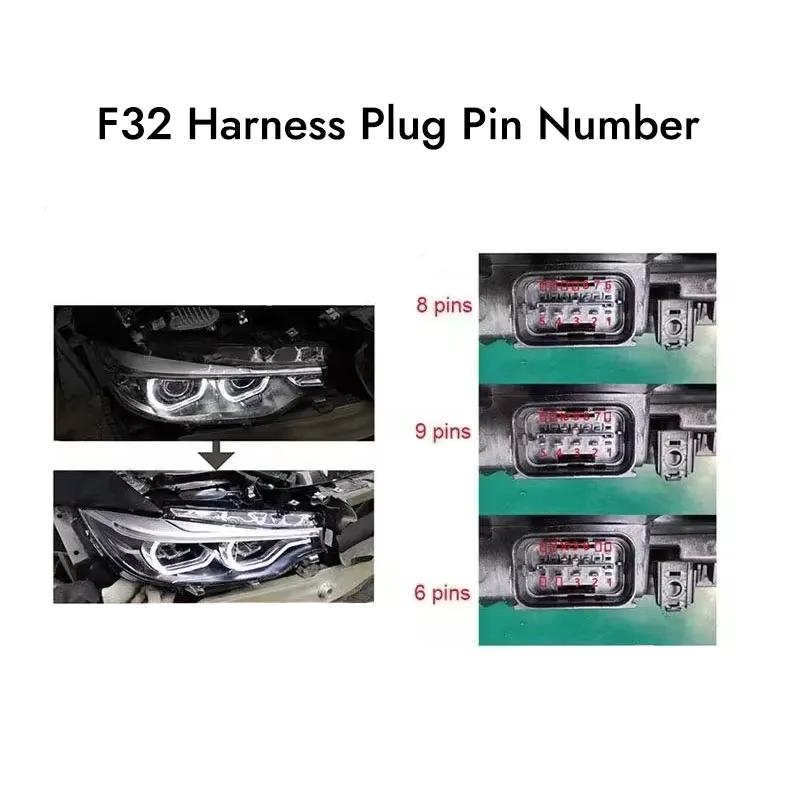

Exact fitment & pin guide
Platforms: F32 Coupe, F33 Convertible, F36 Gran Coupé.
- LED (6-pin) — F32/F33/F36 approx. 2014–2020, both pre-LCI and LCI, with 5A2 LED (non-adaptive) or 552 Adaptive LED. Order the 6-pin version.
- Pre-LCI Xenon non-adaptive (8-pin) — F32/F33/F36 approx. 2013–2016 with 522 Xenon. Order the 8-pin version.
- Pre-LCI Adaptive Xenon (9-pin) — F32/F33/F36 approx. 2013–2016 with 524 Adaptive Xenon (AHL/AFS). Order the 9-pin version.
Build date & VO/SA codes help: 522 = 8-pin, 524 = 9-pin, 5A2/552 = 6-pin. The headlight connector is a 12-position housing with 6/8/9 pins populated depending on variant.
In the box
- 1 × Left (driver) LED headlight
- 1 × Right (passenger) LED headlight
- User / quick install guide
Install & wiring
- Remove OE assemblies using factory mounting points.
- Match connector style (6-pin LCI, 8-pin, or 9-pin pre-LCI) and connect to the OE harness.
- Power on to verify low/high, DRL color mode (white ↔ yellow), and turn signals; aim beams with built-in adjusters.
Note: Intended for retrofit/upgrade at 12 V. Professional installation recommended.
Tech specs
| Optics | Full LED with bi-LED projectors; DRL white/yellow selectable; LED amber turn |
|---|---|
| Voltage / Power | 12 V / ~36 W |
| Luminous flux | ~6000 lm (typ.) |
| Color temperature | ~6000 K (white mode) / ~3000 K (yellow DRL) |
| Certification | E-mark |
| Housing / Lens | ABS + aluminum housing / PMMA lens elements |
| Shipping weight | ≈ 11 kg (pair) |
| Box size | ≈ 47 × 40 × 33 cm (pair) |
| Warranty | 1 year from delivery date |
OEM references
63117377843, 63117377844, 63117377851, 63117377852, 63117377853, 63117377854, 63117377855, 63117377856, 63117377849, 63117377850, 63117478155, 63117478156, 63117478157, 63117478158, 63117478159, 63117478160.
FAQs
Do I need coding? Typically no on like-for-like connector versions. Some retrofits may require coding depending on vehicle options.
Can I run the DRL in yellow all the time? Yes—use the quick toggle to select yellow DRL (selective yellow) and it will remain until you switch back to white.
Bulb interface “D2H” listed? Units are LED-based; D2H appears in some retrofit notes. No external bulbs are required.
Which connector do I have? Check your VO/SA code and build date: 522 (8-pin), 524 (9-pin), 5A2/552 (6-pin).
