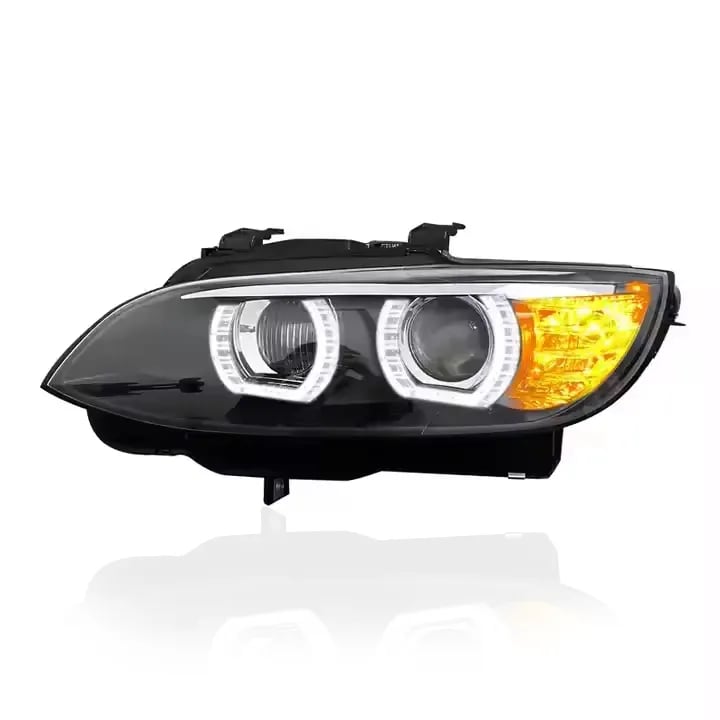

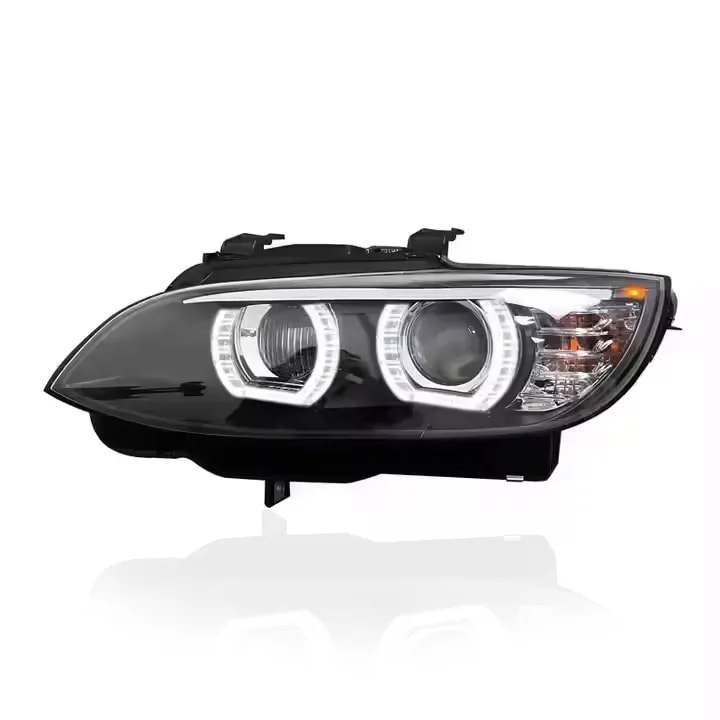

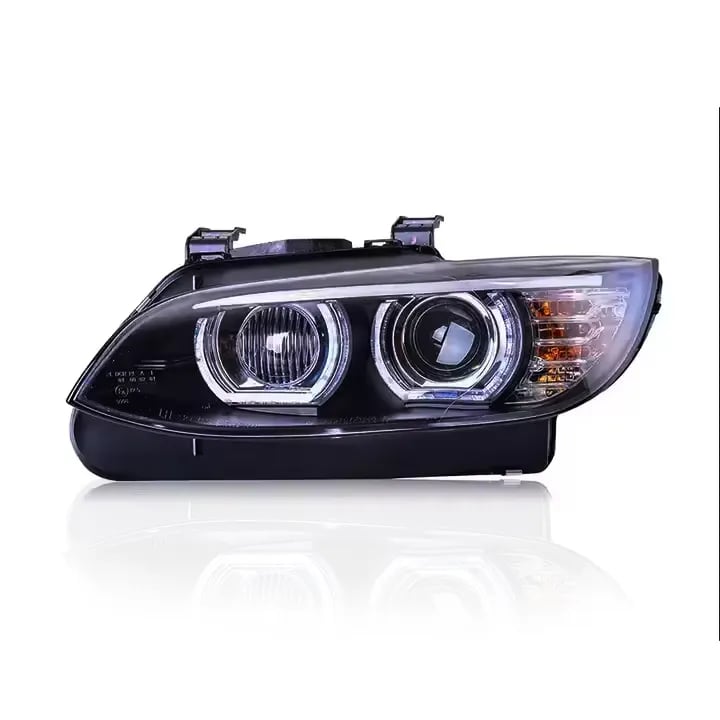

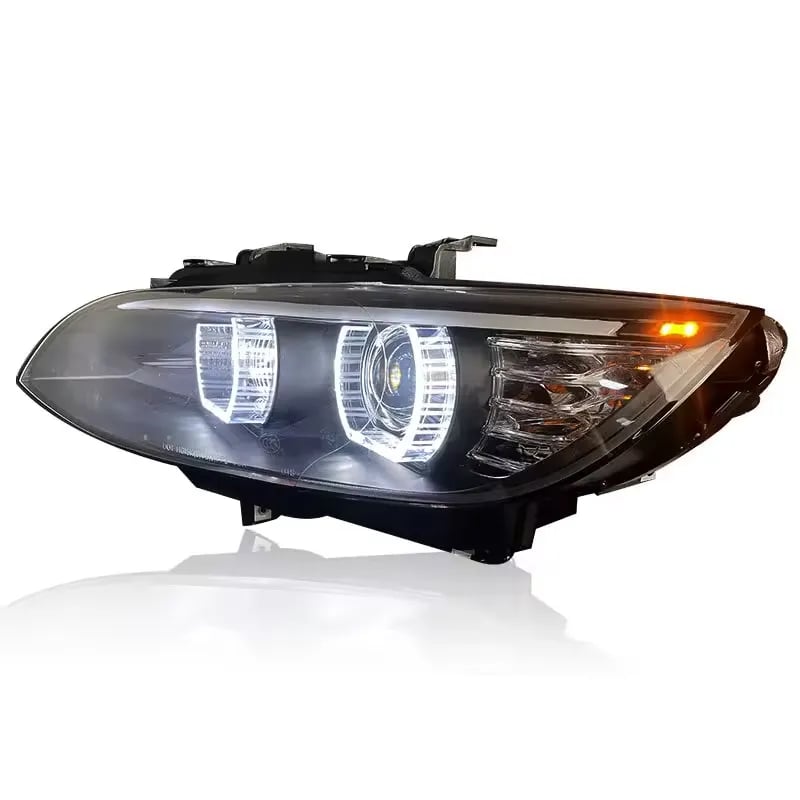

Angel Eyes LED Projector Headlights — BMW E92/E93 & M3
OEM+ Halo Ring Design with Bi-LED Projectors — Xenon Compatible — Pre-LCI & LCI — 2007–2013
BMW E92 Coupe • E93 Convertible • E92 M3 • 328i • 335i • Xenon Non-Adaptive & Adaptive (AFS) • Pre-LCI & LCI • 2007–2013

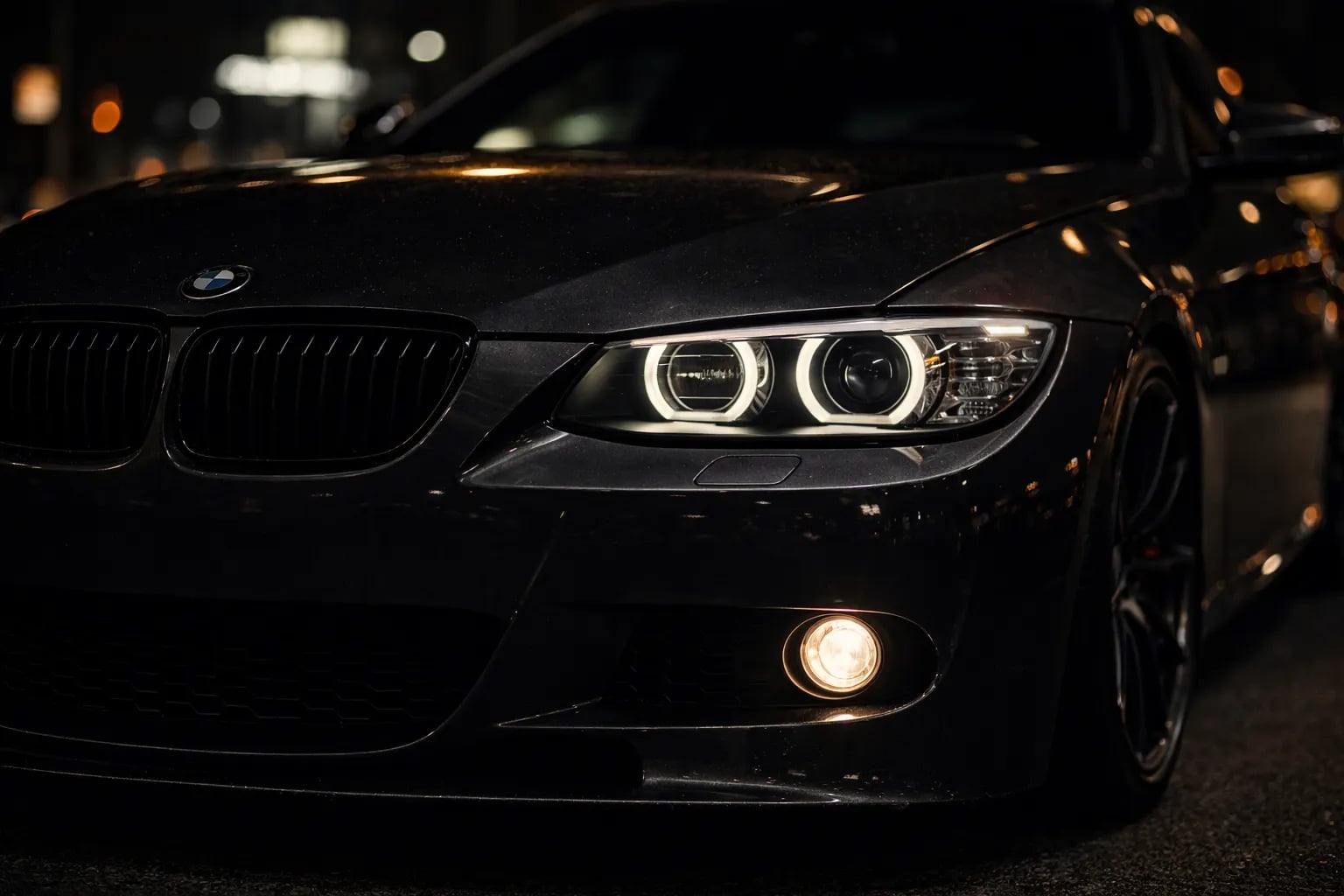

The angel eye is the single most recognizable element in BMW's design language. It defined the brand's face for two decades, and on the E92 — particularly the M3 — it remains the detail that tells you what you're looking at before anything else does.
These headlights preserve that identity and rebuild everything behind it. Bi-LED projectors replace your factory xenon optics. The halo rings are LED-driven, sharper and more uniform than the original incandescent rings. The housing, the optics, the beam pattern — all new. The character of the car — unchanged.
Compatible with factory xenon cars — both non-adaptive and adaptive (AFS). Integrated auto-leveling motor included on every unit. High Beam Assist (5AC) works if your car has it — no changes needed.
Does your E92 have Adaptive (AFS) headlights?
Look through the lens of your current headlight housing. Non-adaptive xenon headlights have one projector and one reflector bowl side by side. Adaptive (AFS) headlights have two projectors. You can also check by turning the steering wheel with the engine running and headlights on — if the beams swivel with the wheel, you have AFS.
Either way, you're covered. We manufacture a dedicated version for each xenon harness — standard xenon and xenon AFS. Both are plug-and-play with no coding required.
Step 1 — Select Your Factory Headlight Type
The internal electronics are configured specifically for your harness. Select the version that matches your current headlights.

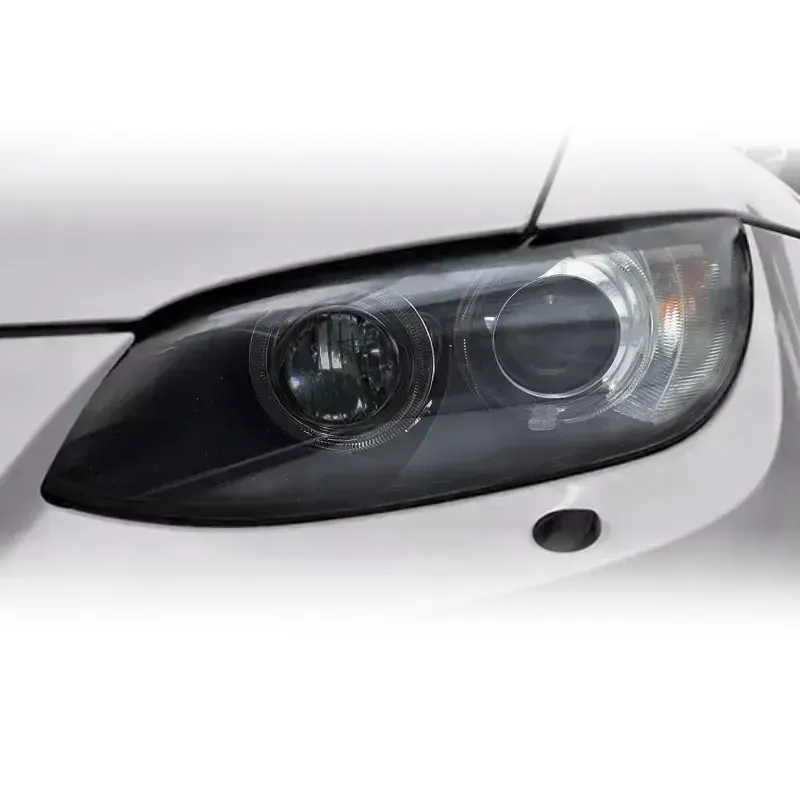

Non-Adaptive Xenon
Pre-LCI & LCI (2007–2013)
One projector + one reflector in the housing. Plug-and-play. No coding.

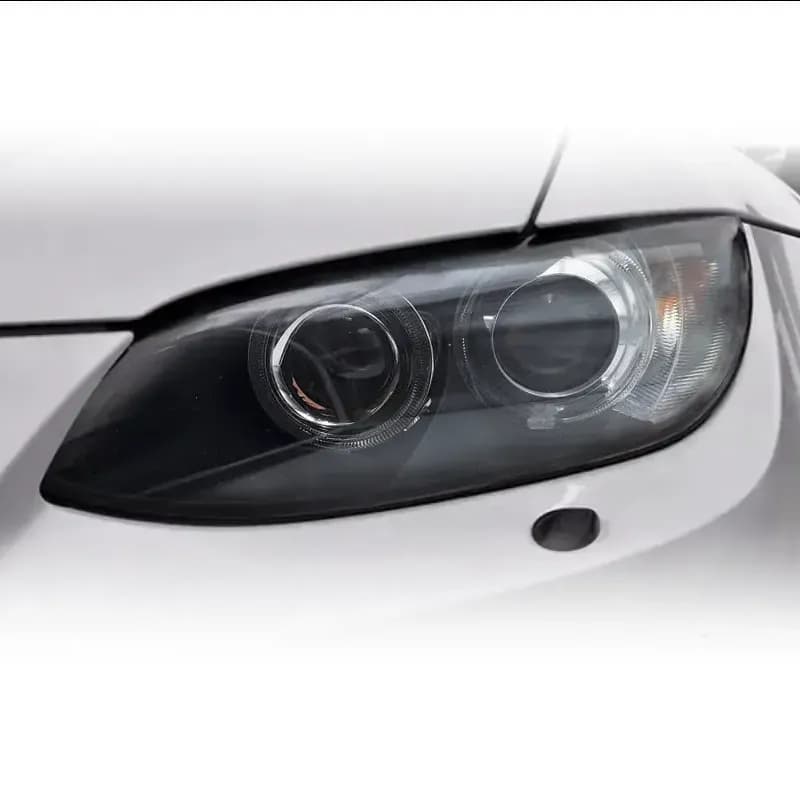

Adaptive Xenon (AFS)
Pre-LCI & LCI (2007–2013)
Two projectors in the housing. Plug-and-play. No coding.
Not sure which version you need?
Send us your VIN and we'll confirm your exact headlight configuration. Contact us here →
How These Are Built
Two Xenon Variants — One Correct Fit
The E92 xenon platform splits into two distinct CAN-bus configurations — standard xenon and adaptive bi-xenon (AFS) — and each carries different diagnostic expectations on the bus. We manufacture a dedicated version for each: correct connector, correct internal electronics, correct response to the car's self-checks. The car sees what it expects to see.
Ships Complete — Nothing to Transfer
Every assembly includes all LED drivers, projector modules, and halo ring electronics pre-installed and configured. No ballasts to move, no bulbs to source, no ignitors to carry over. Your factory headlights stay intact.
Bi-LED Projectors with Auto-Leveling
A single bi-LED projector handles both low and high beam — a sharp cutoff line on low, full output on high, with wide and even coverage on both. The integrated auto-leveling motor adjusts beam height based on vehicle load, controlled through the same leveling circuit your factory headlights used. No separate leveling module required.
LED Halo Rings
The angel eye rings are LED-driven — sharper, more uniform, and longer-lasting than the original incandescent rings. The same circular geometry, rendered with precision that the factory rings couldn't achieve at this price point fifteen years ago.
Sealed Against Water Intrusion
Water intrusion into the headlight housing is one of the E92 platform's most expensive problems — particularly on AFS cars, where moisture shorts out the adaptive module and stepper motor. ABS housings with PMMA lenses, sealed at every joint and bench-tested before shipping.
High Beam Assist (5AC) Compatible
If your E92 came with the High Beam Assist option (5AC), it works with these headlights — Pre-LCI and LCI, both xenon variants. The camera system reads traffic and toggles the high beam circuit the same way it always did. No wiring changes, no coding, no workarounds.
Installation
A straightforward headlight swap requiring front bumper removal — standard on the E92 platform. No wiring modifications, no coding on any version. Allow 2–3 hours.
- Remove the front bumper to access the headlight mounting bolts.
- Unbolt the factory headlights and disconnect the main harness plug.
- Plug the new headlight into your factory harness.
- Test before reassembly — verify low beam, high beam, halo rings, and indicators.
- Reinstall the bumper, align beam height using the integrated adjusters.
Frequently Asked Questions
Yes. The E92 M3 shares the same headlight mounting points and harness as the standard E92 Coupe. Select the non-adaptive or adaptive version to match your M3's factory setup.
Yes. The E92 Coupe and E93 Convertible share identical headlight geometry and connectors.
No. We manufacture a dedicated AFS-compatible version with internal electronics configured to satisfy the E92's CAN-bus diagnostic checks. The physical AFS swiveling is replaced by a fixed, wide-angle bi-LED projector beam pattern — the car will not flag any faults.
This is one of the most common reasons E92 owners upgrade. Factory adaptive headlights are prone to water intrusion that shorts out the AFS control module, and stepper motor failures that trigger a persistent dashboard warning. These assemblies eliminate the AFS failure points entirely while preserving the angel eye identity that belongs on the car.
Yes. High Beam Assist was an optional fitment on both Pre-LCI and LCI E92 xenon cars — non-adaptive and AFS alike. If your car has it, the camera system continues to control the high beam circuit through the same signal path. Nothing changes on the car's end.
The halo rings illuminate as the primary signature light whenever the headlights are active. Whether they operate as dedicated DRLs depends on your vehicle's factory lighting configuration.
Nothing. Every component is pre-installed — LED drivers, bi-LED projector modules, halo ring electronics, leveling motor. Your factory headlights stay fully intact.
Yes, if you're comfortable removing the front bumper on the E92. Standard hand tools and about 2–3 hours. No lift required.
Technical Specifications
| Light Source | Bi-LED Projectors (Low + High Beam) |
|---|---|
| DRL / Signature | LED Angel Eyes (Halo Rings) |
| Auto-Leveling | Integrated leveling motor |
| High Beam Assist | Compatible (5AC option) — Pre-LCI & LCI |
| Operating Voltage | 12V DC |
| Housing Material | ABS + PMMA Lens |
| Compatibility | E92 Coupe · E93 Convertible · E92 M3 · Xenon Non-Adaptive & Adaptive (AFS) · Pre-LCI & LCI · 2007–2013 |
| Sold As | Pair (Left + Right) |
| Warranty | 2 Years |
OEM Cross-Reference Numbers
| Pre-LCI Non-Adaptive Xenon 2007–2010 |
L: 63117182517 R: 63117182518 |
|---|---|
| Pre-LCI Adaptive Xenon (AFS) 2007–2010 |
L: 63117182507 R: 63117182508 |
| LCI Non-Adaptive Xenon 2010–2013 |
L: 63117273215 R: 63117273216 |
| LCI Adaptive Xenon (AFS) 2010–2013 |
L: 63117273211 R: 63117273212 |
