Angel Eyes Halo LED Projector Headlights — BMW 3 Series (E90/E91)
OEM+ Halo Ring Design with Full Bi-LED Projectors — Halogen, Xenon & AFS/AHL — Pre-LCI & LCI — 2005–2012
BMW E90 Sedan • E91 Touring • 320i • 325i • 328i • 330i • 335i • Pre-LCI & LCI • 2005–2012

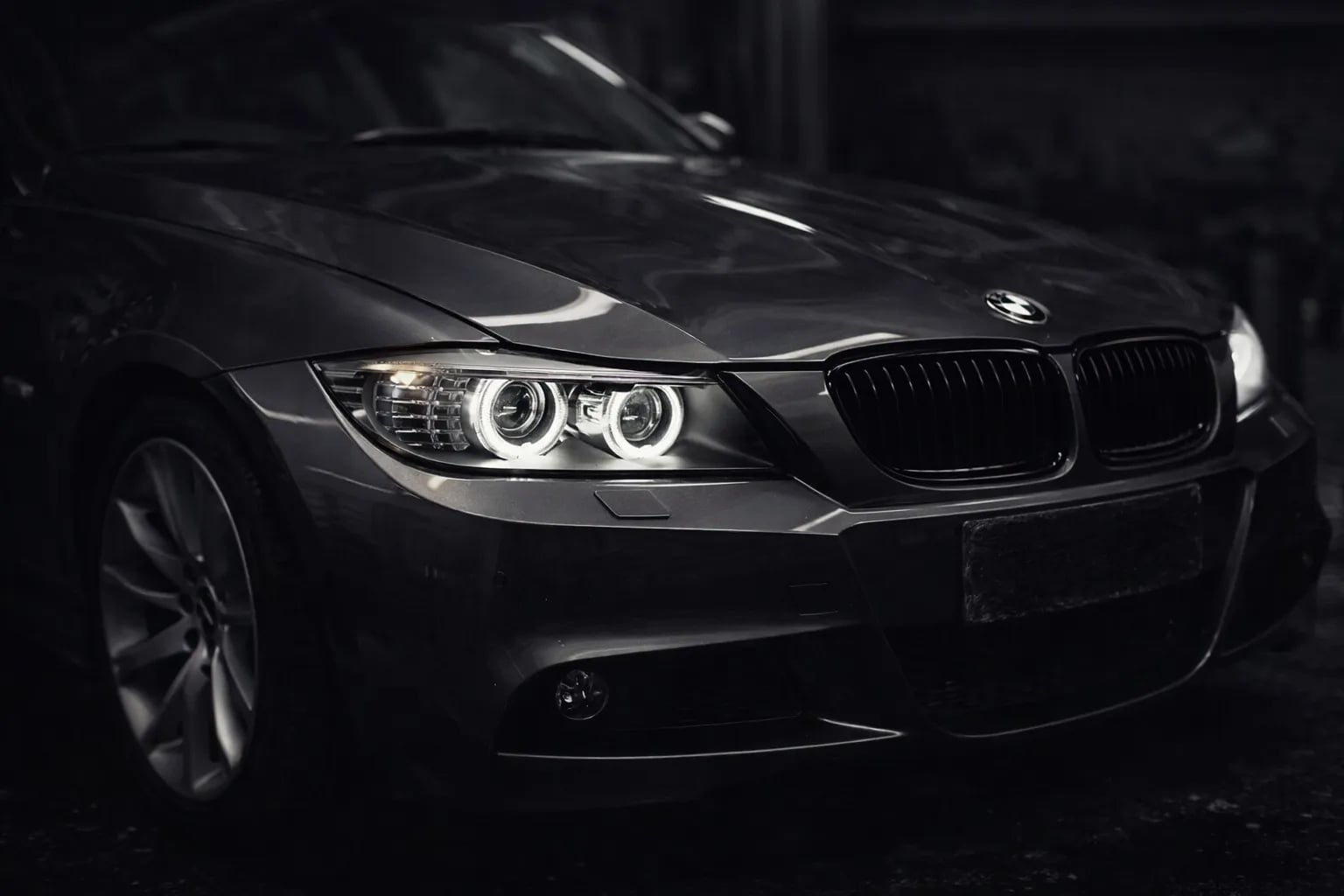

The E90 generation sold more than any 3 Series before it — and the angel eye is what made every one of them immediately recognizable as a BMW. It's the detail that survived every trend, every body style, every engine option. It's the face of the car.

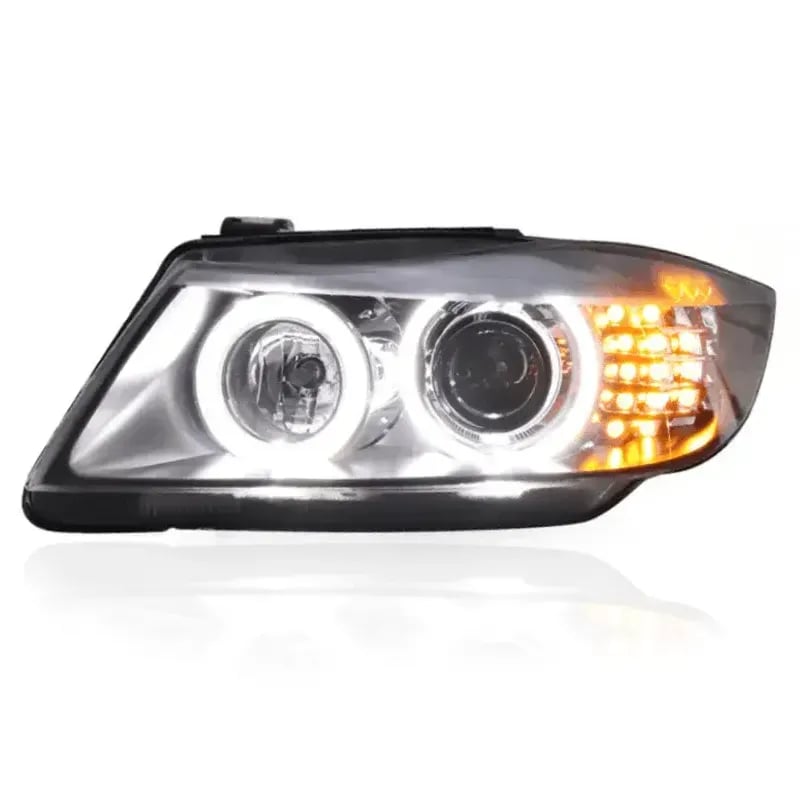

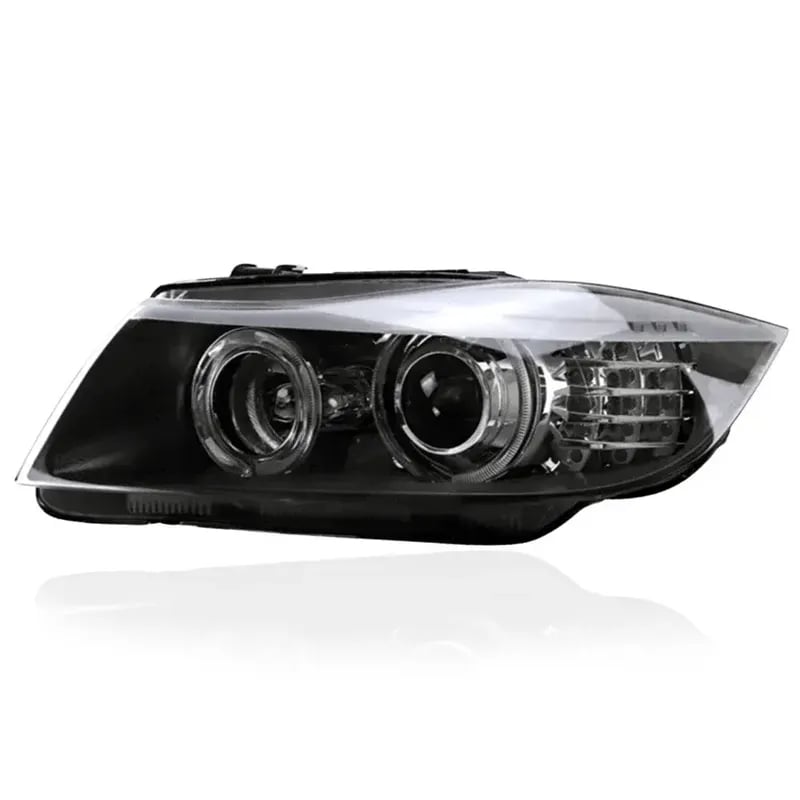

These headlights preserve that identity and rebuild everything behind it. Bi-LED projectors replace the factory halogen reflectors or aging xenon optics — separate LED elements for low and high beam, with a sharp cutoff line and wide, even coverage. The halo rings are LED-driven — sharper, more uniform, and longer-lasting than the original incandescent rings. The housing, the optics, the beam pattern — all new. The character — intact.
Compatible with every factory headlight on the E90 platform — halogen, bi-xenon (option S522A), and adaptive AHL/AFS xenon (option S524A). Just confirm halogen or xenon at checkout — we handle the rest, including AFS/AHL and High Beam Assist (5AC) compatibility. Every version is plug-and-play with zero coding. Every LED driver and control module comes pre-installed.
Auto-leveling integrated on all xenon variants. High Beam Assist (5AC) supported where factory-fitted. Manual thumbwheel adjuster supported on halogen variants.
Step 1 — Halogen or Xenon?
That's the only decision. We manufacture a dedicated version for each harness type — the internal electronics are pre-configured for your car. If you have adaptive AHL or AFS xenon, the standard xenon version covers you.

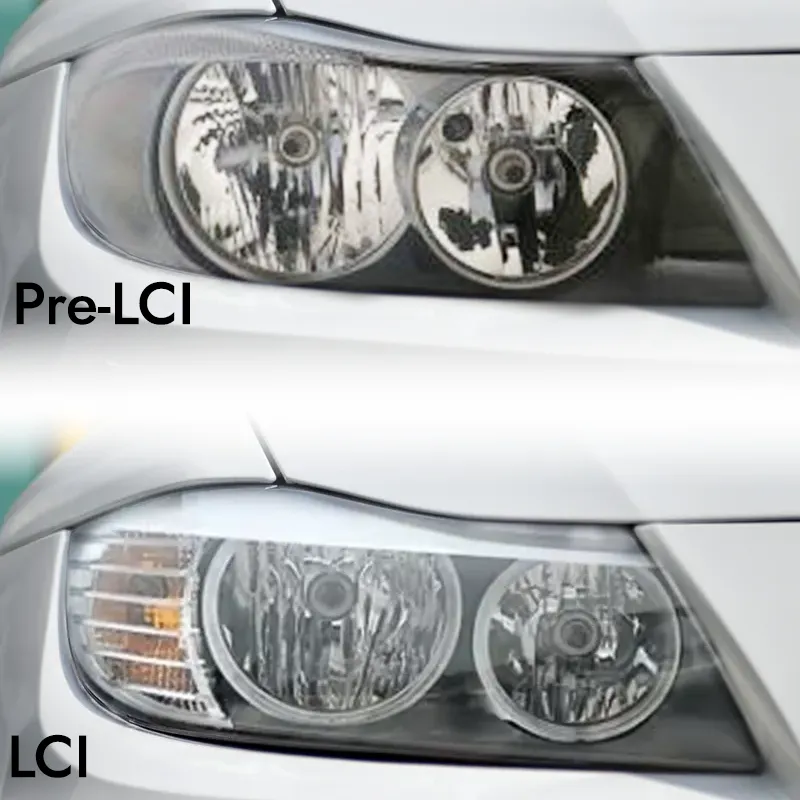

Factory Halogen
Pre-LCI (2005–2008) & LCI (2008–2012)
Halogen reflector housing. Plug-and-play. No coding. Manual thumbwheel adjuster supported.

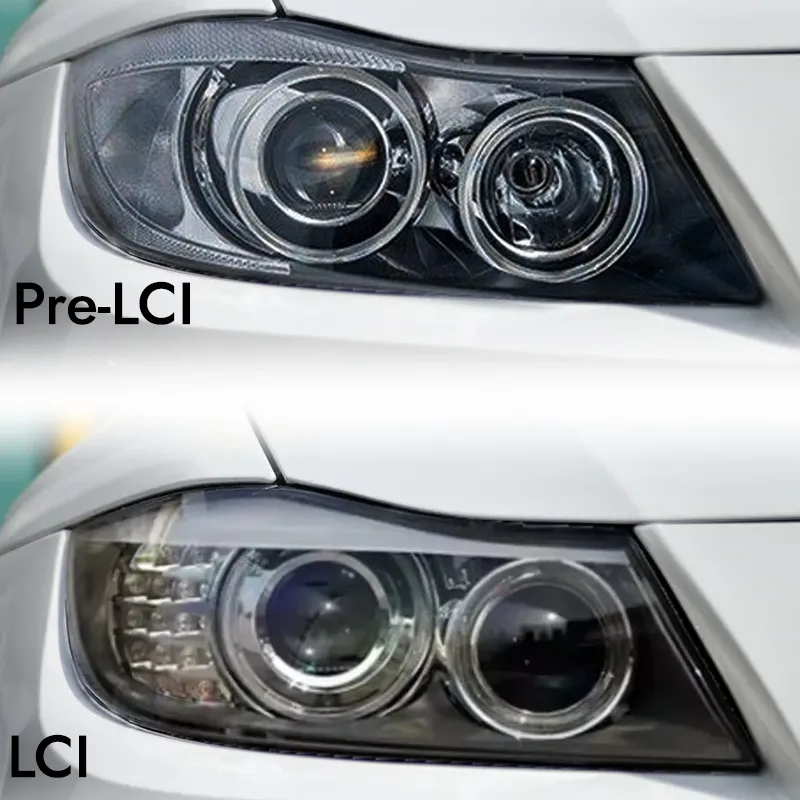

Factory Xenon (incl. AHL/AFS)
Pre-LCI (2005–2008) & LCI (2008–2012)
Bi-Xenon (S522A) or Adaptive AHL (S524A). Plug-and-play. No coding. Auto-leveling & HBA (5AC) supported.
Not sure what your car has?
Send us your VIN and we'll confirm in minutes. Contact us here →
How These Are Built
Every E90 Configuration — Fully Pre-Configured
Halogen, bi-xenon (S522A), adaptive AHL/AFS xenon (S524A) — every factory headlight configuration on the E90 platform is supported. The internal electronics — including CAN-bus interface, AFS motor control, and High Beam Assist (5AC) logic — are pre-configured for your specific harness. Select halogen or xenon at checkout. No coding, no error codes, no adapters.
Ships Complete — Nothing to Transfer
Every assembly includes all LED drivers, projector modules, and halo ring electronics pre-installed and configured. No ballasts to move, no D1S bulbs to source, no ignitors to carry over. Your factory headlights stay intact.

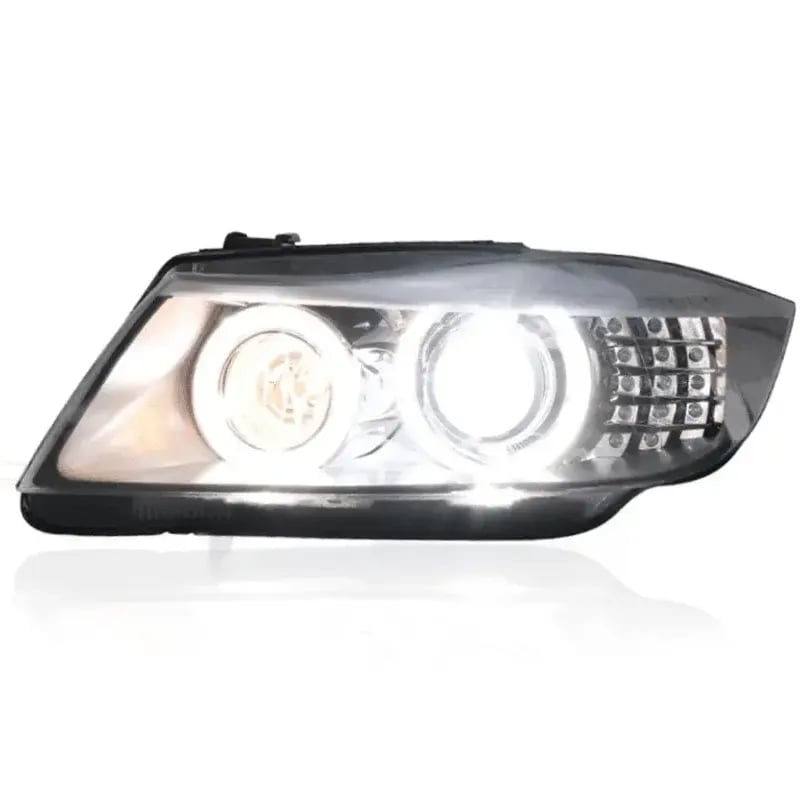

Bi-LED Projectors — Auto-Leveling & High Beam Assist
Separate LED elements for low and high beam in a single projector unit — what BMW calls bi-LED in its own lineup. Sharp cutoff line, wide even coverage, no dark spots.
Xenon variants (S522A / S524A): Integrated leveling motor plugs directly into your factory auto-leveling harness and adjusts beam height based on vehicle load — no separate controller needed. High Beam Assist (5AC) is fully supported: Pre-LCI xenon cars built from approximately 09/2007 onward, and all LCI xenon cars, are compatible where the factory camera and control unit are present.
Halogen variants: Electric auto-leveling was not part of the factory halogen setup on the E90 — these headlights match that, with the manual thumbwheel adjuster fully functional. High Beam Assist was not offered from the factory on halogen E90s and is not applicable here.

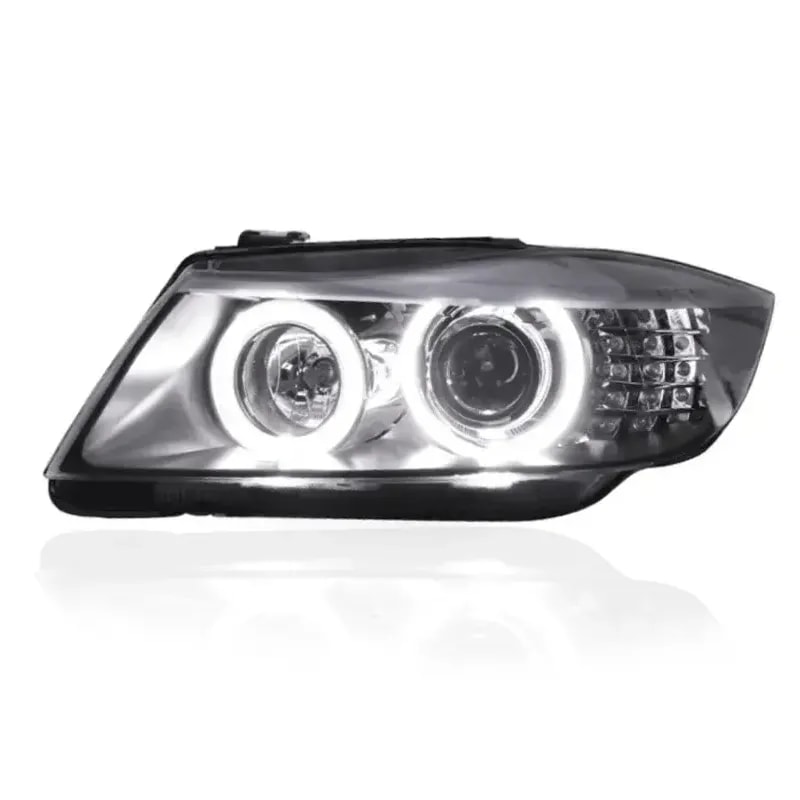

LED Halo Rings
The angel eye rings are LED-driven — sharper, more uniform, and longer-lasting than the original incandescent rings. The same circular geometry, rendered with a precision the factory rings couldn't achieve at this price point nearly twenty years ago.
Bench-Tested Before Shipping
ABS housing with PMMA lenses, sealed against moisture at every joint. Every pair goes through a full function check — projectors, halo rings, leveling motor, CAN-bus communication — before it leaves the bench. Two years of coverage from delivery date.
Installation
A straightforward headlight swap requiring front bumper removal — standard on the E90 platform. No wiring modifications, no coding on any version. Allow 2–3 hours.
- Remove the front bumper to access the headlight mounting bolts.
- Unbolt the factory headlights and disconnect the main harness plug.
- Plug the new headlight into your factory harness.
- Test before reassembly — verify low beam, high beam, halo rings, and indicators.
- Reinstall the bumper, align beam height using the integrated adjusters.
Frequently Asked Questions
Yes. The E90 Sedan and E91 Touring share identical headlight mounting points and connectors.
Yes. We manufacture a dedicated halogen-harness version that plugs directly into your factory wiring. You go from halogen reflectors to full bi-LED projectors with LED halo rings — no adapters, no coding, no rewiring. The manual thumbwheel adjuster remains fully functional; the E90 halogen platform did not have electric auto-leveling from the factory, and these headlights match that correctly.
Not at all. The xenon version covers standard bi-xenon and adaptive AHL/AFS xenon. The internal electronics handle the AFS harness and CAN-bus natively — no coding, no error codes. Just select "xenon" at checkout.
Yes, on xenon variants where High Beam Assist was factory-fitted. The high beam circuit is fully compatible with the factory camera and control unit. On Pre-LCI xenon cars, HBA was available as an option from approximately 09/2007 build date onward. On LCI xenon cars, it was available throughout the production run. High Beam Assist was not offered on factory halogen E90s and is not applicable to the halogen version.
Yes, on xenon variants. The integrated leveling motor connects directly to your factory auto-leveling harness and adjusts beam height based on vehicle load — no separate controller, no coding. Halogen E90s used a manual thumbwheel adjuster from the factory; that adjuster remains fully functional on the halogen version.
The halo rings illuminate as the primary signature light whenever the headlights are active. Whether they operate as dedicated DRLs depends on your vehicle's factory lighting configuration.
Nothing. Every component is pre-installed — LED drivers, projector modules, halo ring electronics, leveling motor. Your factory headlights stay fully intact.
Yes. We manufacture versions for both Pre-LCI (2005–2008) and LCI (2008–2012). The correct version is determined by your model year and factory headlight type at checkout.
Yes, if you're comfortable removing the front bumper on the E90. Standard hand tools and about 2–3 hours. No lift required.
Technical Specifications
| Light Source | Bi-LED Projectors (Low + High Beam) |
|---|---|
| DRL / Signature | LED Angel Eyes (Halo Rings) |
| Auto-Leveling | Integrated leveling motor (xenon variants) · Manual thumbwheel (halogen variants) |
| High Beam Assist (5AC) | Supported on xenon variants where factory-fitted · Pre-LCI from ~09/2007 build · LCI throughout |
| Operating Voltage | 12V DC |
| Housing Material | ABS + PMMA Lens |
| Compatibility | E90 Sedan · E91 Touring · Halogen, Bi-Xenon (S522A) & AHL/AFS Xenon (S524A) · Pre-LCI & LCI · 2005–2012 |
| Sold As | Pair (Left + Right) |
| Warranty | 2 Years |
OEM Cross-Reference Numbers
| Pre-LCI Halogen 2005–2008 |
EU L: 63116942721 / 63116942723 / 63116942747 EU R: 63116942722 / 63116942724 / 63116942748 US L: 63116942725 US R: 63116942726 |
|---|---|
| Pre-LCI Bi-Xenon S522A · 2005–2008 |
EU L: 63117161667 / 63117161673 EU R: 63117161668 / 63117161674 US L: 63117161665 US R: 63117161666 |
| Pre-LCI AHL Xenon S524A · 2005–2008 |
EU L: 63117161671 / 63117162081 EU R: 63117161672 / 63117162082 US L: 63117161669 US R: 63117161670 |
| LCI Halogen 2008–2012 |
EU L: 63117202573 / 63117202575 / 63117202581 EU R: 63117202574 / 63117202576 / 63117202582 US L: 63117202577 US R: 63117202578 |
| LCI Bi-Xenon S522A · 2008–2012 |
EU L: 63117240247 / 63117240249 EU R: 63117240248 / 63117240250 US L: 63117240245 US R: 63117240246 |
| LCI AHL Xenon S524A · 2008–2012 |
EU L: 63117240263 / 63117240265 EU R: 63117240264 / 63117240266 US L: 63117240261 US R: 63117240262 |
