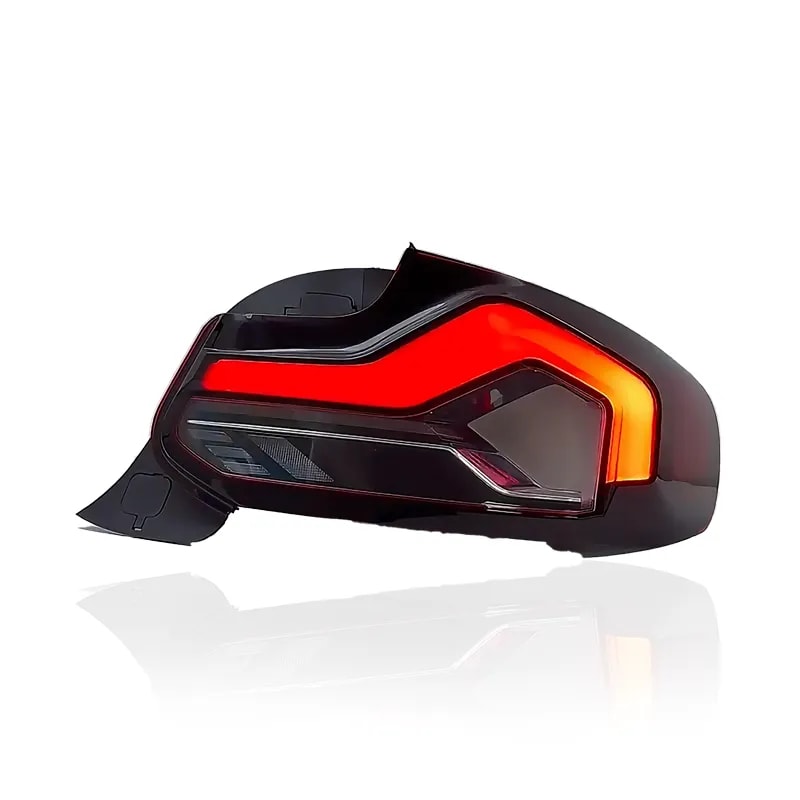

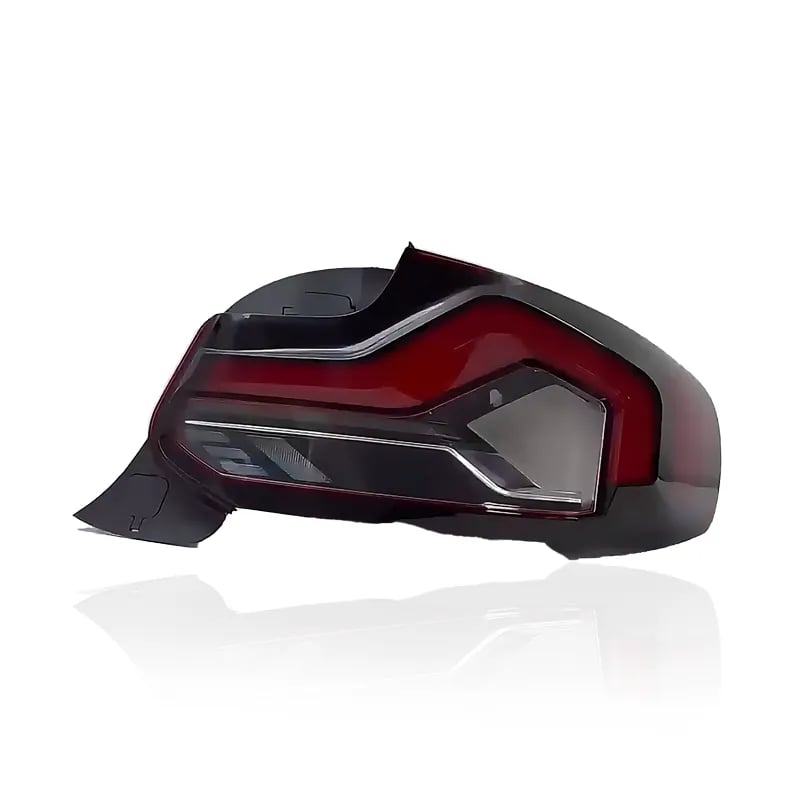

G87-Style LED Tail Lights — BMW 2 Series (F22/F23) & M2 (F87)
Modern Current-Generation M2 Rear Signature — Fits Pre-LCI & LCI — EU & US — 2014–2021
BMW F22 Coupe • F23 Convertible • F87 M2 • 220i • 228i • 230i • M235i • M240i • Pre-LCI & LCI • 2014–2021
The G87 M2 gave the 2 Series a rear end that finally matched the car's attitude — sharp, horizontal, unmistakably current. These tail lights bring that modern signature back to the F22 generation that started it. Where the factory lights now look their age, the G87-style design pulls the whole rear forward a generation, on a car that was always close to right.
A single design that fits both pre-LCI and LCI cars, supplied as a left-and-right pair. The turn signals sweep in sequence and run amber for the European look. Plug-and-play on both EU and US market vehicles with zero coding — pre-LCI cars use an included plug-adapter, so there are no separate OEM connectors to buy and nothing to program.
Step 1 — Select Your Market
BMW uses different tail light wiring harnesses for EU and US market vehicles. Select the market your car was originally built for — not where it's currently registered.
EU Market
Your car was manufactured and originally sold for the European market.
US Market
Your car was originally built for the US market — even if it's now registered in Europe.
Not sure? Send us your VIN and we'll confirm.
Pre-LCI or LCI — not sure which you have?
Send us your VIN and we'll confirm fitment and the correct market version. Contact us here →
Engineered to Stay on the Car
Fits Pre-LCI & LCI — Zero Coding
One design fits the entire F22/F23/M2 run. LCI cars (2017–2021) plug straight in. Pre-LCI cars (2014–2017) use an included plug-adapter — no need to buy separate OEM connectors or pay for coding, which is what the factory LCI retrofit normally demands. Either way: plug in, test, drive.
Modern G87 Rear Signature

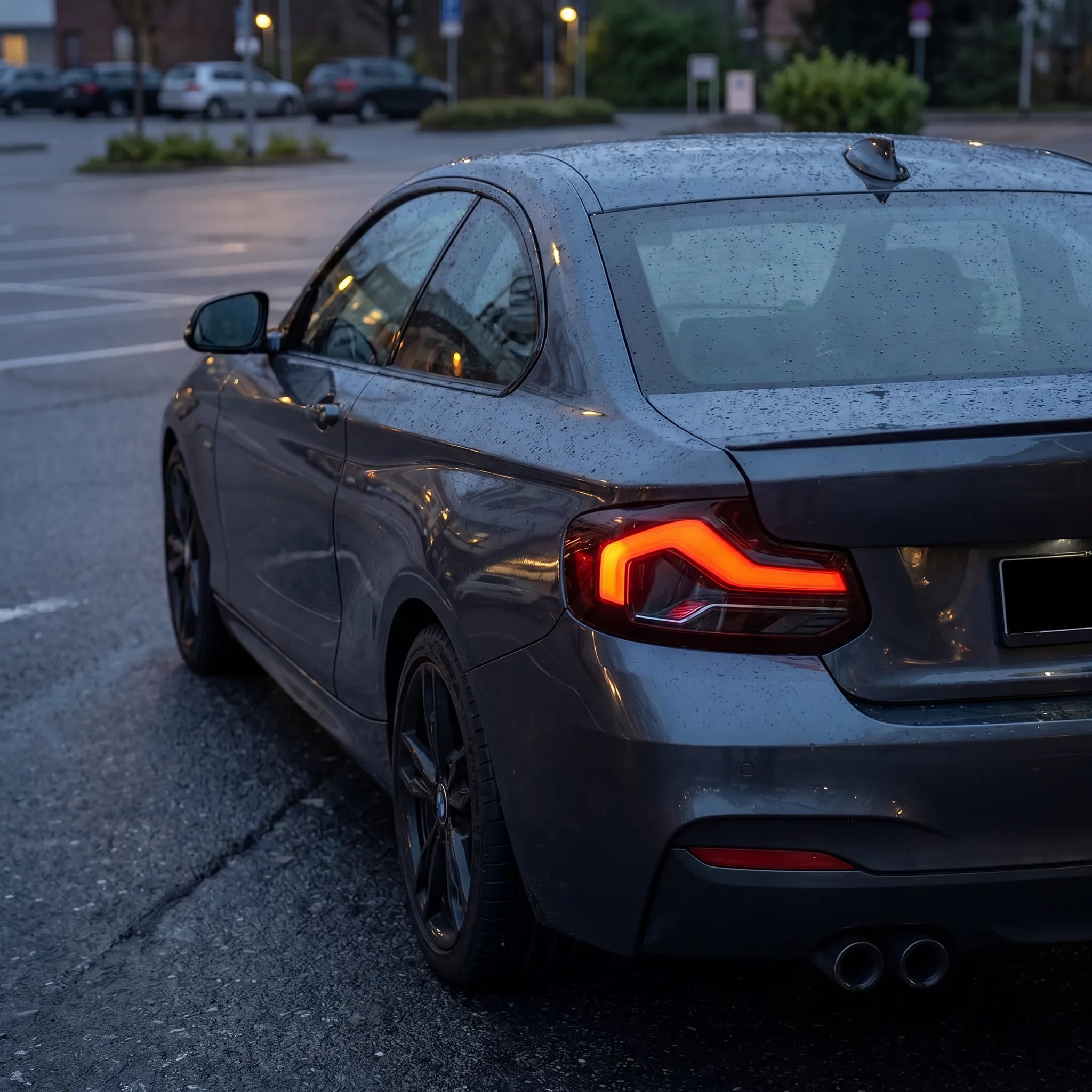

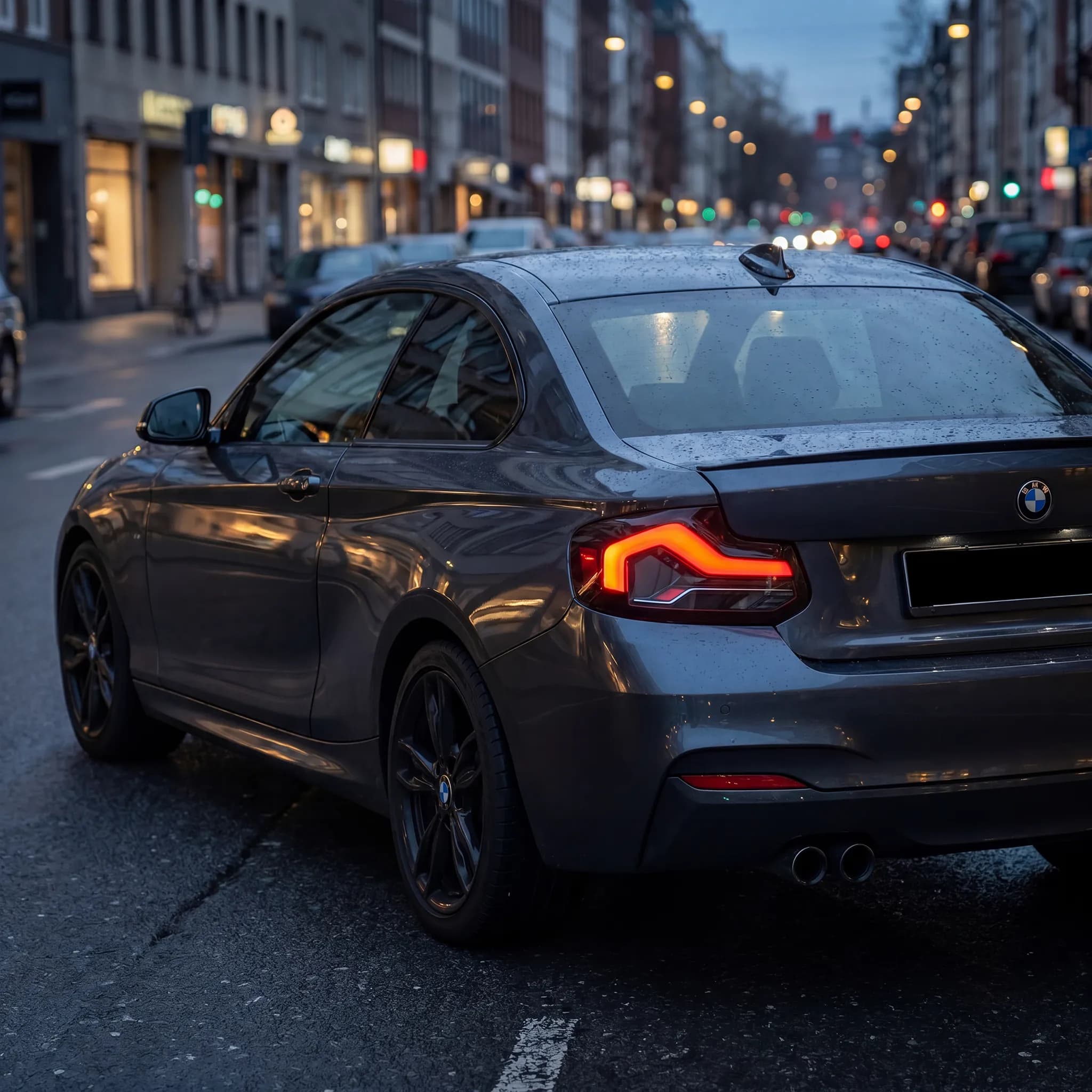

The horizontal light-bar layout and squared-off graphics replicate the current-generation G87 M2 — the rear-end design language that defines the newest 2 Series. It's the single biggest visual update you can make to the back of an F22.

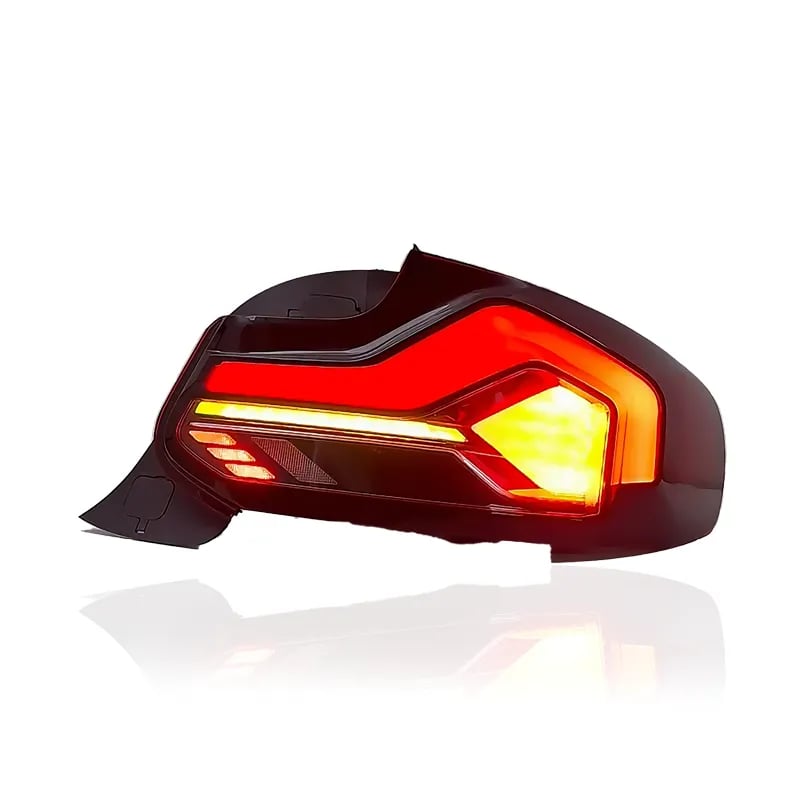

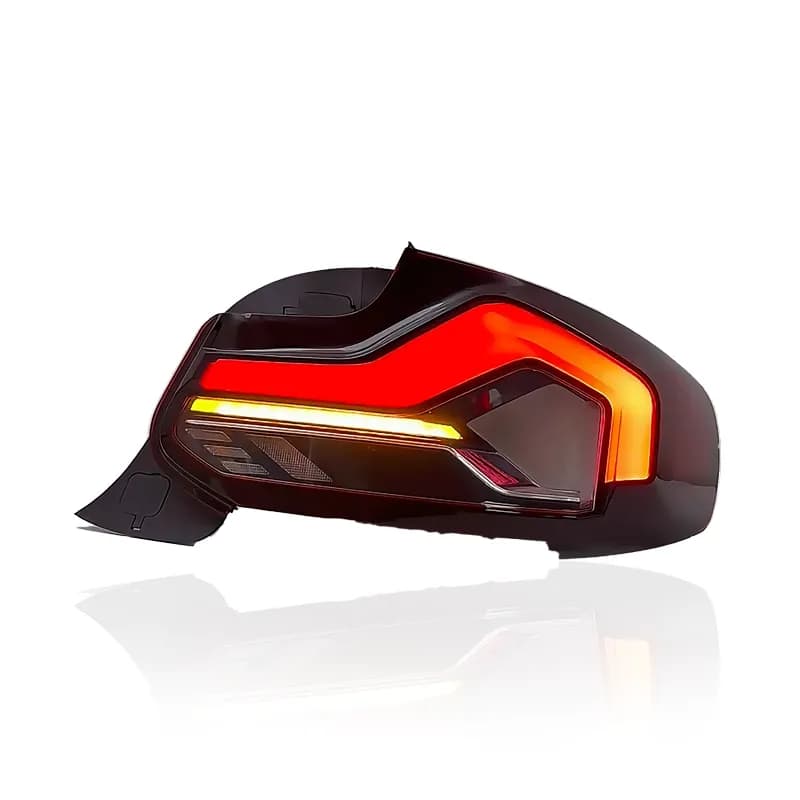

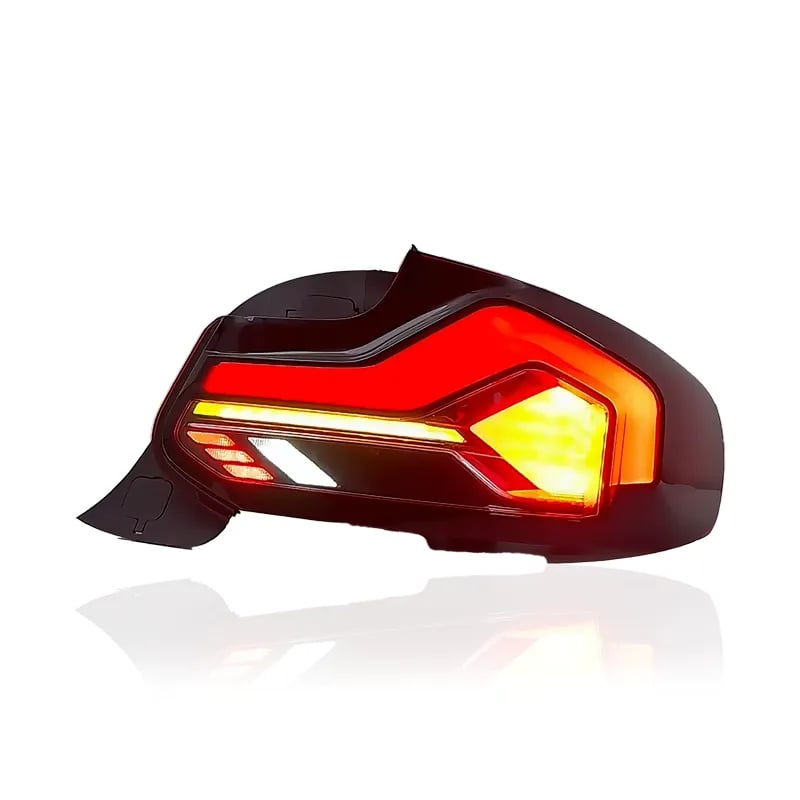

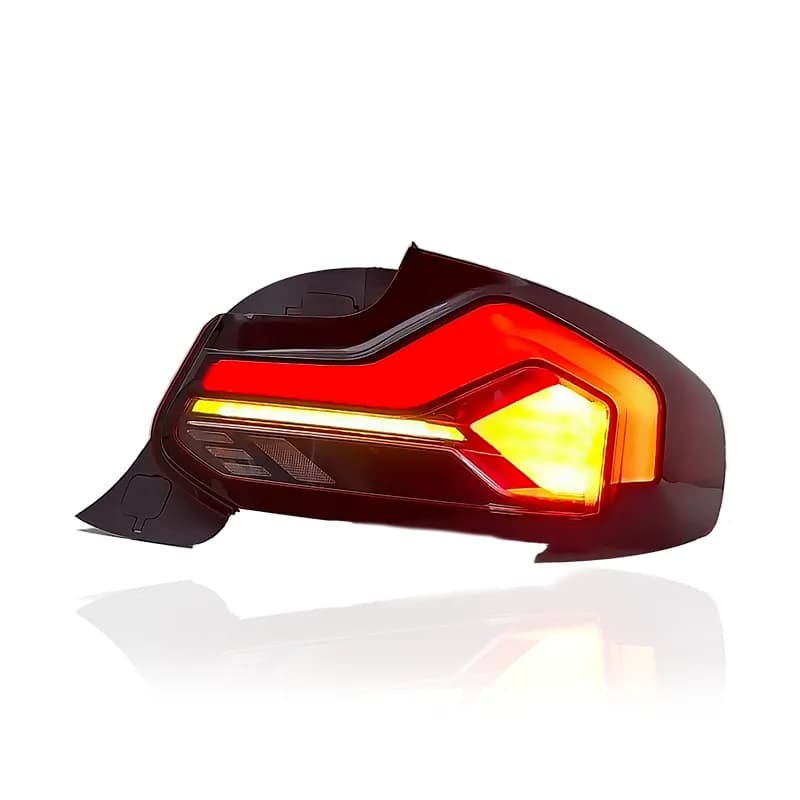

Sequential Sweeping Indicators
The turn signals animate in sequence and run amber, matching the European indicator look. On a US-spec car, that means swapping the factory red indicator for proper amber signaling at the same time.
Fits Coupe, Convertible & M2
The F22 Coupe, F23 Convertible, and F87 M2 share the same tail light mounting and connectors. This set fits all three — including M2 and M2 Competition.
Sealed Construction
ABS housings with PMMA lenses, sealed against moisture — directly addressing the melted-connector pins and water intrusion common on aging F22 factory units. Supplied as a matched left-and-right pair.
2-Year Warranty
Each pair is bench-tested before shipping. Two years of coverage from delivery date.
Installation
A straightforward tail light swap. No bumper removal, no wiring modifications. Allow 30–45 minutes.
- Open the trunk and remove the inner trim panels to access the tail light mounting hardware.
- Unbolt the factory tail lights and disconnect the harness plugs.
- Pre-LCI cars: Fit the included plug-adapter between the new tail light and your factory harness.
- Plug in the new G87-style units and mount using the factory hardware.
- Test before reassembly — verify running lights, brake lights, reverse lights, and indicators.
- Reinstall the trunk trim panels.
Frequently Asked Questions
Yes. One design covers the full 2014–2021 run. LCI cars (2017–2021) plug straight in. Pre-LCI cars (2014–2017) use the included plug-adapter — no separate OEM connectors to buy, no coding. This is the key advantage over the factory LCI retrofit, which requires purchasing BMW connectors per side and coding the car.
Yes. The F22 Coupe, F23 Convertible, and F87 M2 (including M2 Competition) all share the same tail light mounting points and connectors. This set fits all three.
Select US Market. The wiring harness matches your car's original build market, not where it's currently registered.
A matched pair of tail lights — left and right. One unit per side (the F22/F23/M2 uses a single tail light per side, not a separate inner section). Pre-LCI orders include the plug-adapter.
We offer three tail light styles for the F22. The GTS OLED-Style uses a layered 3D filament look; the CSL Laser-Style uses the ultra-thin laser-etched filament pattern from BMW's CSL models; and this G87-Style brings the modern current-generation M2 rear signature. All three share the same plug-and-play fitment and sequential indicators.
No. LCI cars are direct plug-and-play. Pre-LCI cars use the included adapter and still require no coding.
Yes. Tail light replacement on the F22 is accessible through the trunk interior with basic hand tools. About 30–45 minutes, no lift required.
Technical Specifications
| Light Source | Full LED |
|---|---|
| Design | G87-style — modern current-generation M2 rear signature |
| Turn Signals | Sequential sweeping (amber) |
| Housing Material | ABS + PMMA Lens |
| Market Compatibility | EU & US (select at checkout — dedicated version for each harness) |
| Generation Fitment | Pre-LCI (2014–2017, included adapter) & LCI (2017–2021, direct) |
| Vehicle Fitment | F22 Coupe · F23 Convertible · F87 M2 / M2 Competition |
| Coding | None required (either generation) |
| Sold As | Pair (Left + Right) · one unit per side |
| Warranty | 2 Years |
OEM Cross-Reference Numbers
| Pre-LCI EU · 2014–2017 | L: 63217295423 R: 63217295424 |
|---|---|
| Pre-LCI US · 2014–2017 | L: 63217295427 R: 63217295428 |
| LCI EU · 2017–2021 | L: 63217420991 R: 63217420992 |
| LCI Black Line EU · 2017–2021 | L: 63219491591 R: 63219491592 |
| LCI US · 2017–2021 | L: 63217420993 R: 63217420994 |
| LCI Black Line US · 2017–2021 | L: 63219491593 R: 63219491594 |
This list covers the most common OEM references for F22, F23, and F87 M2. Some market-specific part numbers may not be listed. If your part number isn't shown, send us your VIN and we'll confirm compatibility.
