Icon-Style Full LED Headlights — BMW 2 Series (F22/F23) & M2 (F87)
Full LED Conversion with Switchable White/Yellow DRL — M2-Inspired Icon Signature — Halogen, Xenon & LCI LED — 2014–2021
BMW F22 Coupe • F23 Convertible • F87 M2 • 220i • 228i • 230i • M235i • M240i • 2014–2021
The Icon Light signature is what gives the current BMW its instantly recognizable face — the hexagonal LED element that turned the headlight from a functional part into the car's identity. These headlights bring that look to the entire F22/F23 and M2 range, whether your car left the factory with halogen reflectors, xenon projectors, or the earlier LED units. It's the pre-LCI-to-LCI front-end transformation, done as a single direct-fit upgrade.
A complete conversion to full LED projectors with switchable White/Yellow DRL and the Icon-style hexagonal signature. Every LED driver and control module comes pre-installed — just confirm your factory headlight type at checkout. Adaptive xenon (AFS) cars are covered by the xenon version. Includes integrated auto-leveling.
Step 1 — Select Your Factory Headlights
We manufacture a dedicated version for each factory harness. Select the one that matches your car.

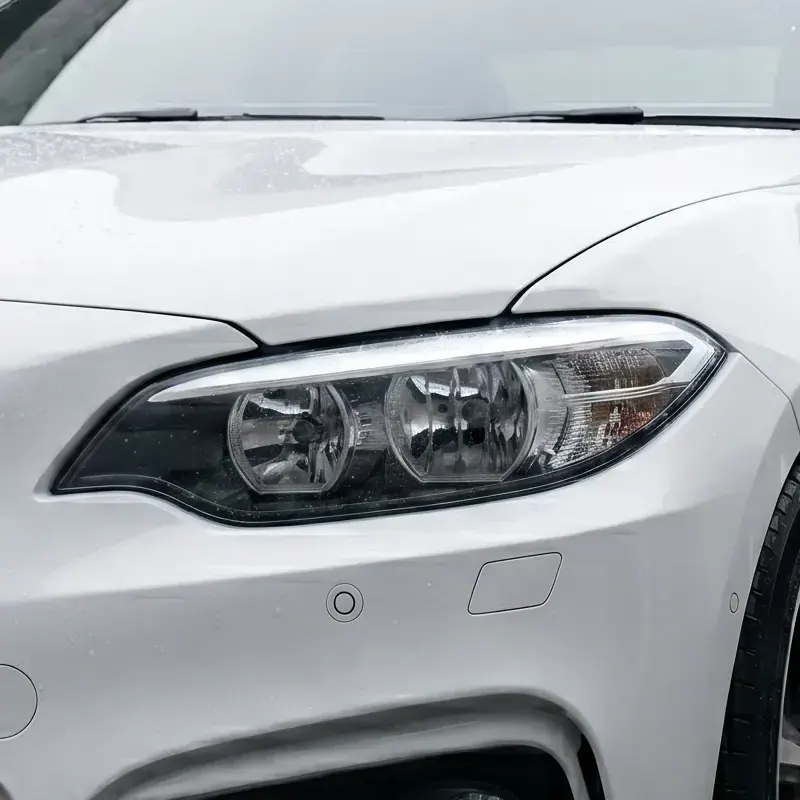

Halogen (Pre-LCI)
2014–2017
Halogen reflector housing. Plug-and-play. No coding.

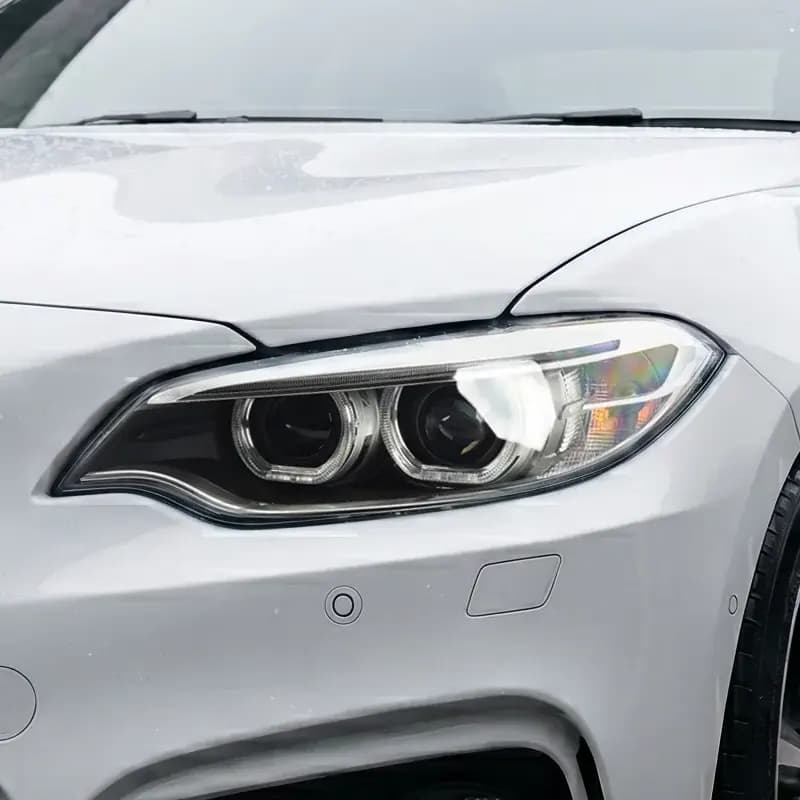

Xenon (Pre-LCI, incl. AFS)
2014–2017
Bi-xenon and adaptive xenon (AFS/AKL). Plug-and-play. No coding.

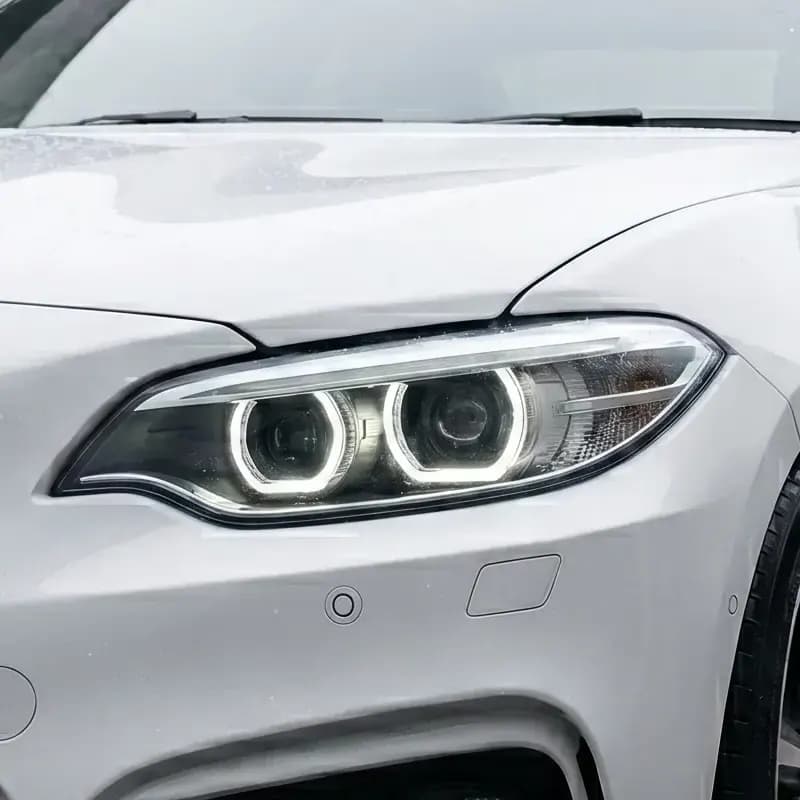

LED (LCI)
2017–2021
Factory non-adaptive LED. Direct harness match.
Pre-LCI to LCI conversion: If your car has halogen or xenon headlights, this is the upgrade that brings the modern Icon-style LED look to your front end — no bumper change required. The housing is shaped to fit your existing bumper directly.
Not sure what your car has?
Send us your VIN and we'll confirm your exact configuration. Contact us here →
Step 2 — Choose Your DRL
Both versions share the same Icon-style housing and LED projectors. The only difference is DRL color.

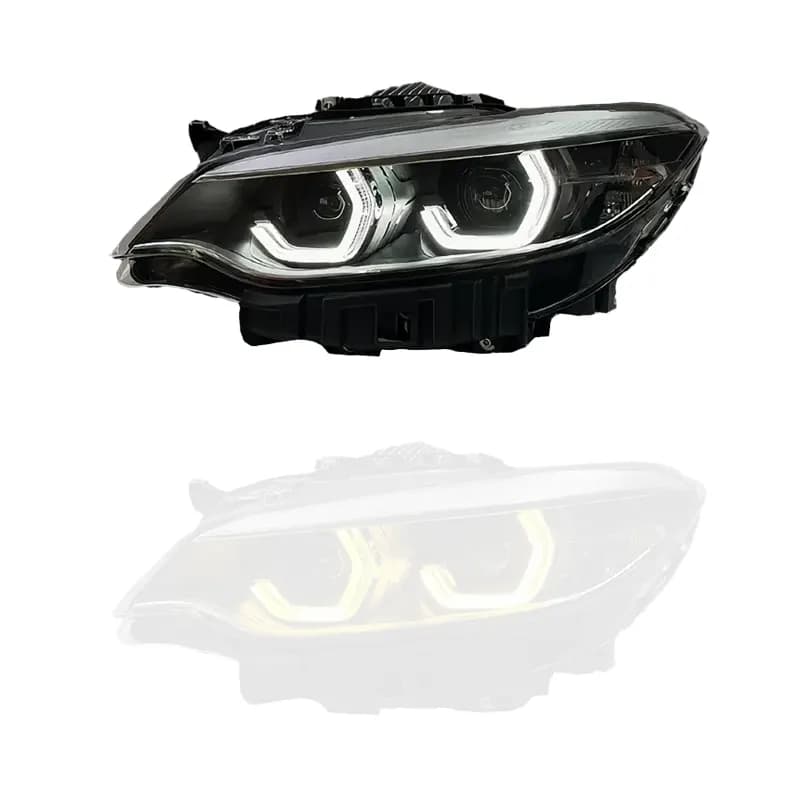

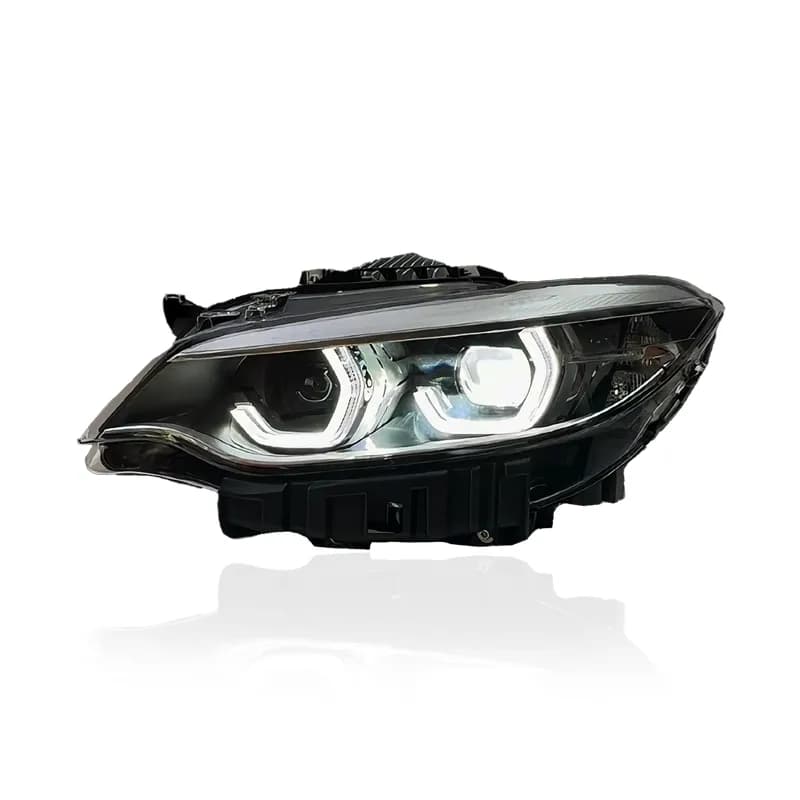

White
The clean Icon look.
Fixed white hexagonal Icon DRL. Matches the modern factory LED appearance.

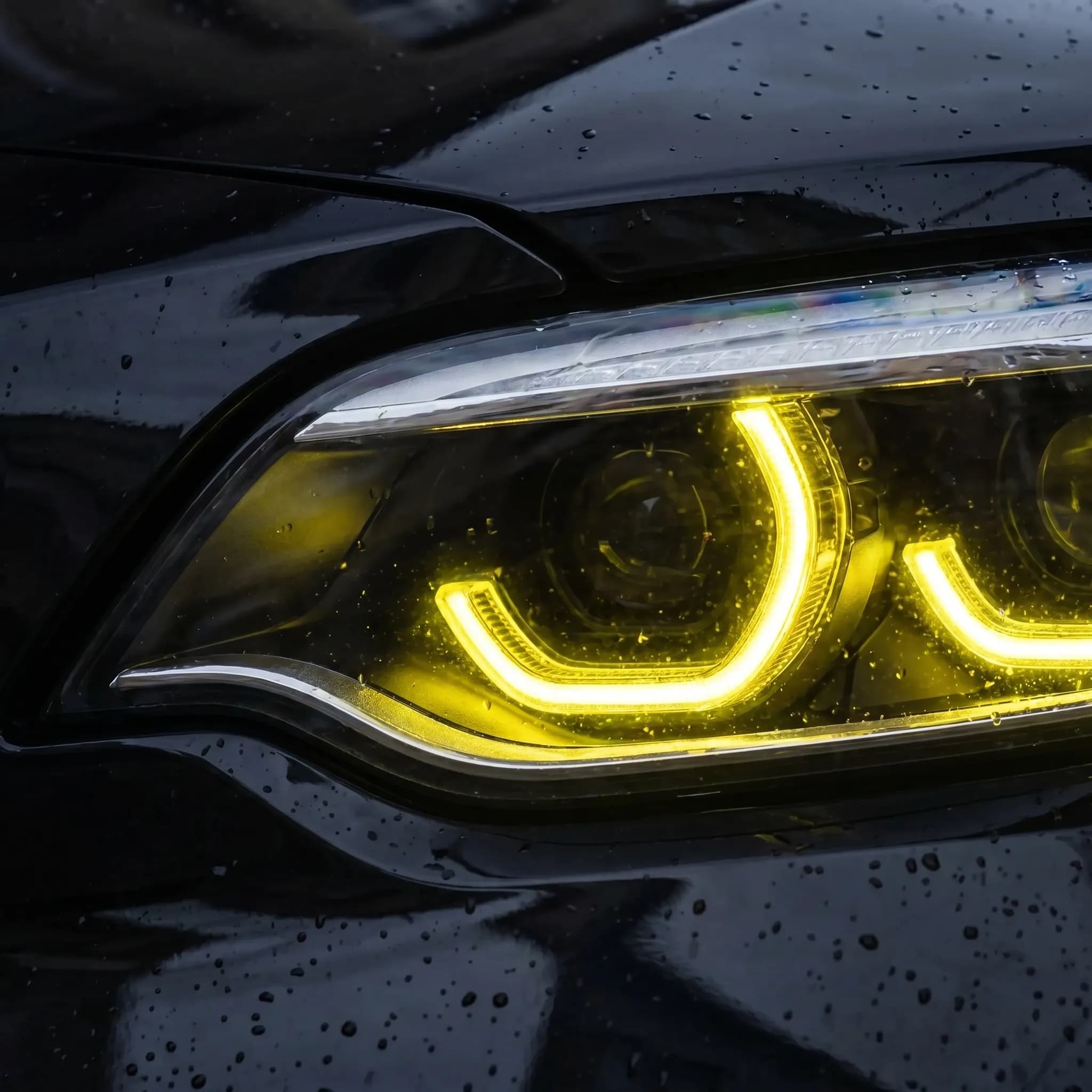

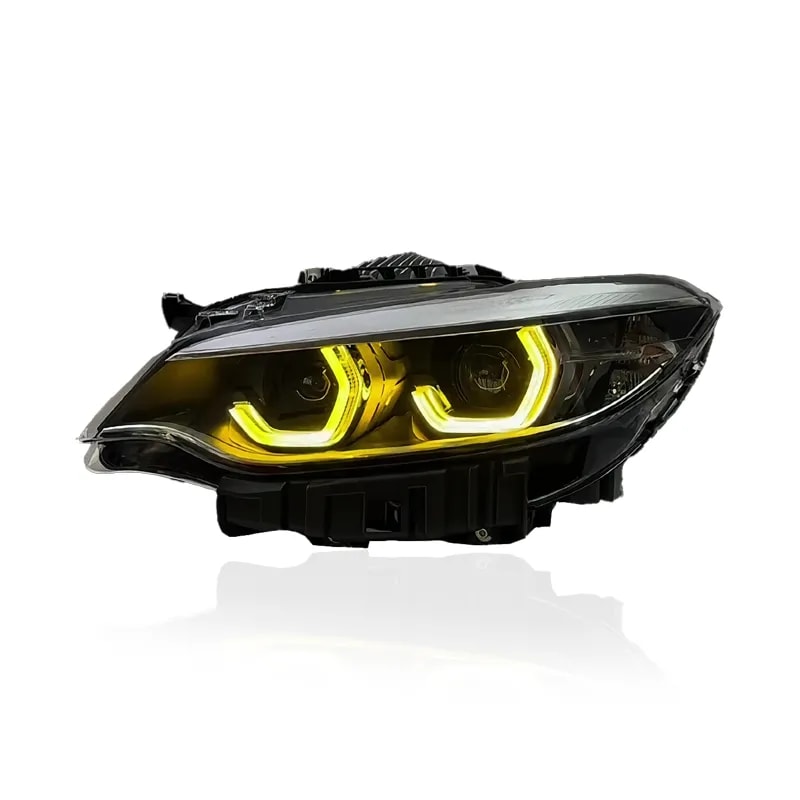

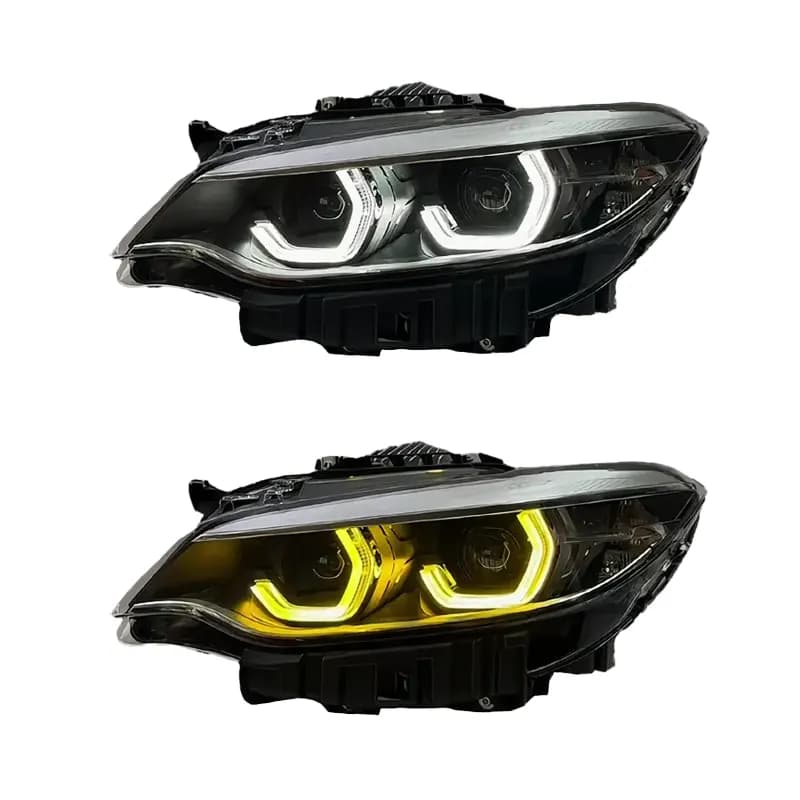

White + Yellow

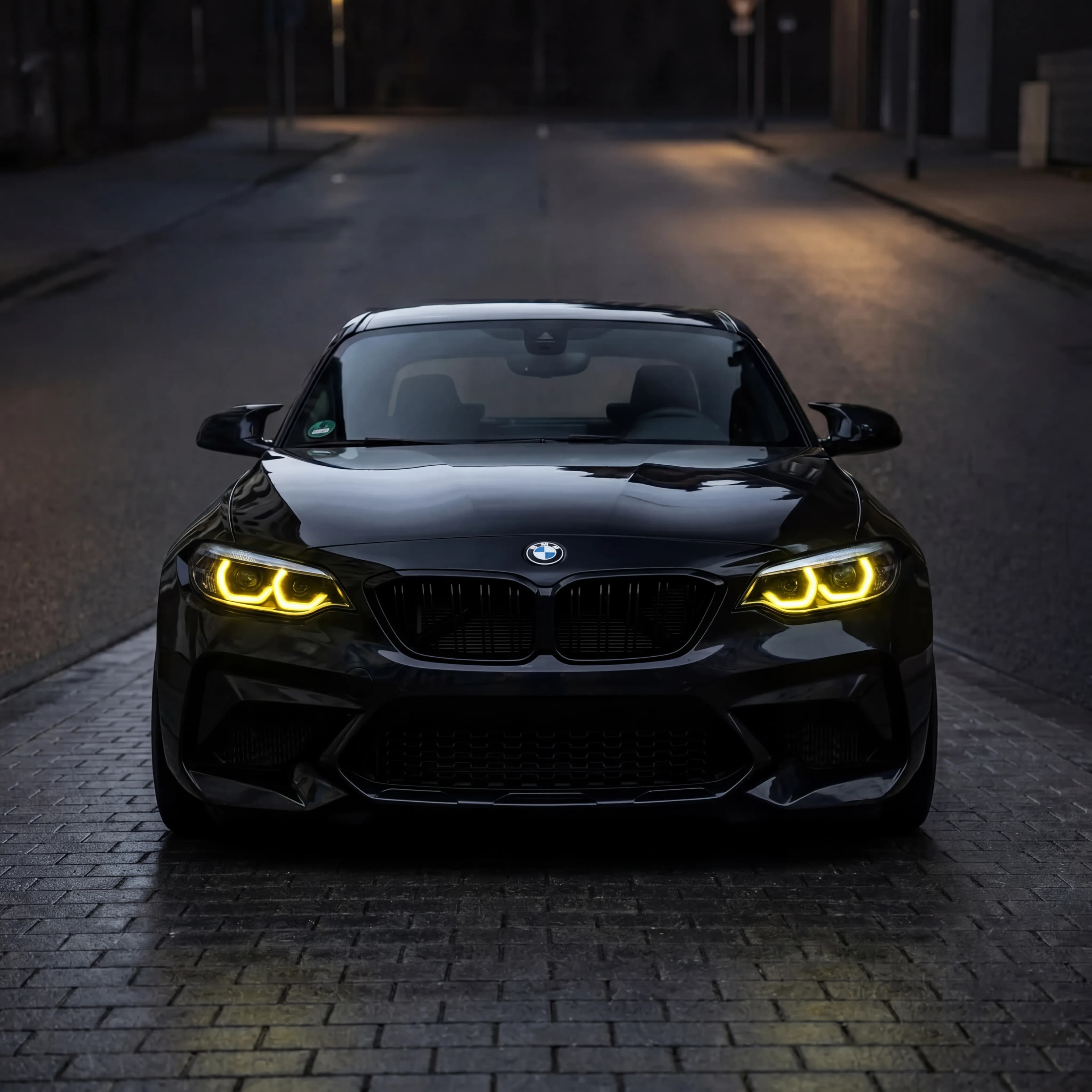

The motorsport signature.
Toggle between White and Yellow Icon DRL. The look that stands out on track and at shows.
DRL Color Switching
Applies to the White + Yellow version only. The White-only version has a fixed DRL.
Flash your high beams 5 times in quick succession to toggle between White and Yellow. The headlight retains your selection through ignition cycles.
Engineered to Stay on the Car
Halogen, Xenon & LED — Zero Coding
Halogen, bi-xenon, adaptive xenon (AFS/AKL), and factory LED — every F22/F23/M2 headlight configuration is supported. Just select your factory type at checkout. The internal electronics are pre-configured for each harness, including the AFS transition. No coding, no error codes, no adapters.
Ships Complete — Nothing to Transfer
Every assembly includes all LED drivers and control electronics pre-installed. No xenon ballasts to move, no D1S bulbs to source, no modules to swap. Your factory headlights stay intact.
Full LED Projectors with Auto-Leveling
Full LED projectors handle low and high beam with a sharp cutoff line and wide, even coverage. The integrated auto-leveling motor adjusts beam height based on vehicle load.
Sealed Construction
ABS housings with PMMA lenses, sealed against moisture at every joint. Every pair is bench-tested before shipping.
Icon-Style Hexagonal Signature
The hexagonal DRL element replicates the look BMW introduced on its current generation — the detail that modernizes the F22 front end and ties it to the latest M2 design language.
2-Year Warranty
Two years of coverage from delivery date.
Installation
A straightforward headlight swap requiring front bumper removal — standard on the F22 platform. No wiring modifications, no coding. Allow 2–3 hours.
- Remove the front bumper to access the headlight mounting bolts.
- Unbolt the factory headlights and disconnect the main harness plug.
- Plug the new headlight into your factory harness.
- Test before reassembly — verify low beam, high beam, DRL, indicators, and DRL switching (dual-color version: 5× flash).
- Reinstall the bumper, align beam height using the integrated adjusters.
Frequently Asked Questions
Yes. The F22 Coupe, F23 Convertible, and F87 M2 share the same headlight mounting points and harness architecture. This product fits all three.
Yes — that's exactly what this is. Select the halogen or xenon version to match your factory harness, and you get the full LED Icon-style conversion with no bumper change required.
Not at all. The xenon version covers standard bi-xenon and adaptive xenon. The internal electronics handle the AFS harness natively — no coding, no error codes. Just select "xenon" at checkout.
The White version has a fixed white Icon DRL. The White+Yellow version adds switchable color — flash the high beams 5× to toggle. Same housing, same projectors, same fitment.
Nothing. Every component is pre-installed — LED drivers, projector modules, DRL electronics, leveling motor. Your factory headlights stay fully intact.
Yes. The integrated leveling motor adjusts beam height based on vehicle load.
Yes, if you're comfortable removing the front bumper on the F22. Standard hand tools and about 2–3 hours. No lift required.
Technical Specifications
| Light Source | Full LED Projectors (Low + High Beam) |
|---|---|
| DRL Design | Icon-style hexagonal — White only or switchable White (~6,000K) / Yellow (~3,000K) |
| DRL Switching | Flash high beams 5× to toggle (dual-color version) |
| Auto-Leveling | Integrated leveling motor |
| Operating Voltage | 12V DC |
| Housing Material | ABS + PMMA Lens |
| Compatibility | F22 Coupe · F23 Convertible · F87 M2 · Halogen, Bi-Xenon, Adaptive Xenon (AFS/AKL) & LCI LED · 2014–2021 |
| Sold As | Pair (Left + Right) |
| Warranty | 2 Years |
OEM Cross-Reference Numbers
| Pre-LCI Halogen EU · 2014–2017 |
L: 63117304461 / 63117304467 R: 63117304462 / 63117304468 |
|---|---|
| Pre-LCI Halogen US · 2014–2017 |
L: 63117304473 R: 63117304474 |
| Bi-Xenon (S522A) EU · 2014–2017 |
L: 63117388927 / 63117388929 R: 63117388928 / 63117388930 |
| Bi-Xenon (S522A) US · 2014–2017 |
L: 63117388931 R: 63117388932 |
| Adaptive Xenon AKL (S524A) EU · 2014–2017 |
L: 63137388933 / 63117388935 R: 63117388934 / 63117388936 |
| Adaptive Xenon AKL (S524A) US · 2014–2017 |
L: 63137388937 R: 63117388938 |
| LCI LED EU · 2017–2021 |
L: 63117469777 / 63117469779 R: 63117469778 / 63117469780 |
| LCI LED US · 2017–2021 |
L: 63117469781 R: 63117469782 |
This list covers the most common OEM references for F22, F23, and F87 M2. Some market-specific or late-production part numbers may not be listed. If your part number isn't shown, send us your VIN and we'll confirm compatibility.
