Tesla Model 3 & Model Y OLED Tail Lights
Total Price
Per pair (left & right)
Tail Lights Price
Ships within 24h
Product Information
VLAND OLED Tail Lights (3D Effect) — Tesla Model 3 (2017–2022) • Model Y (2020–2022)
Direct-fit OLED rear lamps with 3D depth, amber sequential turn, red running/brake, white reverse, and red fog — plug-and-play for 3-pin and 4-pin cars.
Highlights
- OLED light signature with 3D effect for the running light.

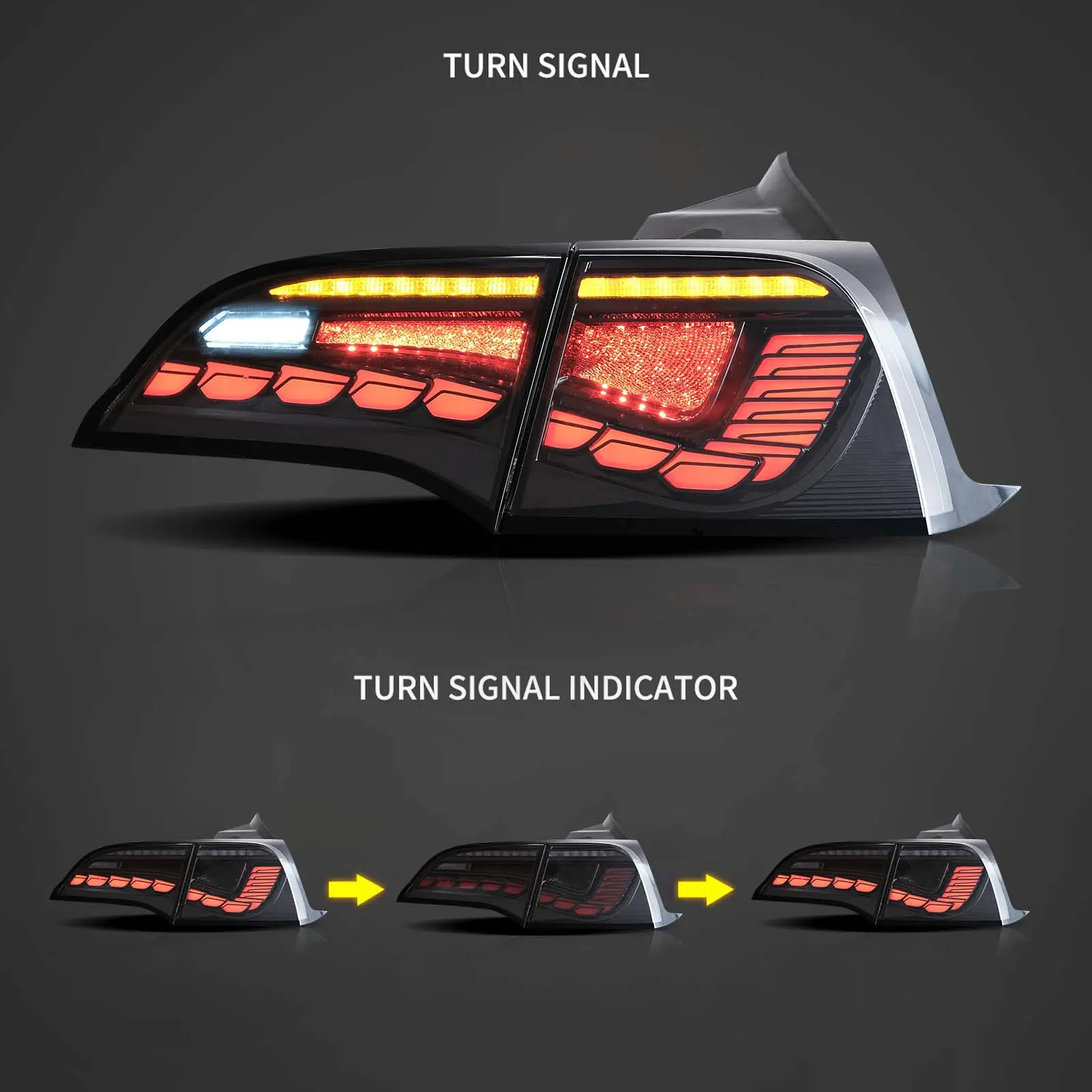

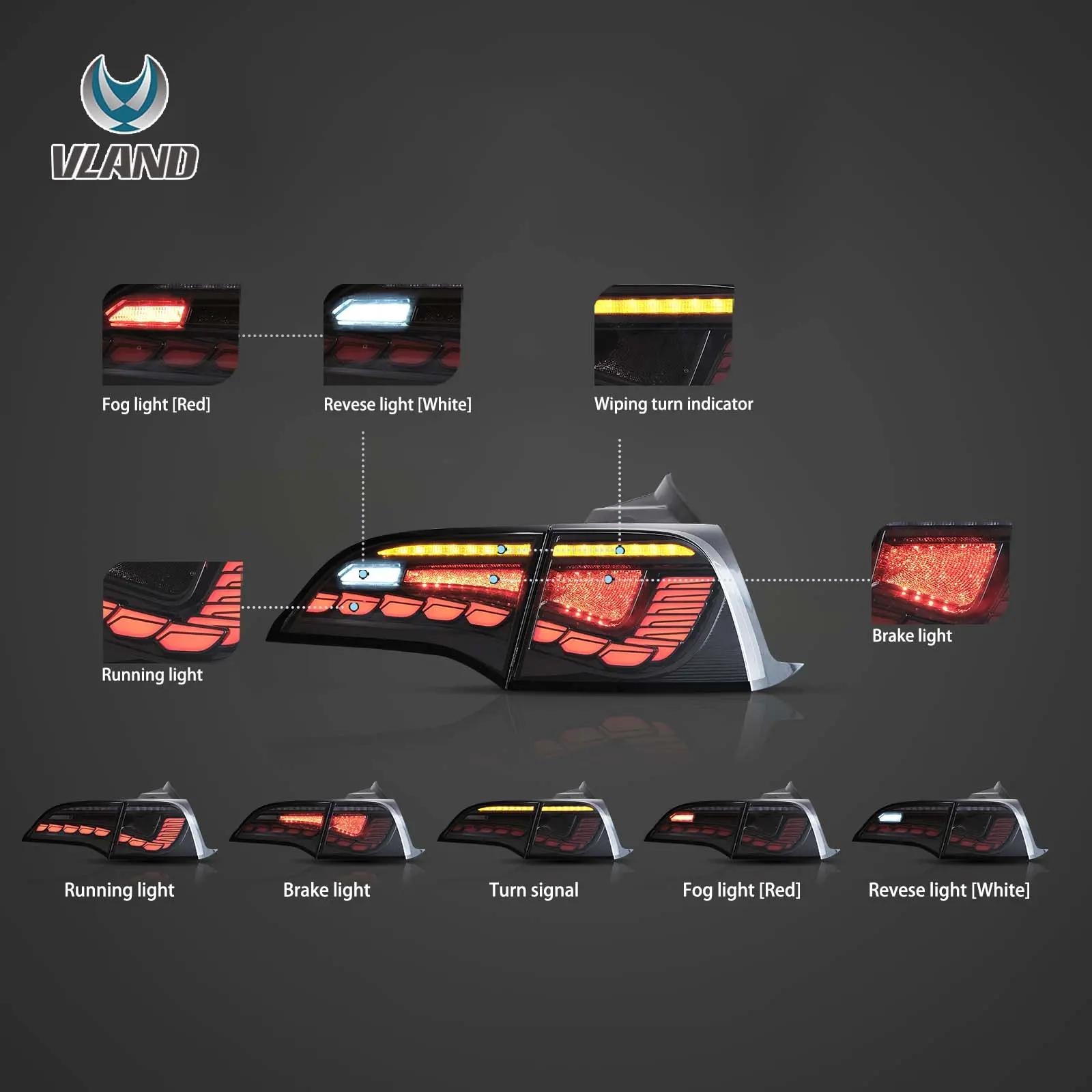

- Full LED functions: running (red OLED), brake (red), reverse (white), fog (red), turn (amber sequential).
- Plug & play with OE connectors — no bulbs required.
- Smoked lens, black housing. No start-up animation.

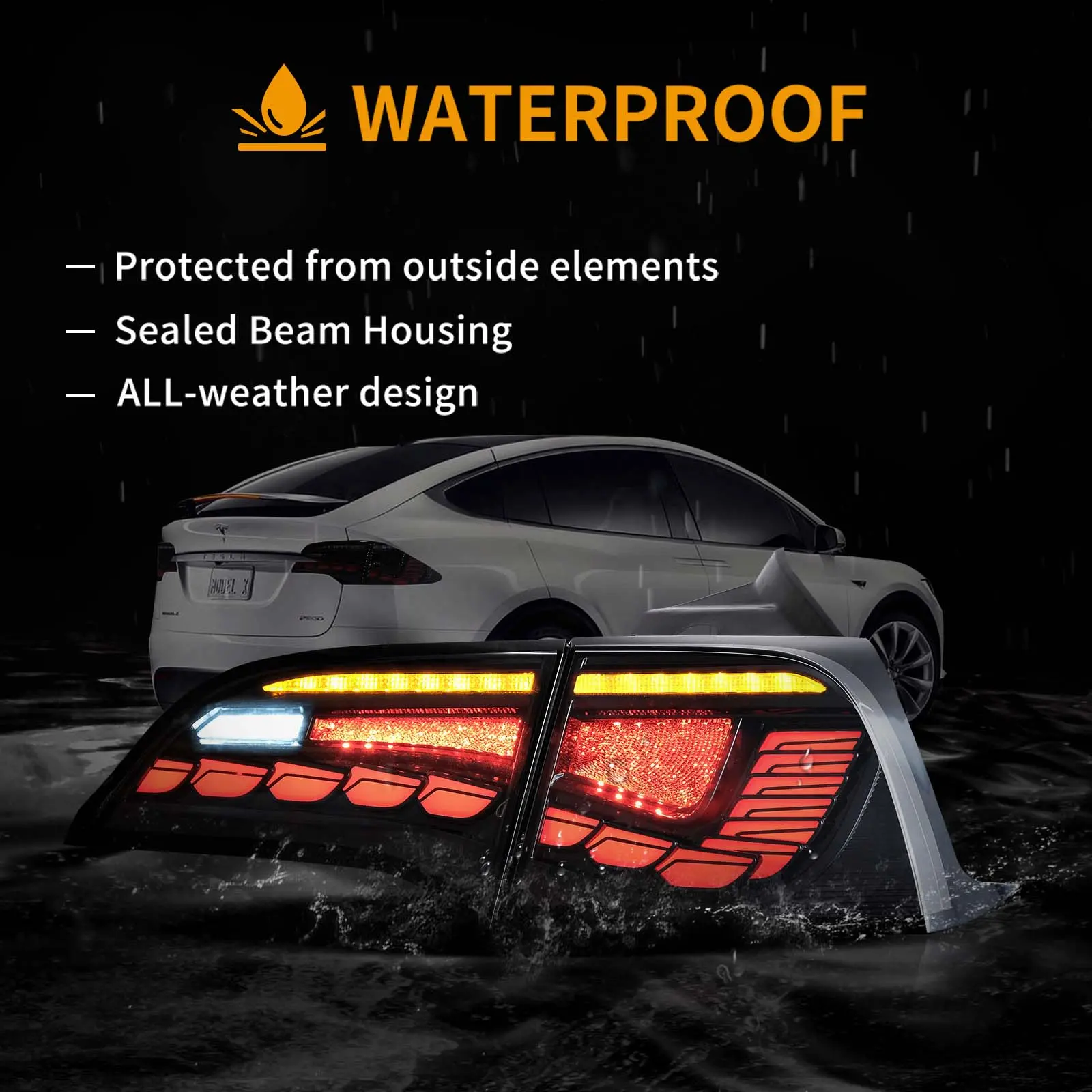

- IP67 sealed; 1-year VLAND warranty from delivery.
Exact fitment
- Tesla Model 3: 2017–2022
- Tesla Model Y: 2020–2022
Connector types: 3-pin (2017–2020) / 4-pin (2021–present). Select the correct version at checkout.
Note for U.S. 2017–2020 cars: brake and turn share the same LED segment and will illuminate together. If this is a concern, do not purchase this version. 2021+ vehicles do not have this behavior.
Body styles: Model 3 (Standard Plus, Long Range, Performance; 4-door). Model Y (Long Range, Performance; 4-door).

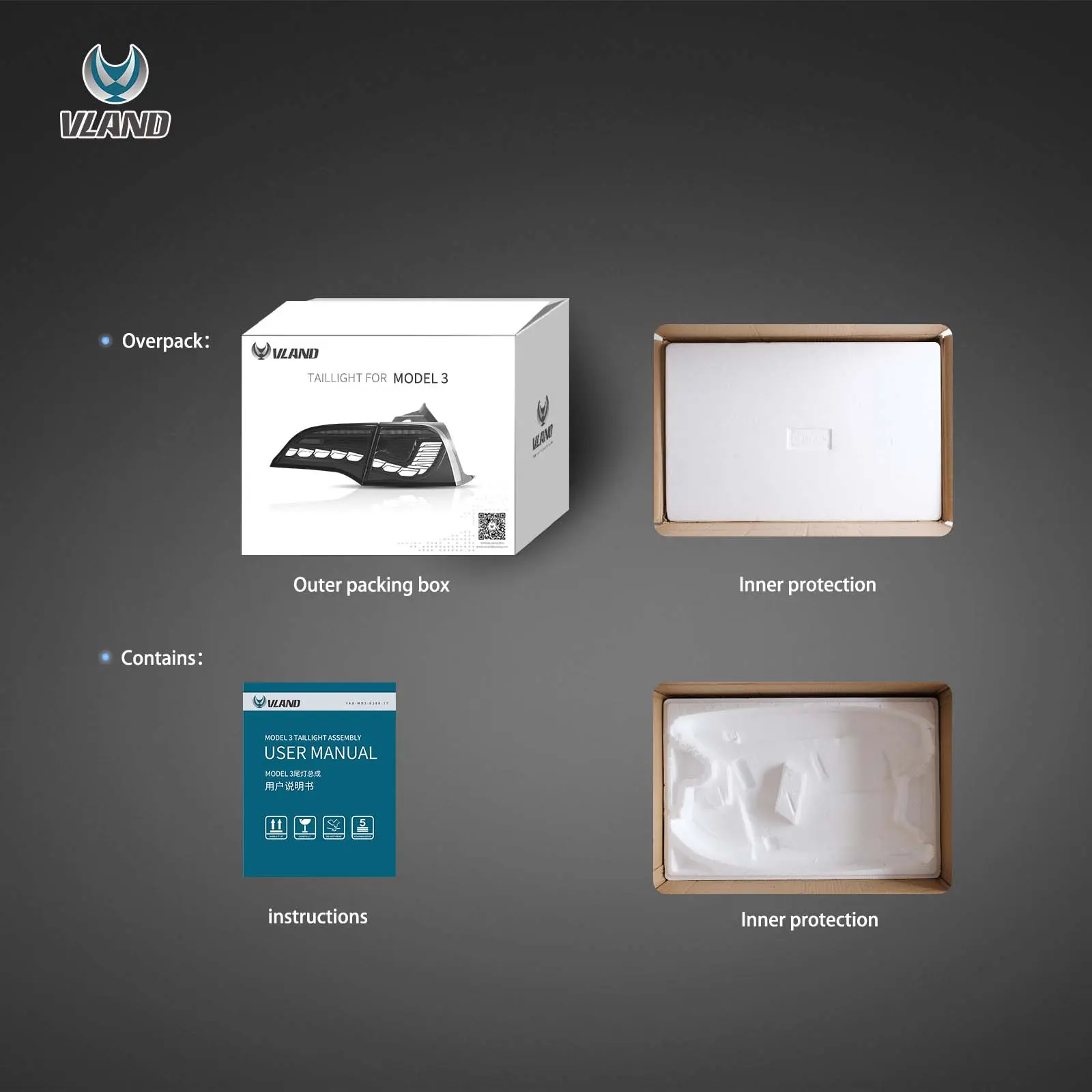

In the box
- 1 × Left (driver) OLED tail light
- 1 × Right (passenger) OLED tail light
- User / quick install guide
Install & wiring
- Remove OE lamps; transfer any clips/grommets if needed.

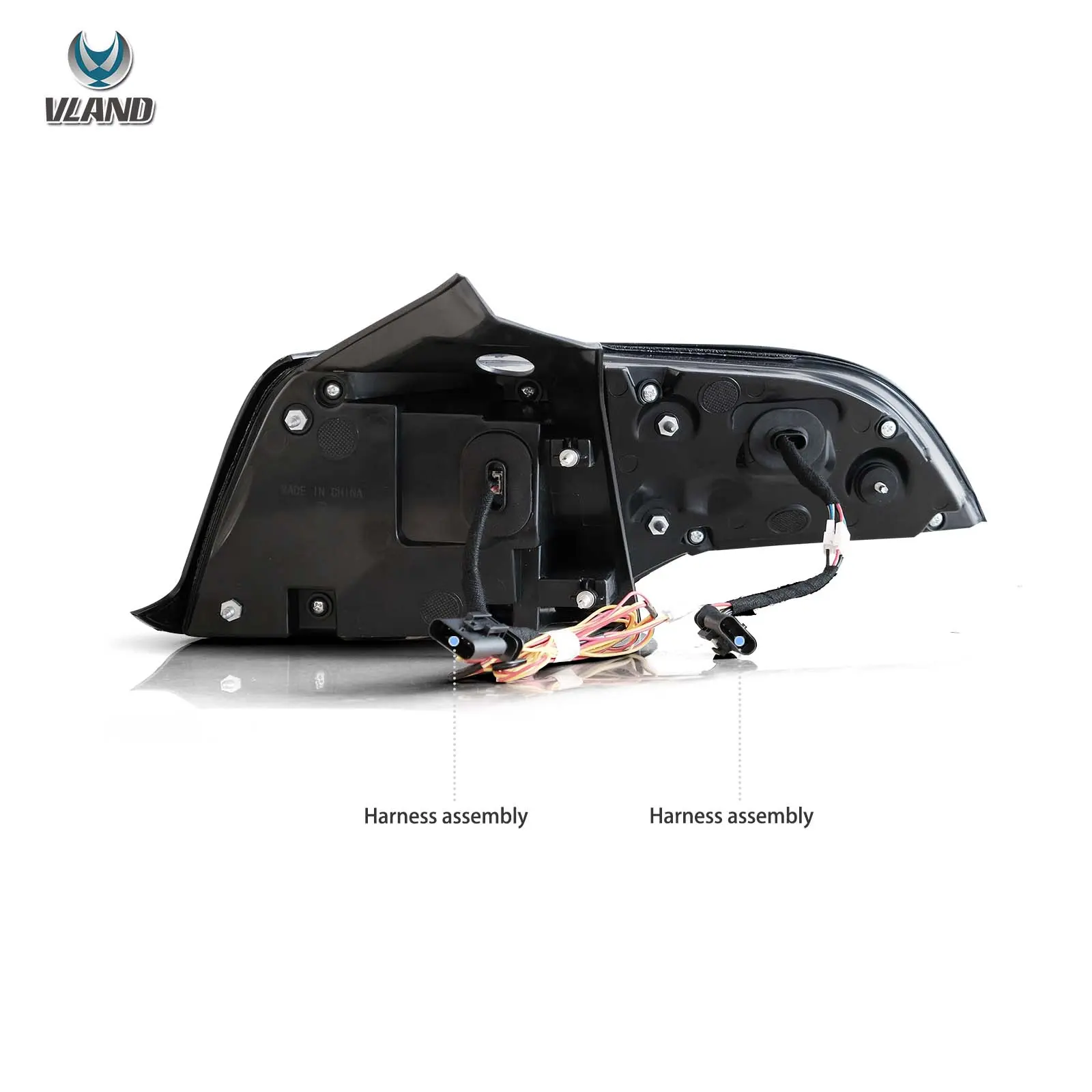

- Connect the OE 3-pin or 4-pin plug (as applicable) and mount securely.
- Verify running, brake, reverse, fog, and sequential turn functions.
Tech specs
| Lens color | Smoked |
|---|---|
| Housing | Black, Polypropylene (PP) |
| Lens material | Polycarbonate (PC) |
| Ingress rating | IP67 |
| Connector | 3-pin (2017–2020) / 4-pin (2021–present) |
| Package size | 57 × 32 × 34 cm (pair) |
| Gross weight | ≈ 3.8 kg (pair) |
| Certification | Design patent |
| Warranty | 1 year from delivery date |
OEM & parts references
1077397-00-F/G/H, 1077398-00-F/G/H, 1077401-00-G, 1077402-00-G, 1502086-00-D, 1502087-00-D, 1502088-00-B, 1502089-00-B.
