Lexus IS XE20 Headlights EU 2006-2014
Total Price
Per pair (left & right)
Lexus IS Series Headlights Price
Ships within 24h
Installation Video
Installation guide for VLAND Lexus IS Series (2006-2014)
Step-by-step video guide showing professional installation techniques and tips for your Lexus IS Series (2006-2014) VLAND lighting upgrade.
Product Information

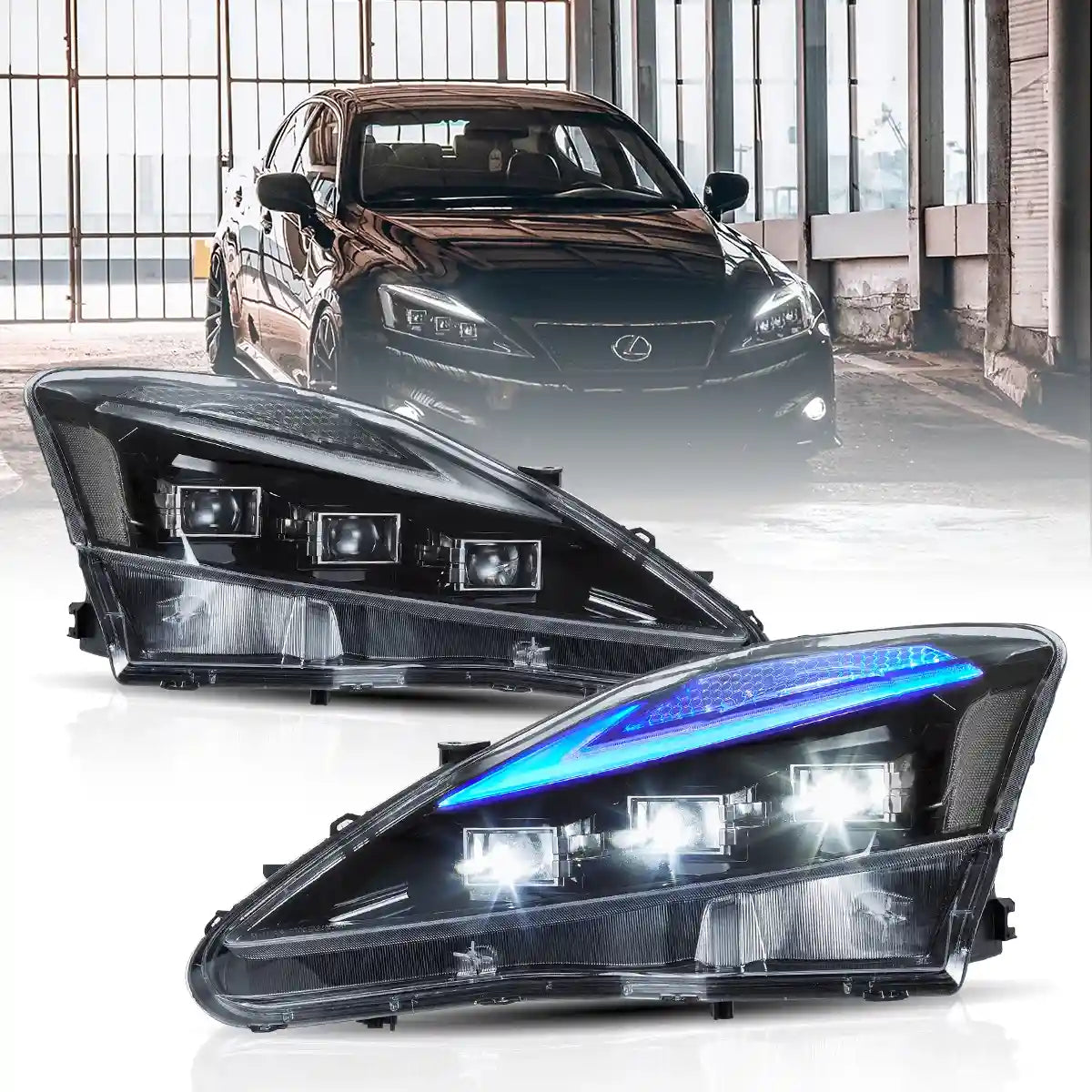

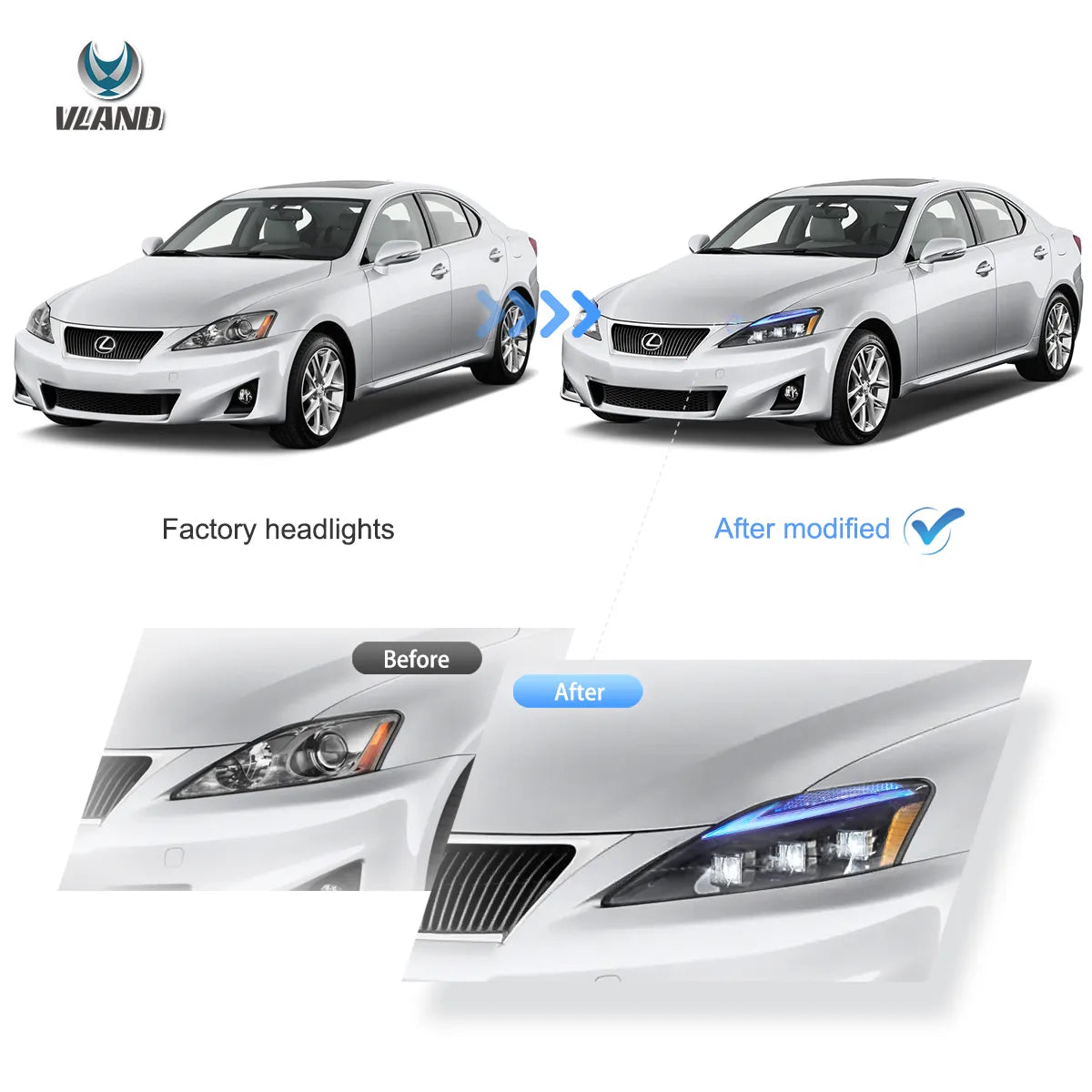

VLAND Lexus IS (XE20) LED Headlights — IS250/IS350/IS220d & IS F 2006–2012; IS 250C/350C 2010–2015 (Bi-LED, Sequential)

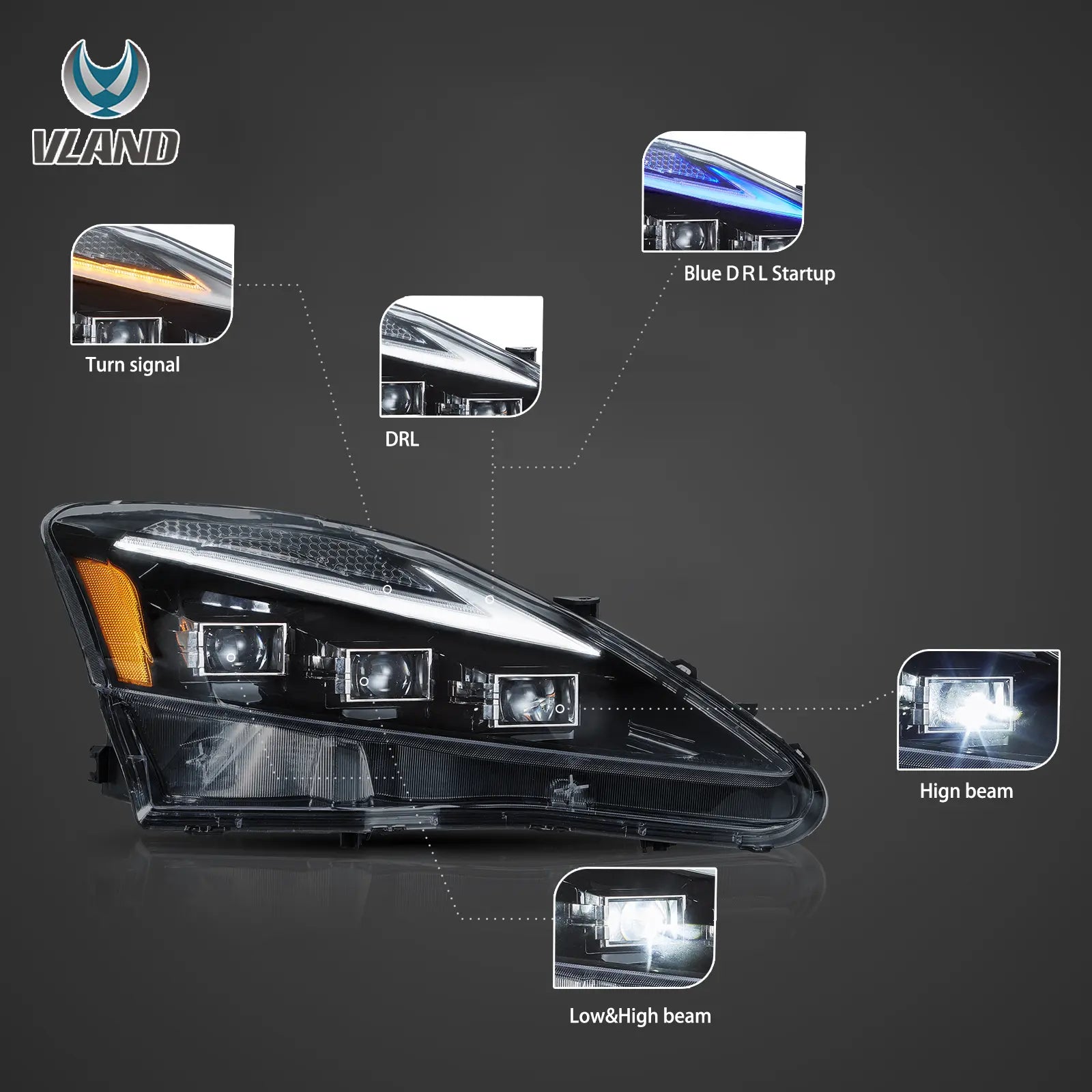

OEM-fit full-LED headlamps with bi-LED projectors, white DRL, and amber sequential turn signals. Plug-and-play for Lexus IS second gen (XE20) including IS F. DOT/SAE compliant, IP67 sealed. LHD & RHD available.
Why you’ll love these
- Full LED upgrade — bright, even low/high output; no bulbs required.

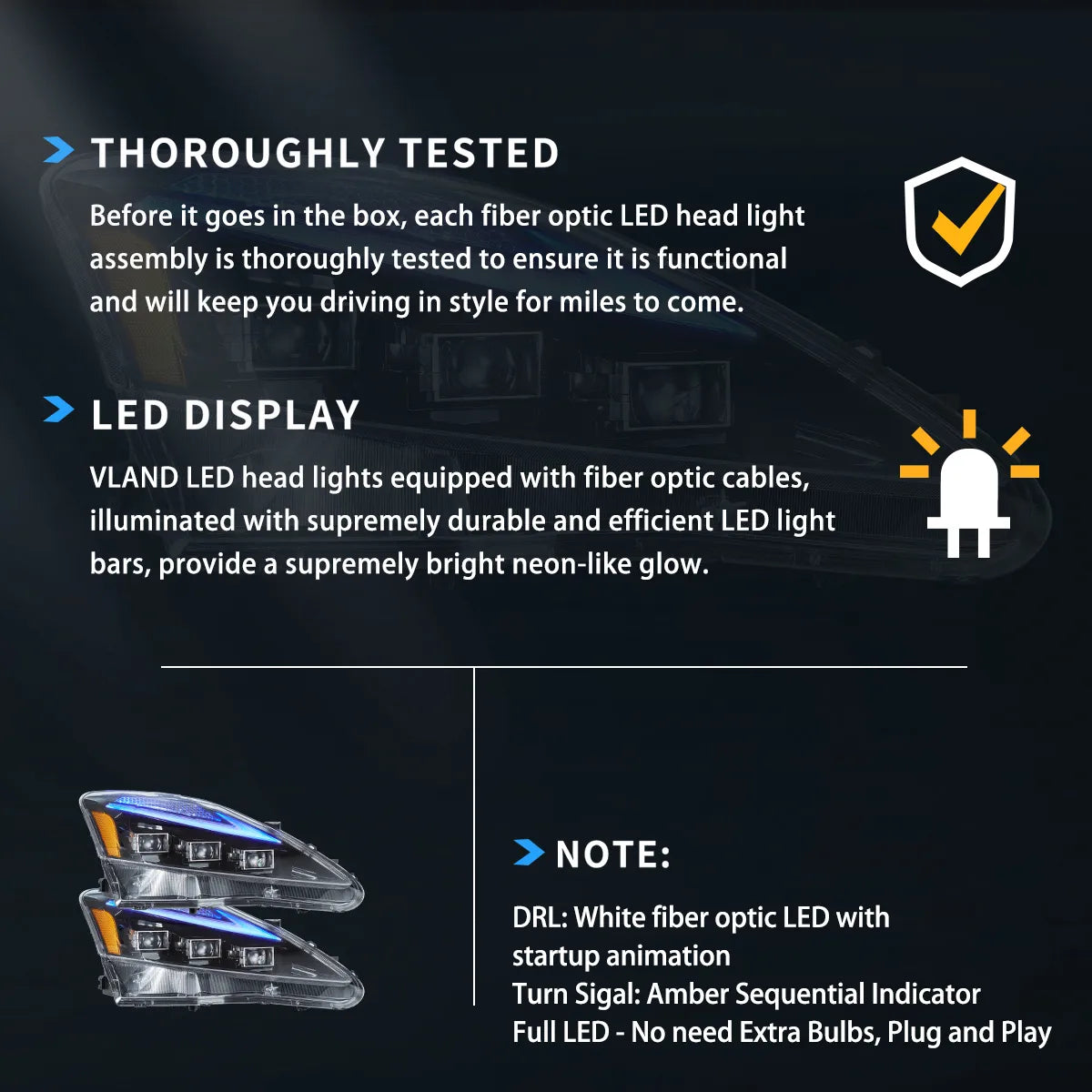

- Modern signature — crisp white DRL and smooth sequential amber indicators.
- True plug & play — factory-style connectors and mounts; no splicing.
- Road-ready — DOT & SAE approved; IP67 water/dust resistance.
- 1-year VLAND warranty from delivery.
Exact fitment
- Lexus IS (XE20 series): IS 250 / IS 350 / IS 220d 2006–2012
- Lexus IS F: 2008–2014
- Lexus IS C (250C / 350C): 2010–2015
- Drive side: LHD and RHD versions available

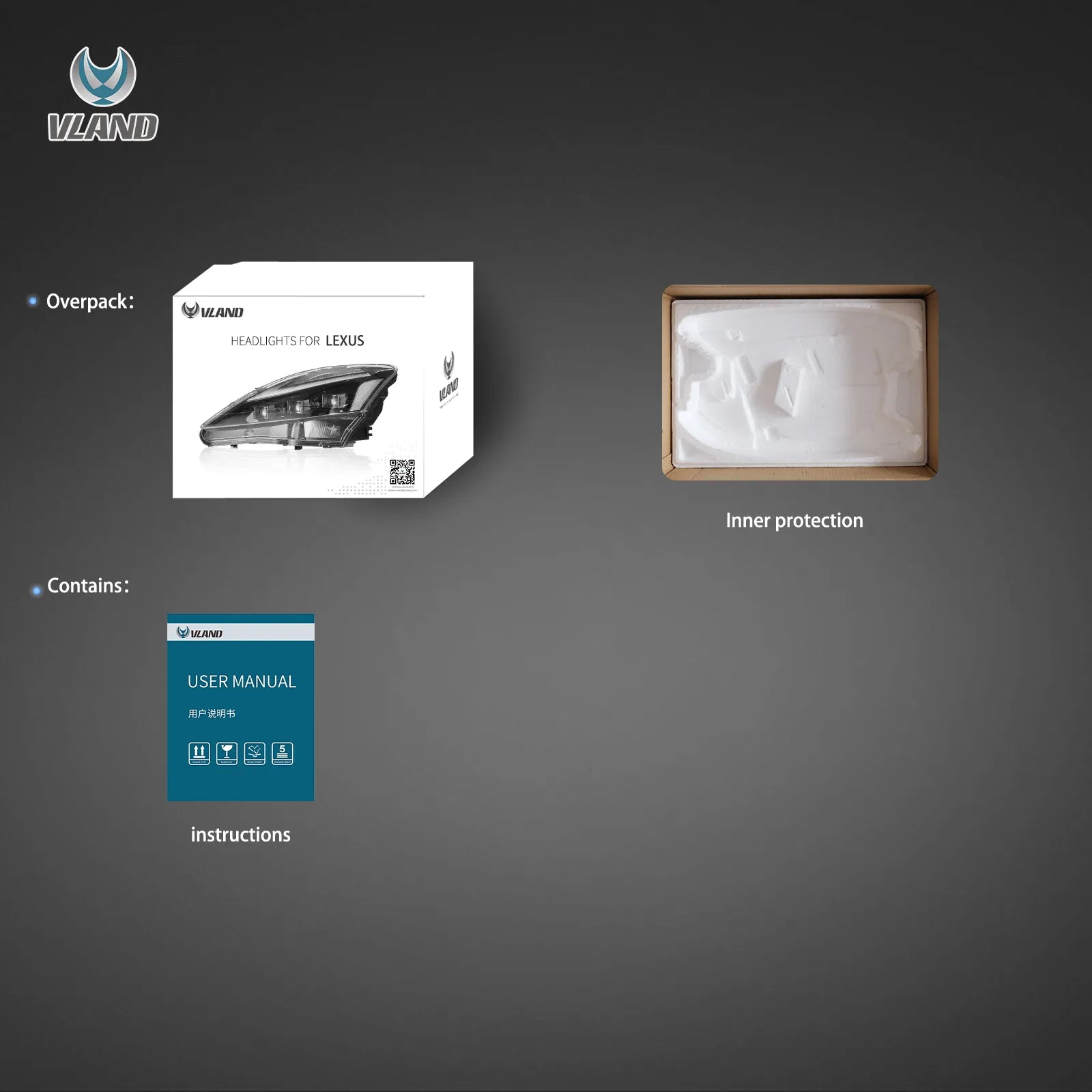

What’s in the box
- 1 × Left (driver) LED headlight
- 1 × Right (passenger) LED headlight
- User / quick install guide

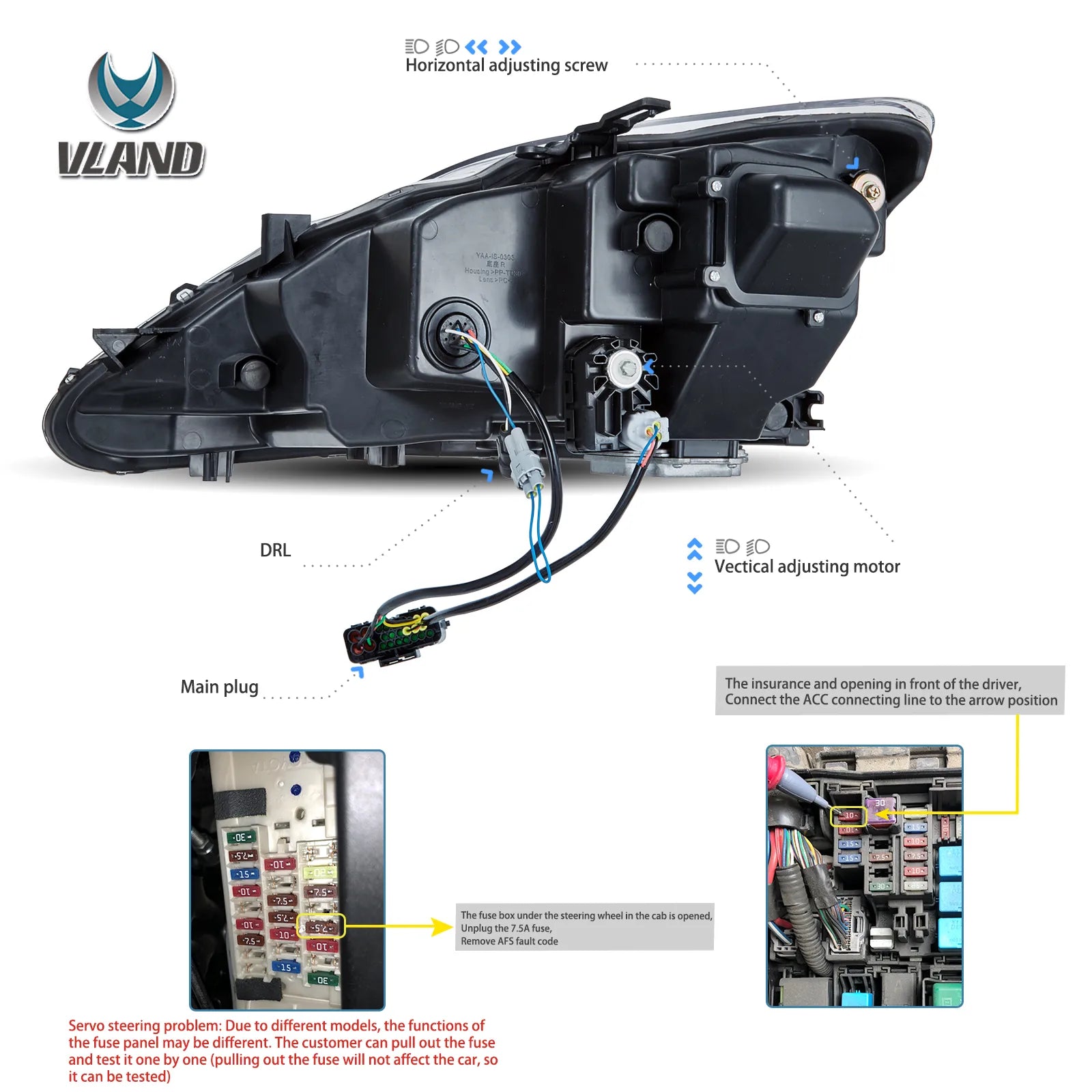

Install & wiring (plug-and-play)
- Remove OE assemblies at factory mount points; transfer clips/grommets if needed.
- Connect OE multi-pin plugs to each VLAND lamp and secure; aim using factory adjusters.

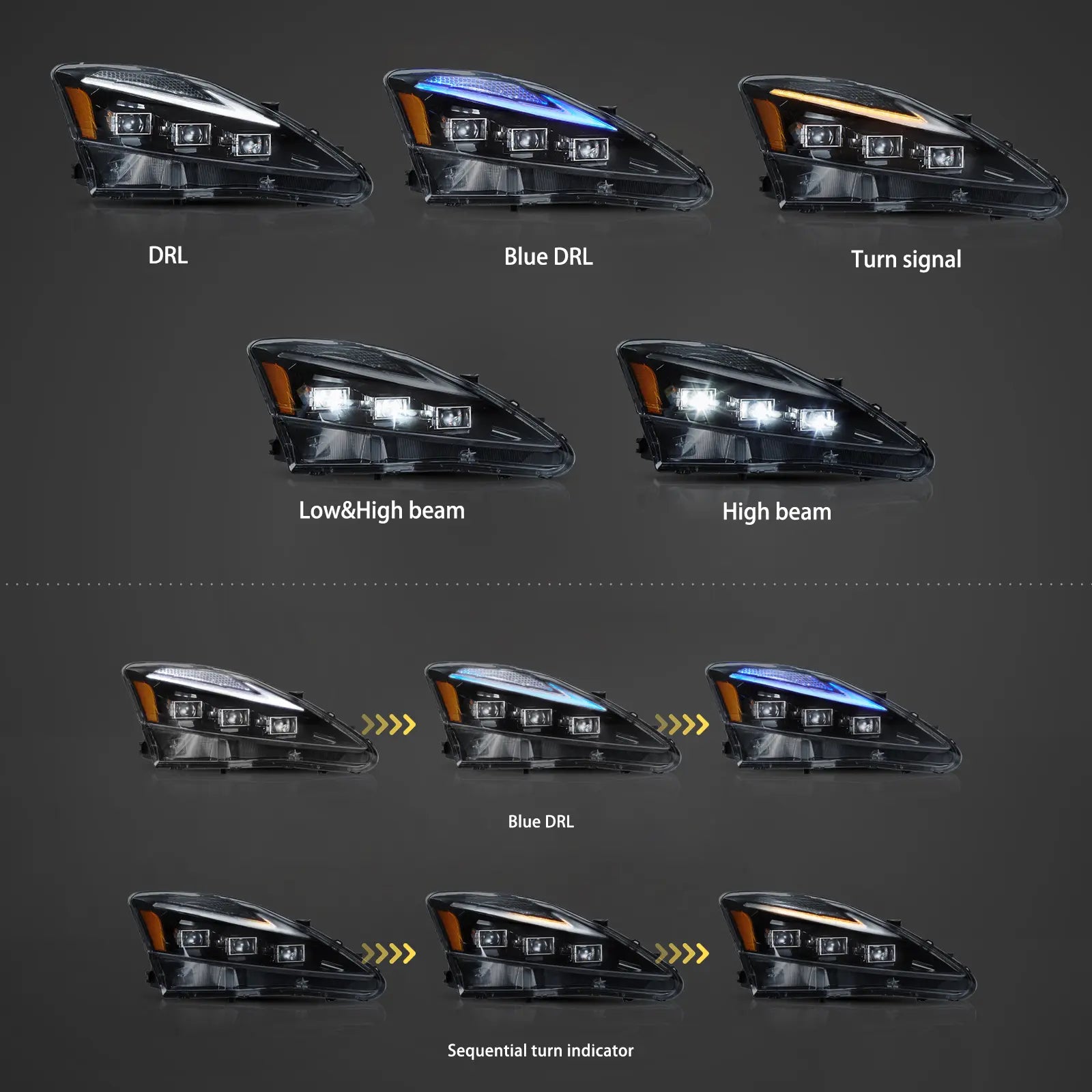

- Function check: low/high (bi-LED), DRL (white), turn (amber sequential).
Note: Some regions restrict colored DRL. If you choose the optional Blue DRL style, verify local regulations.
Styles & options

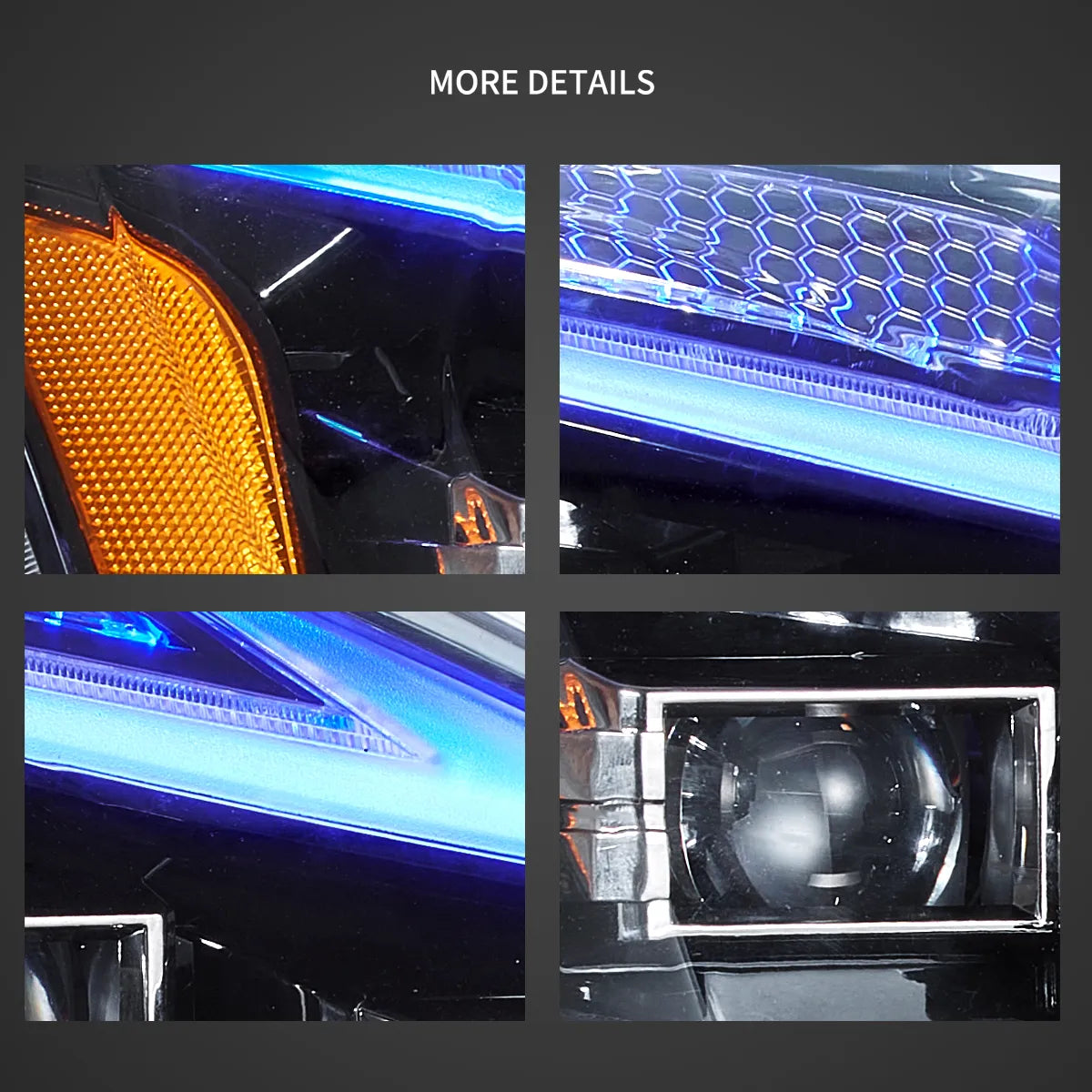

- Reflector color: Amber or Clear
- Finish: Black housing, clear lens

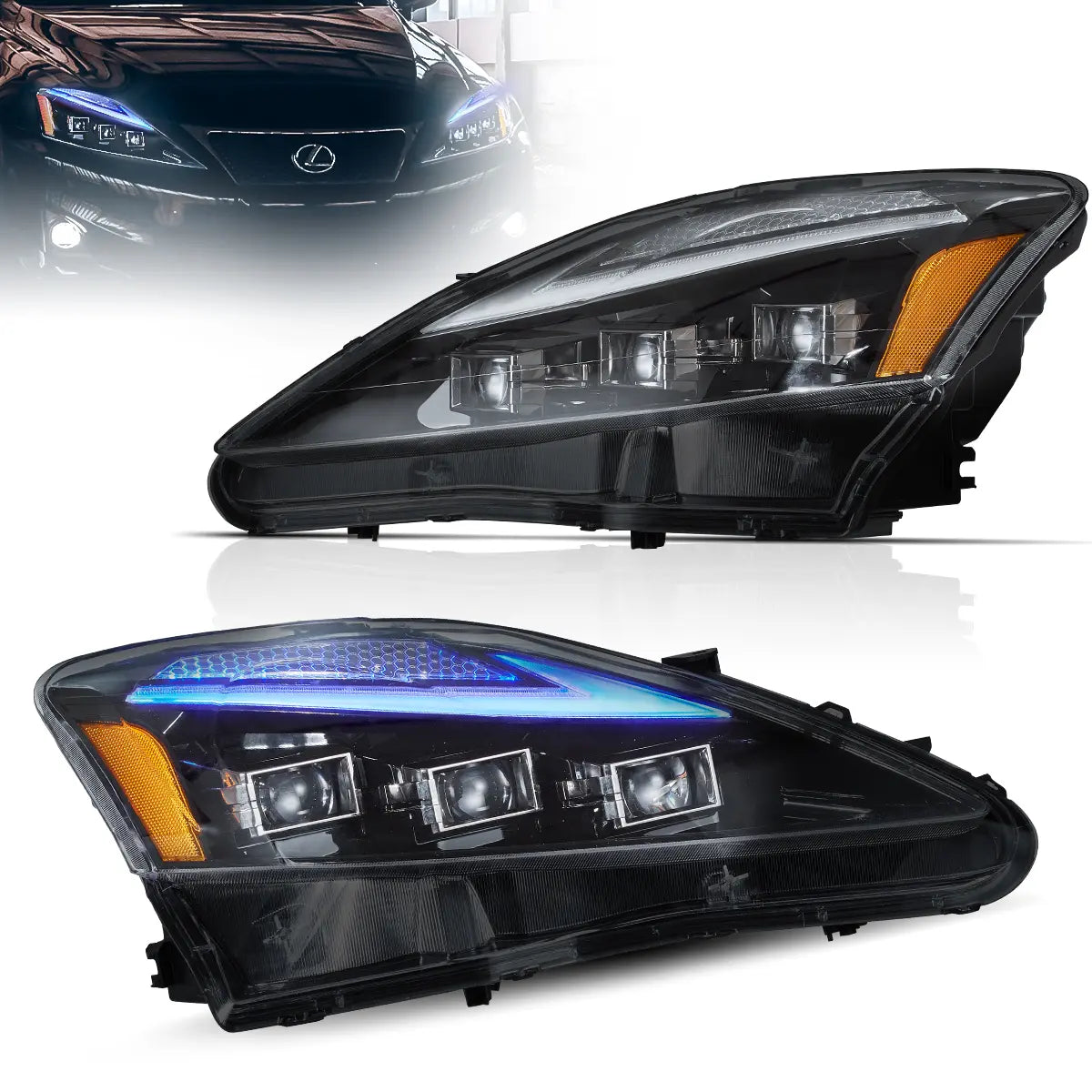

- Variants: Standard white DRL or White DRL with optional Blue DRL accent
- Start-up animation: welcome lighting on ignition/lock-unlock
Tech specs
| Light type | Full LED with bi-LED projectors (low/high), LED DRL, LED amber sequential turn |
|---|---|
| Color temperature | ~6500–7000 K |
| Ingress rating | IP67 |
| Compliance | DOT & SAE |
| Materials | Polypropylene (PP) housing / Polycarbonate (PC) clear lens |
| Package size / weight | 63.5 × 51 × 28.5 cm; Gross ≈ 9 kg (Net ≈ 6.6 kg) |
| Warranty | 1 year from delivery date |
OEM & parts cross-references
Examples: 81070-53240, 81170-53270, 81070-53290, 81070-53300, 81170-53310; 81140-53240, 81130-53270, 81140-53290, 81140-53300, 81130-53310; 81070-53341, 81170-53430, 81070-53440, 81185-53670/-53680; and supersessions listed in the catalog.
FAQs
Do I need bulbs? No — these are full-LED assemblies.
Will they fit my country? Yes — choose LHD or RHD to match your market.
Are they road legal? They’re DOT/SAE compliant for U.S. use. Always check local regulations for reflector color and DRL options.
