1 / 10
SKU: ES-2255-2D12A
Lexus E-Series Headlights Projector 2010-2012
-15%
Save €52.80
Total Price
€299.19Per pair (left & right)
€351.99
€299.19
€351.99
Per pair (left & right)
Lexus Headlights Price
In Stock
•Ships within 24h
1
Free 3-7 Day Delivery
Plug & Play
Product Information

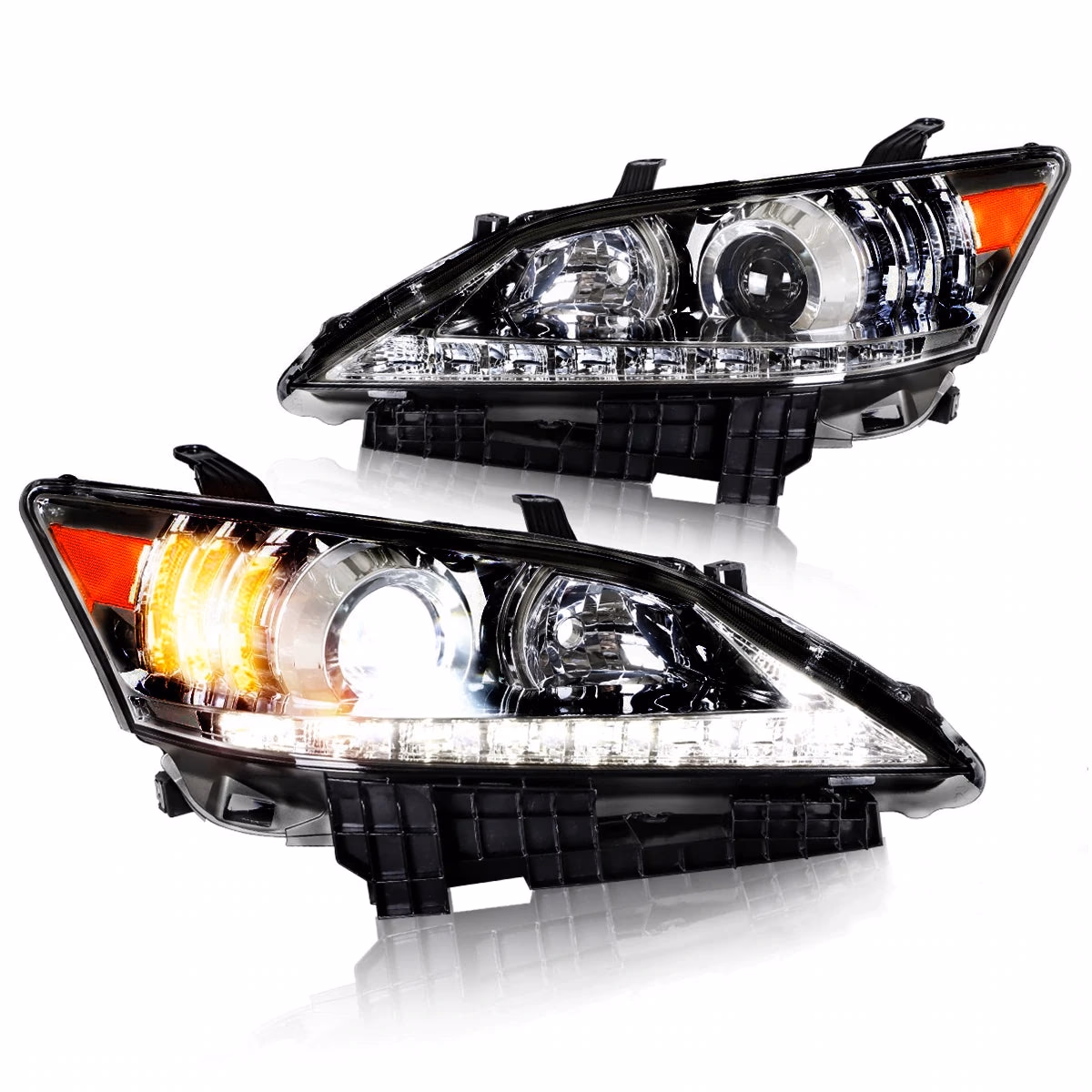

VLAND Lexus ES350 (GSV40) Projector Headlights — 2010–2012 Facelift | Plug-and-Play LED DRL (Black/Chrome)
Direct-fit projector headlamps for the 4th-gen Lexus ES350 facelift (2010–2012). LED daytime running light, projector low beam (H7/D2H), and 9005 high beam. Choose Black or Chrome finish.
Why you’ll love these
- OEM-grade fit: true plug-and-play with factory connectors and mount points.
- Projector clarity: sharp low-beam cutoff with your choice of H7 or D2H bulbs (not included).
- LED DRL: crisp white signature for a modern front-end look.
- Built to last: IP67 sealing, impact-resistant PC lens, durable PP housing.
- 1-year VLAND warranty from delivery.
Exact fitment
- Lexus ES350 — 2010, 2011, 2012 (4th Gen GSV40 facelift)
- Drive side: LHD
- Note: This set supports core functions (DRL, turn, low/high). Advanced OEM features (e.g., AFS) are not supported.
What’s in the box
- 1 × Left (driver) headlight assembly
- 1 × Right (passenger) headlight assembly
- Switch harness & HID harness, waterproof washer for HID
- User manual

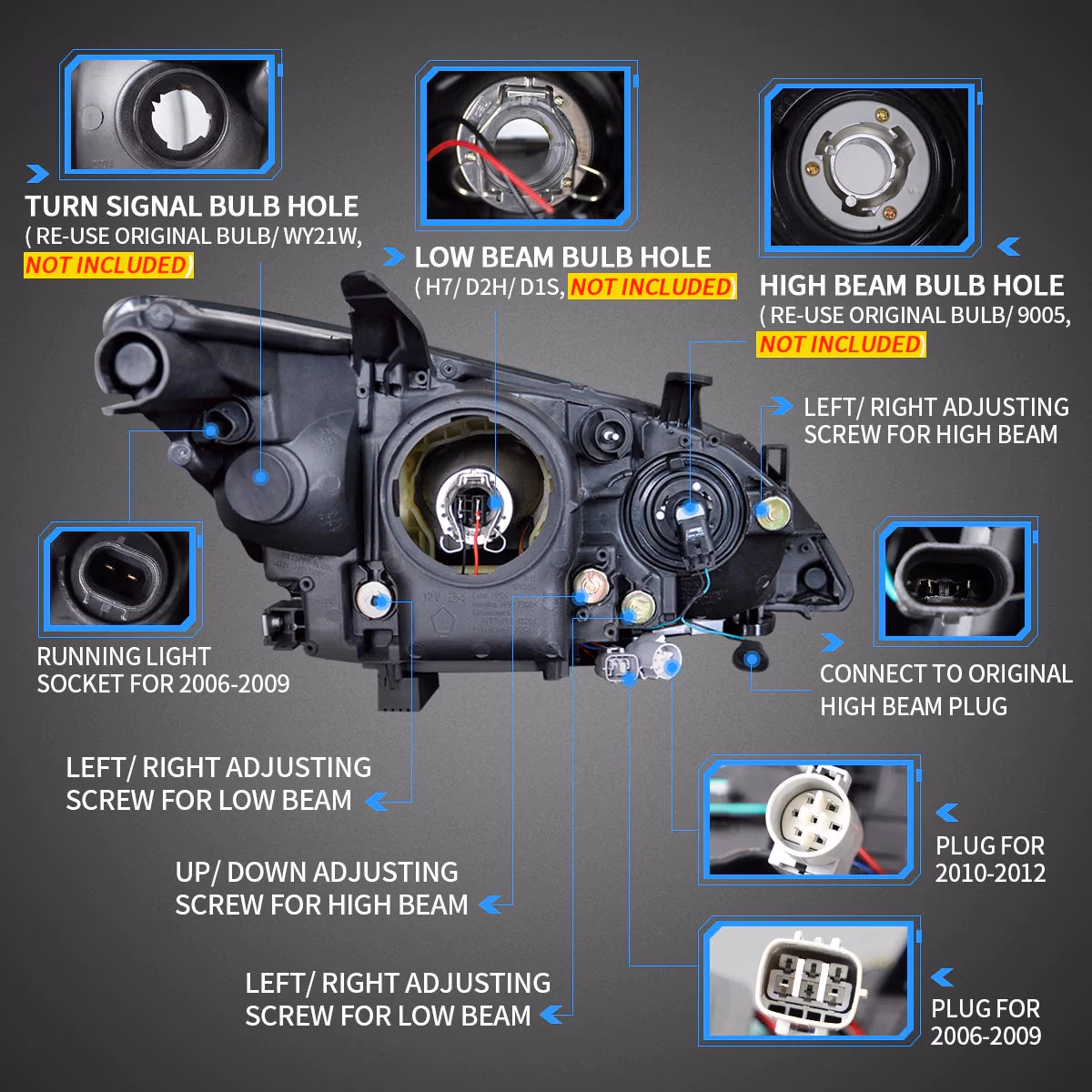

Install & wiring (plug-and-play)
- Remove OE lamps using factory mounting points; transfer clips/grommets if needed.

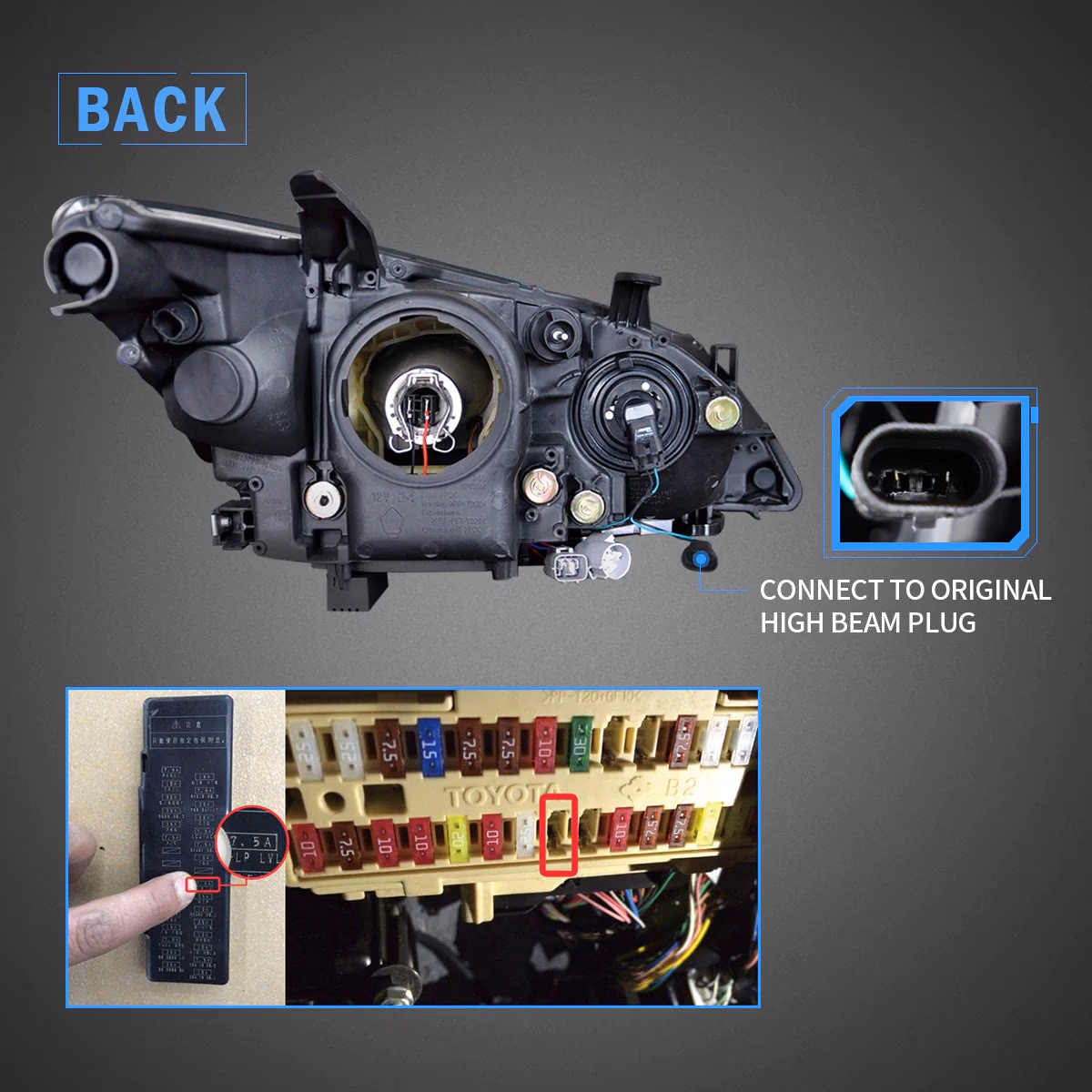

- Connect OE multi-pin plugs to each VLAND lamp; secure and aim using factory adjusters.
- Install bulbs (not included):
- Low beam: H7 or D2H (halogen/HID/LED compatible)
- High beam: 9005 (reuse your stock 9005 or choose halogen/HID/LED)
- Front turn signal: reuses the original amber bulb

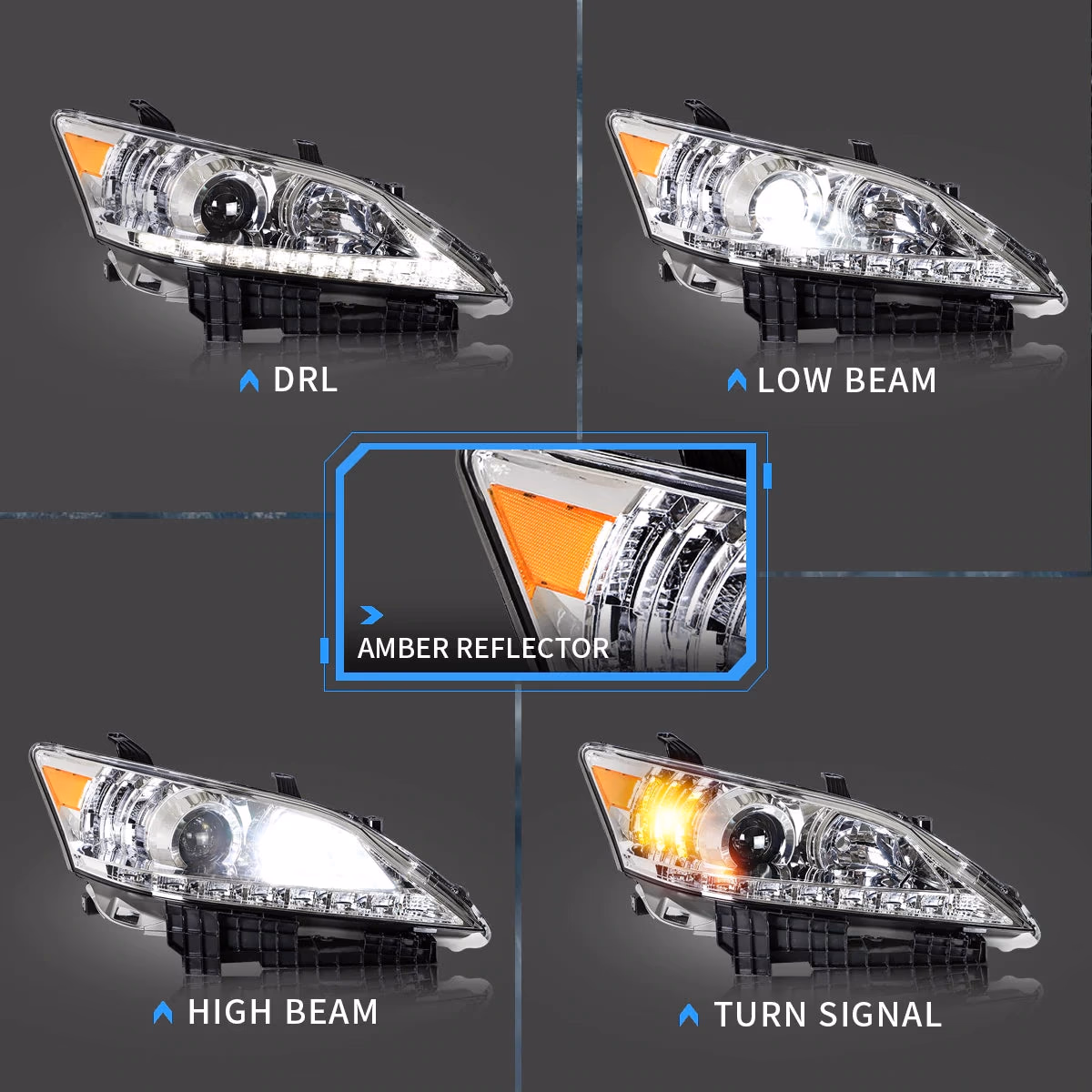

- Verify functions: DRL (white LED), low/high beams, turn signal (amber), leveling as applicable.
Tip: If your vehicle shows a bulb-check message with certain aftermarket bulbs, an inline decoder typically resolves it.
Styles & finish
- Finishes: Black housing / Chrome housing
- Lens: Clear polycarbonate (PC)
- DRL: LED (white)
- Turn signal: Reuses OE amber bulb
Tech specs
| Platform | Lexus ES350 (GSV40) facelift — 2010–2012 |
|---|---|
| Low beam | Projector — H7 or D2H (bulb not included) |
| High beam | Reflective bowl — 9005 (bulb not included) |
| DRL | LED (white) |
| Ingress rating | IP67 |
| Materials | Polypropylene (PP) housing / Polycarbonate (PC) lens |
| Certifications | Design patents |
| Package size / weight | 78 × 63.5 × 28.5 cm; Gross ≈ 10.2 kg (Net ≈ 6.6 kg) |
| Warranty | 1 year from delivery date |
OEM & parts cross-references
Examples: 81170-33670, 81185-33680, 81170-33740, 81185-33750.
