SKU: YAA-RG-0319A-NP31C-1
Ford Ranger Headlights EU 2015-2021
-15%
Save €66.90
Total Price
€379.09Per pair (left & right)
€445.99
€379.09
€445.99
Per pair (left & right)
Ford Ranger Headlights Price
In Stock
•Ships within 24h
1
Free 3-7 Day Delivery
Plug & Play
ECE Certified
Installation Video
Video
Installation guide for VLAND Ford Ranger (2015-2021)
Step-by-step video guide showing professional installation techniques and tips for your Ford Ranger (2015-2021) VLAND lighting upgrade.
Product Information

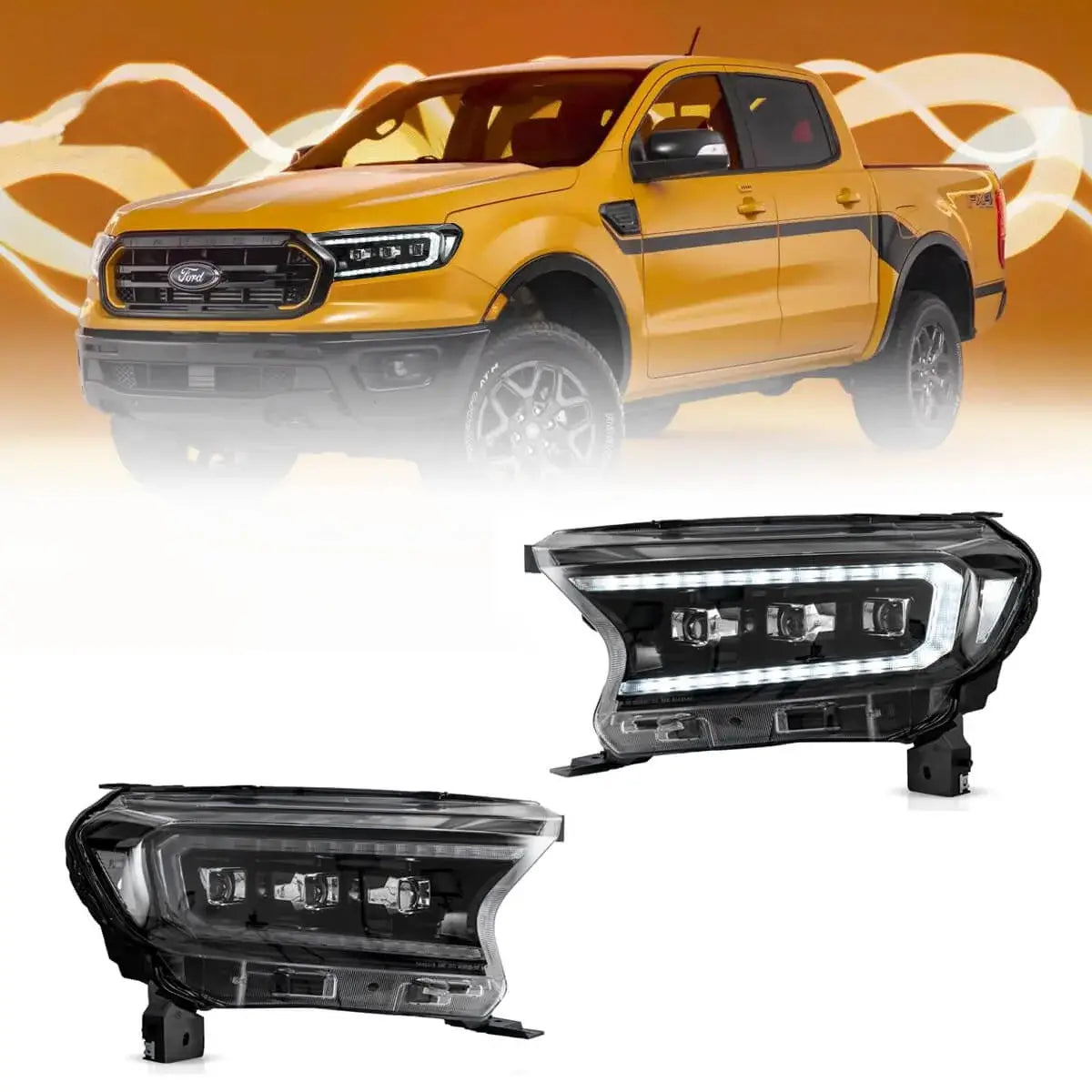

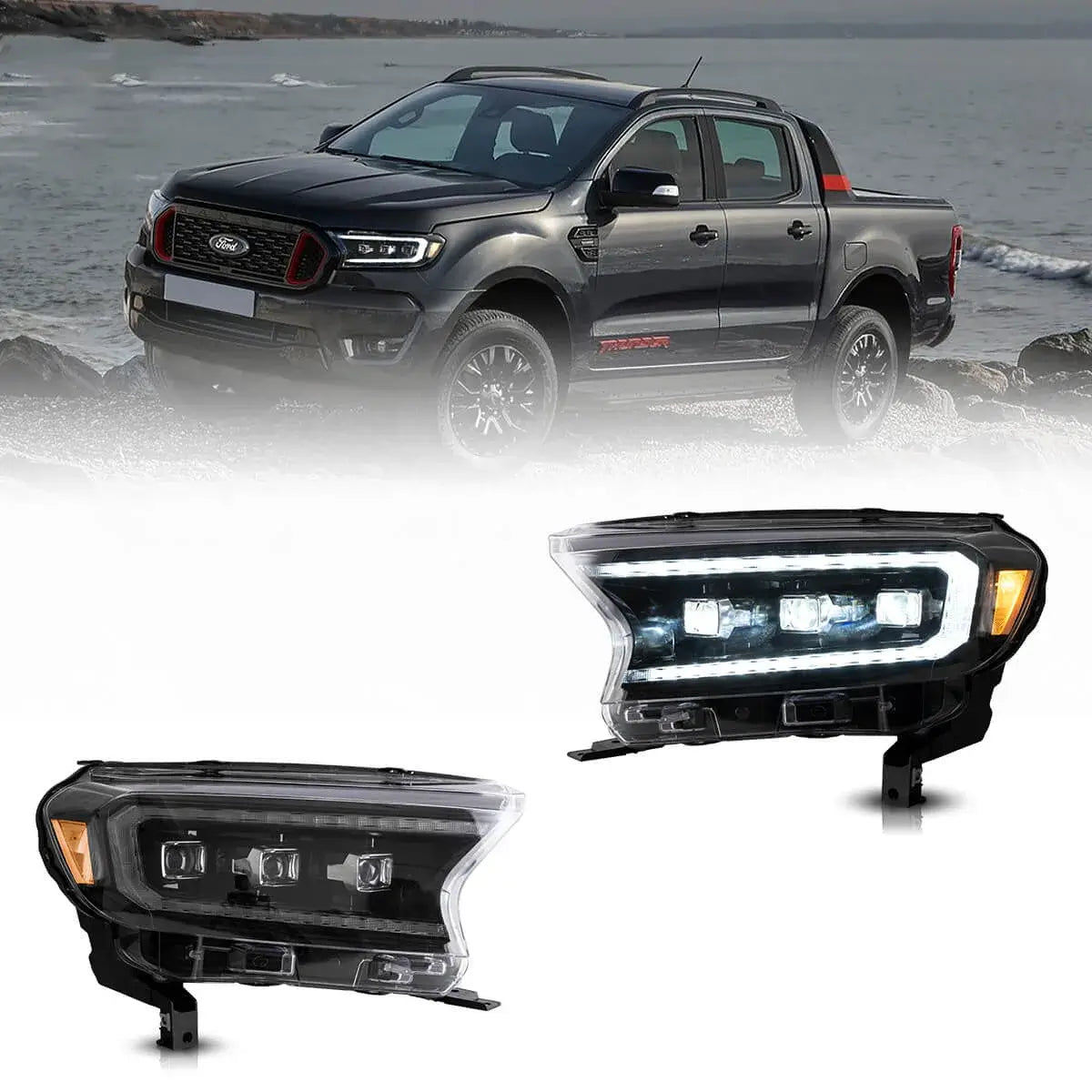

VLAND LED Headlights — Ford Ranger P375 (2015–2021, International)
Full-LED triple projector performance with white DRL and amber sequential turn signals — plug-and-play for non-US P375 Rangers.
Highlights
- Full-LED system — no bulbs required.
- Dual-beam projectors for low/high with crisp, consistent output.
- LED DRL (white) and sequential amber indicators.
- Plug-and-play OE-style connectors; no coding or splicing.
- Black housing, clear lens, IP67 sealed.
- 1-year warranty from delivery.
Exact fitment
Ford Ranger (P375) — model years 2015, 2016, 2017, 2018, 2019, 2020, 2021 (international / non-US types).
- For vehicles originally equipped with halogen headlamps.
- LHD / RHD beam patterns available — select your region.
Style options
- Amber reflector
- Clear reflector
What’s in the box
- 1 × Left (driver) headlight
- 1 × Right (passenger) headlight
- User / quick-install guide
Install
- Remove OE units; transfer clips/grommets if needed.
- Connect the factory multi-pin plugs to each assembly.
- Verify DRL, low/high, and sequential turn functions; aim using the built-in adjusters.
Professional installation recommended.
Tech specs
| Beams | LED dual-beam projectors (low/high), integrated drivers |
|---|---|
| DRL / Turn | LED DRL (white) · LED turn (amber, sequential) |
| Housing / Lens | PP (black) / PC (clear) |
| Ingress | IP67 |
| Certifications | E-mark (international); SAE/DOT by market; design patent |
| LHD / RHD | Both available |
| Package | ≈ 64.5 × 62.5 × 28.5 cm; gross ≈ 11.4 kg |
| Warranty | 1 year from delivery date |
OEM & parts references
Examples: KB3Z-13008-F/K (RH), KB3Z-13008-G/M (LH). Partslink: FO2503383/FO2502383 and variants.
