Ford F-150 LED Classic Look Headlights EU 2021-2023
Total Price
Per pair (left & right)
Ford F-150 Headlights Price
Ships within 24h
Installation Video
Installation guide for VLAND Ford F-150 (2021-2023)
Step-by-step video guide showing professional installation techniques and tips for your Ford F-150 (2021-2023) VLAND lighting upgrade.
Product Information
VLAND LED Headlights (Classic Look) — Ford F-150 • 14th Gen (2021–2024)

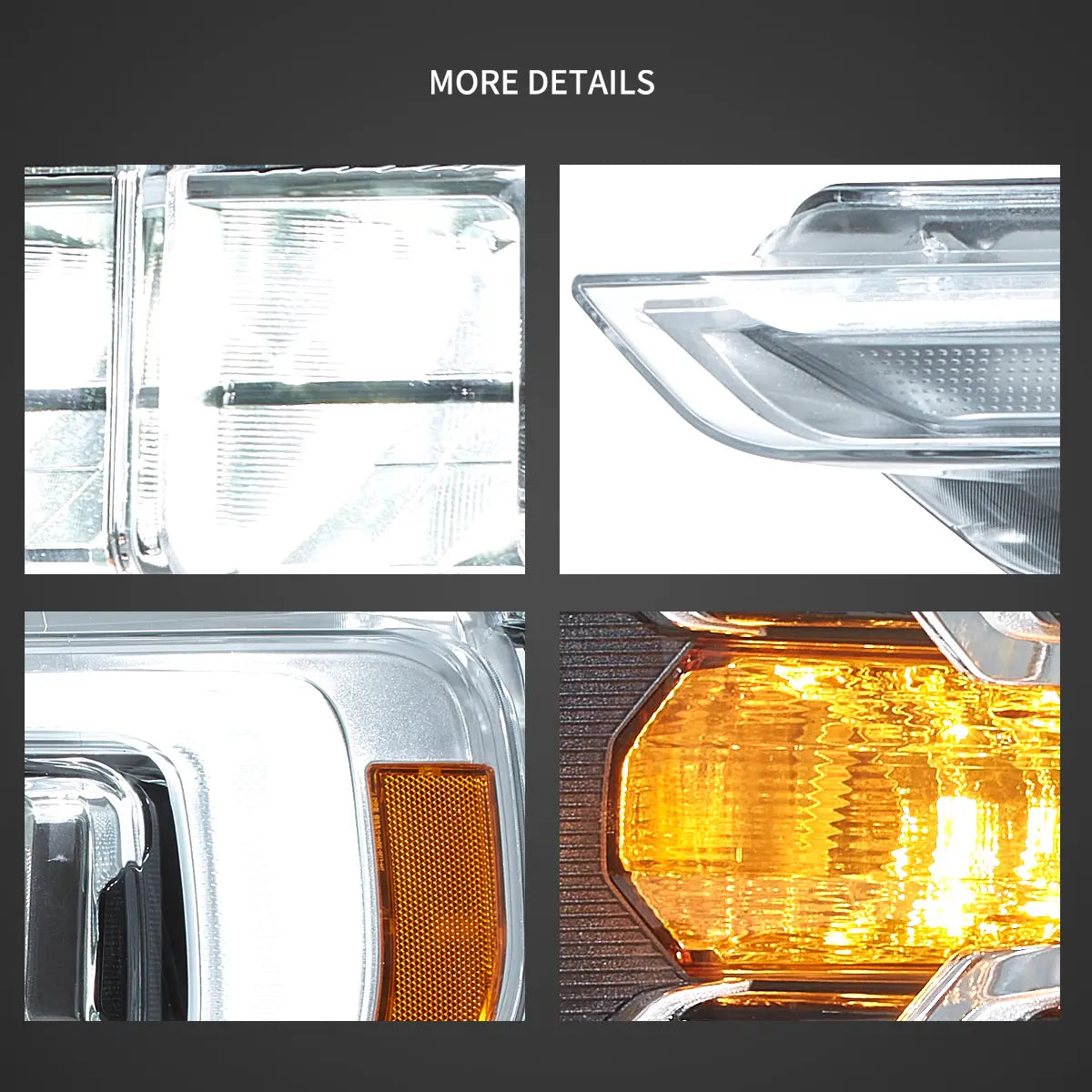

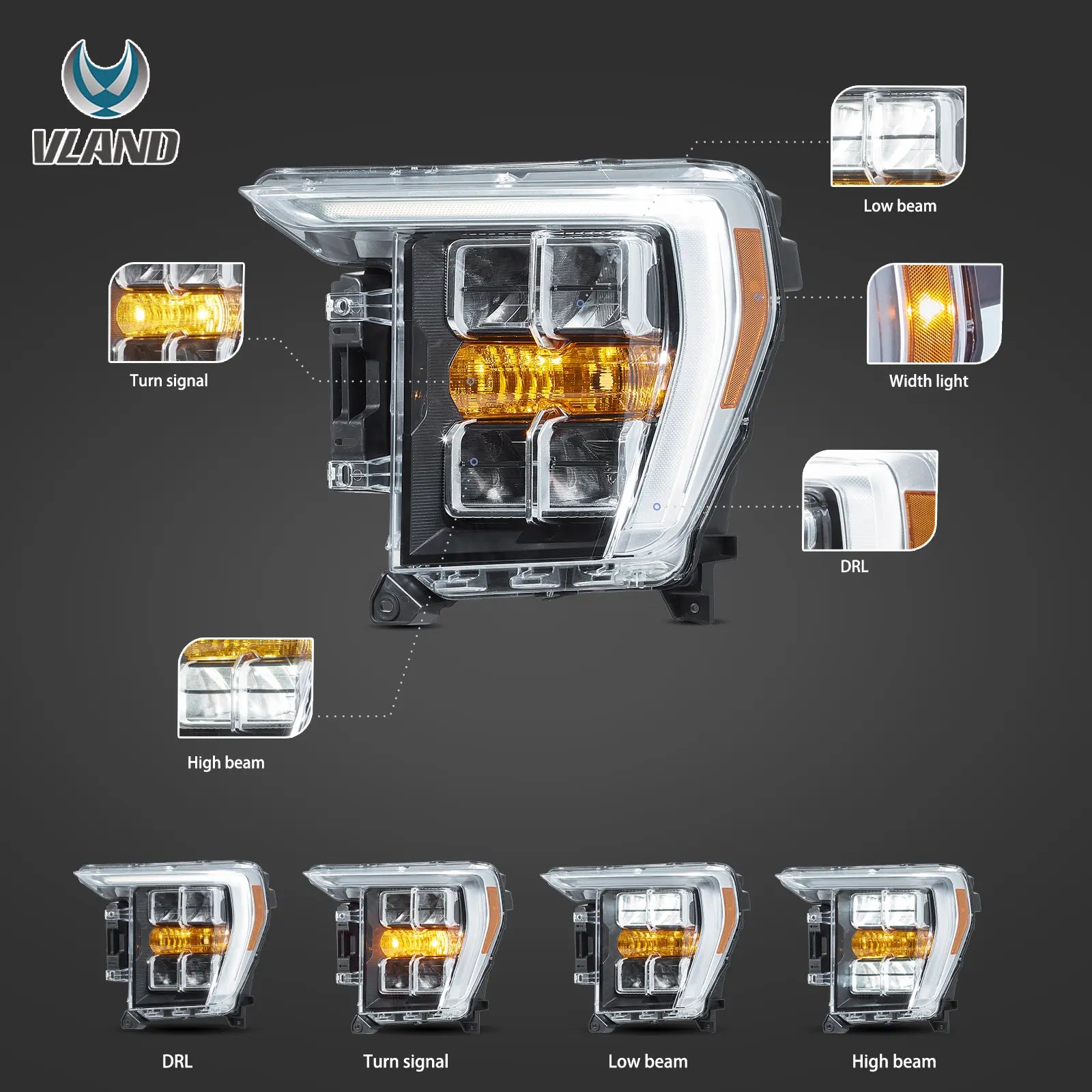

Chrome/amber OEM-style appearance with LED reflector low/high beams, white DRL, and OE amber turn signals. Direct plug-and-play for halogen-equipped 2021–2024 F-150 (excludes Lightning & Raptor).
Why you’ll love these

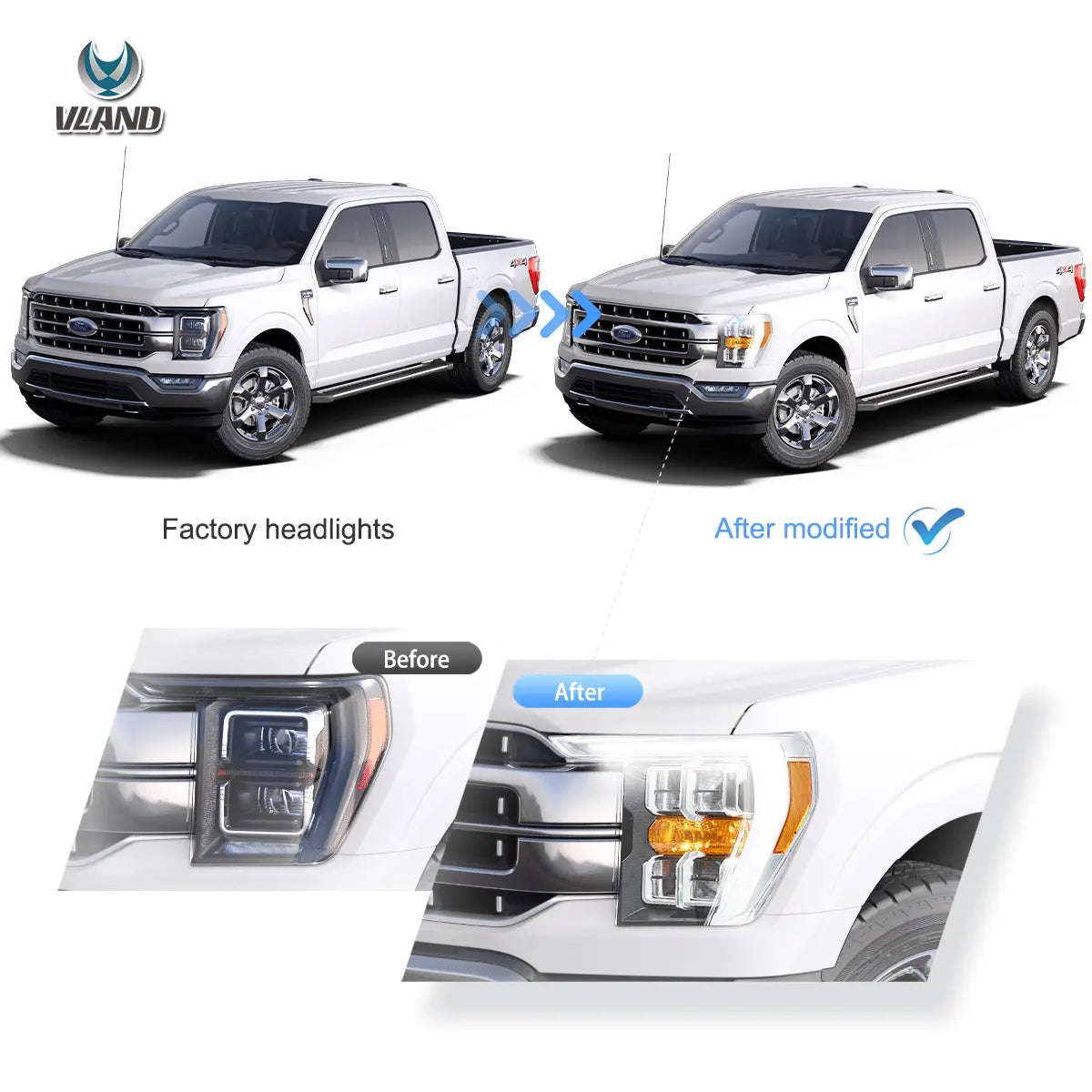

- Classic look, modern light — chrome housing and amber reflector keep the factory vibe with a clear, bright LED output.
- LED reflector dual-beam for both low and high, delivering a focused beam pattern and crisp cut-off.
- True plug-and-play — OE connectors, no coding or drilling; includes a DRL fuse tap for halogen trucks.

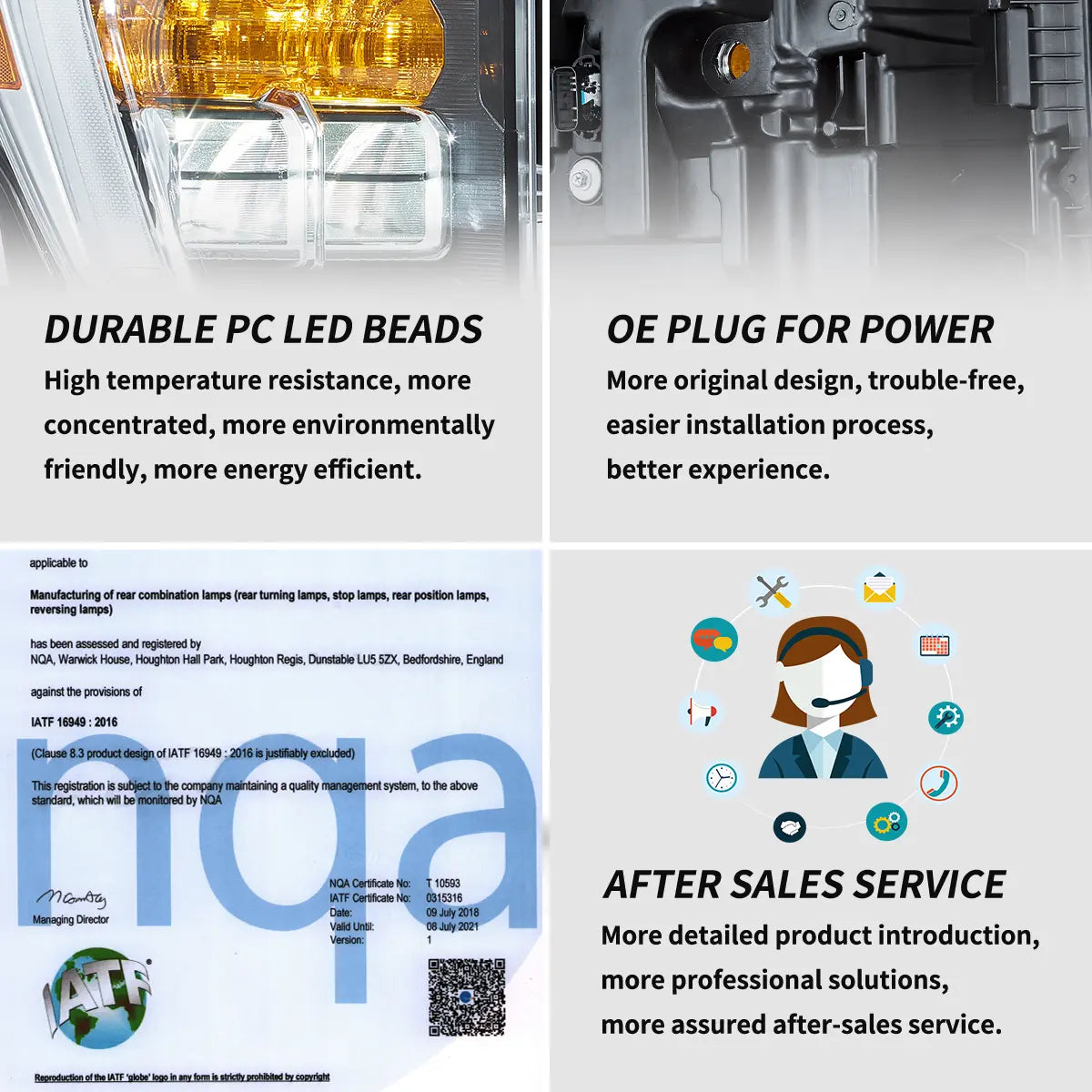

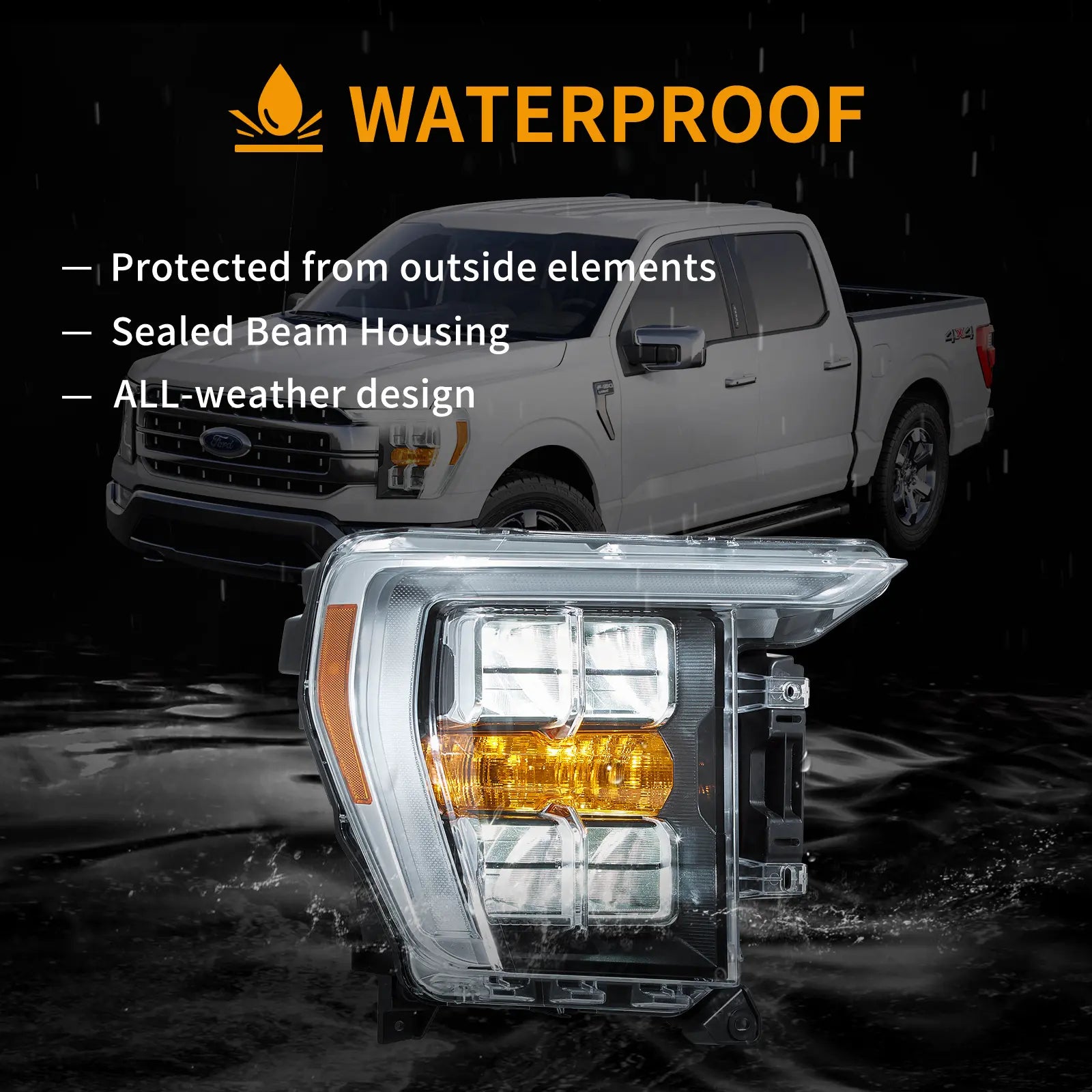

- Built to last — PP/ABS housing, clear PC lens, IP67 sealing for dust/water resistance.
- Road-legal — DOT/SAE and FMVSS 108 compliant; produced under IATF 16949 & ISO 9001.
Exact fitment
- Ford F-150 (14th Gen) — model years 2021–2024, all cabs/trims with factory halogen headlights.
Not compatible: F-150 Lightning, F-150 Raptor, or trucks originally equipped with full-LED headlights.
LHD / RHD: both available — select your region at checkout.

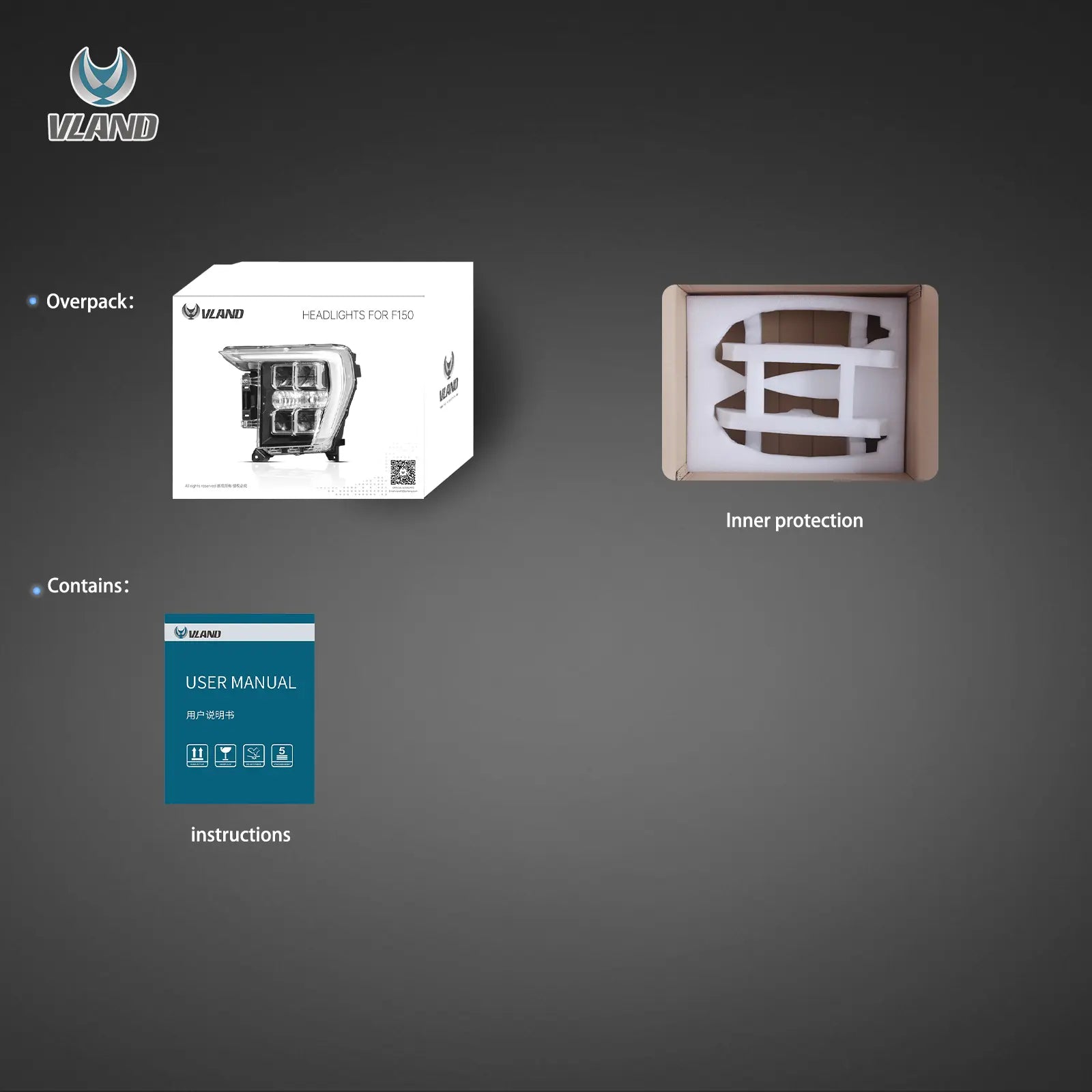

What’s in the box
- 1 × Left (driver) LED headlight
- 1 × Right (passenger) LED headlight
- Plug-and-play harness + DRL fuse tap (for halogen trucks)
- User / quick-install guide

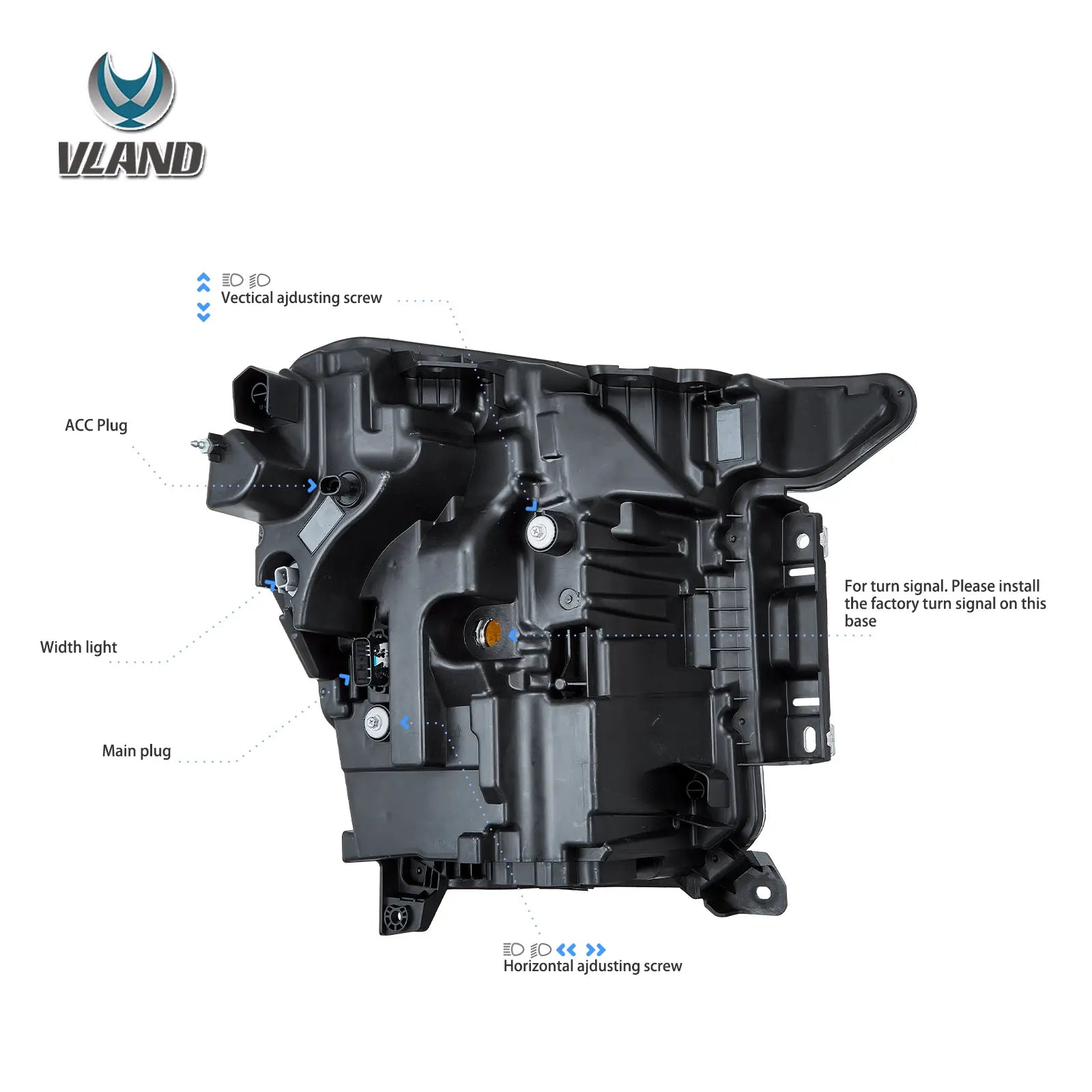

Install (plug-and-play)
- Remove the OE headlamps and retain factory clips/fasteners.
- Connect OE multi-pin plugs to each new assembly and mount to factory points.
- For halogen trucks, route the included DRL fuse tap to the designated slot in the fuse panel.
- Re-use your OE amber turn-signal bulb in the new housing.
- Power on to verify low/high, DRL, and turn operation; aim using the built-in adjusters.
Professional installation recommended.
Tech specs
| Vehicle | Ford F-150 (14th Gen) 2021–2024 — halogen-equipped trucks |
|---|---|
| Lamp type | LED reflector dual-beam (low/high) |
| DRL | LED (white) |
| Turn signal | Re-uses factory bulb (amber) |
| Housing / lens | Chrome PP/ABS housing; clear polycarbonate (PC) lens; IP67 sealed |
| Reflector | Amber |
| Color temperature | ~6500–7000 K |
| LHD / RHD | Both available |
| Weight / box | Net ≈ 10 kg; Gross ≈ 12.61 kg / ~65 × 54 × 50 cm |
| Compliance | DOT/SAE, FMVSS 108 compliant |
| Warranty | 1 year from purchase date |
OEM & parts cross-references
OEM (examples): ML3Z-13008-K (LH, halogen), ML3Z-13008-J (RH, halogen).
ABPA Partslink: FO2502409 (LH, halogen), FO2503409 (RH, halogen); FO2502418 (LH, LED dual projector), FO2503418 (RH, LED dual projector).
FAQs
Will these fit trucks with factory LED headlights? No — these are designed for trucks that left the factory with halogen headlights.
Do they fit the Lightning or Raptor? No — they are not compatible with F-150 Lightning or F-150 Raptor.
Do I need new turn-signal bulbs? No — you re-use the OE amber bulb.
Any coding required? No. Connect the OE plugs and the included DRL fuse tap (halogen trucks).
Are they road-legal? Yes — they meet DOT/SAE and FMVSS 108 requirements.
