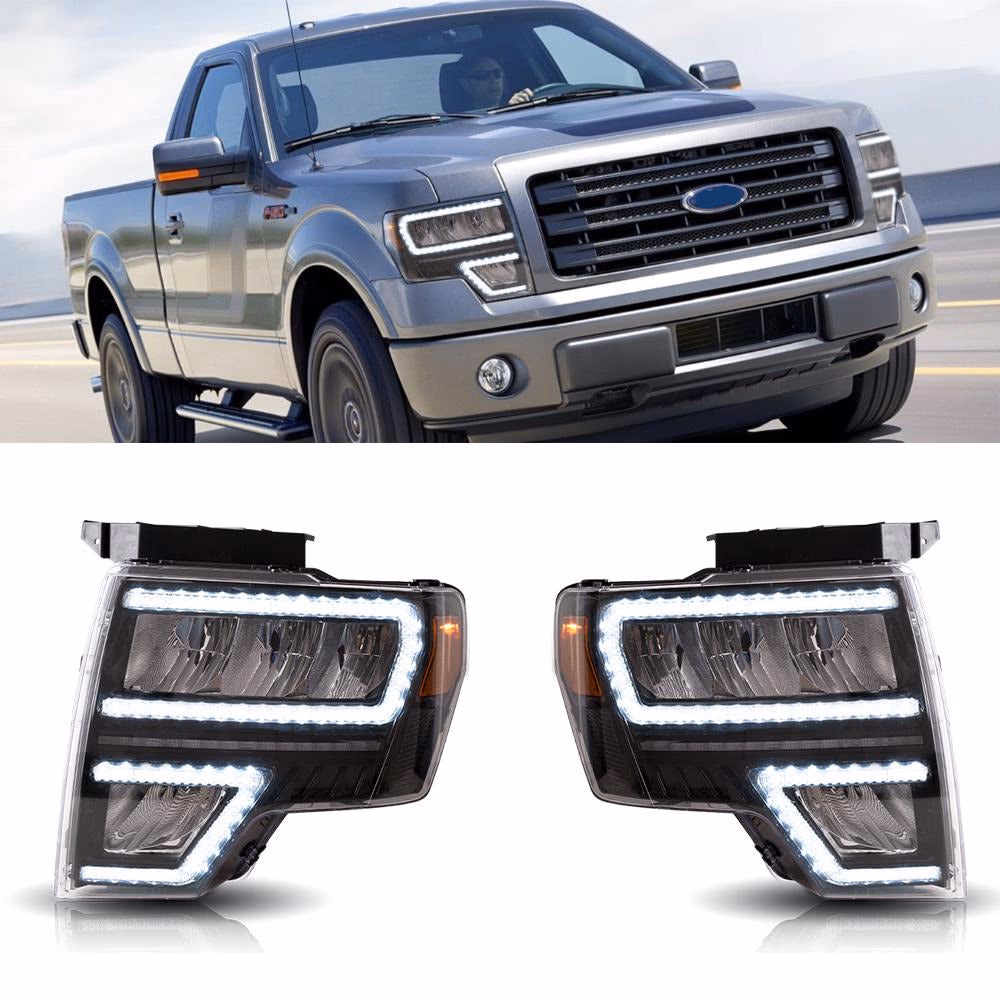

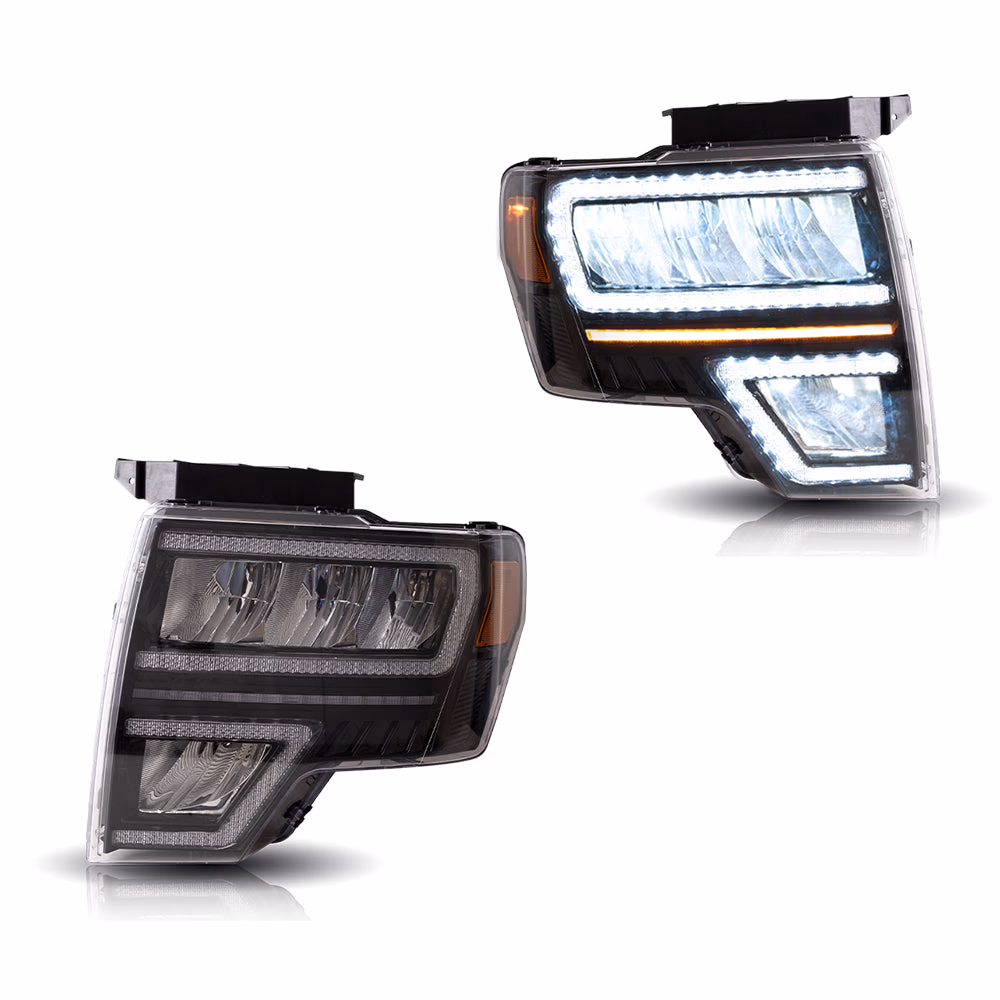

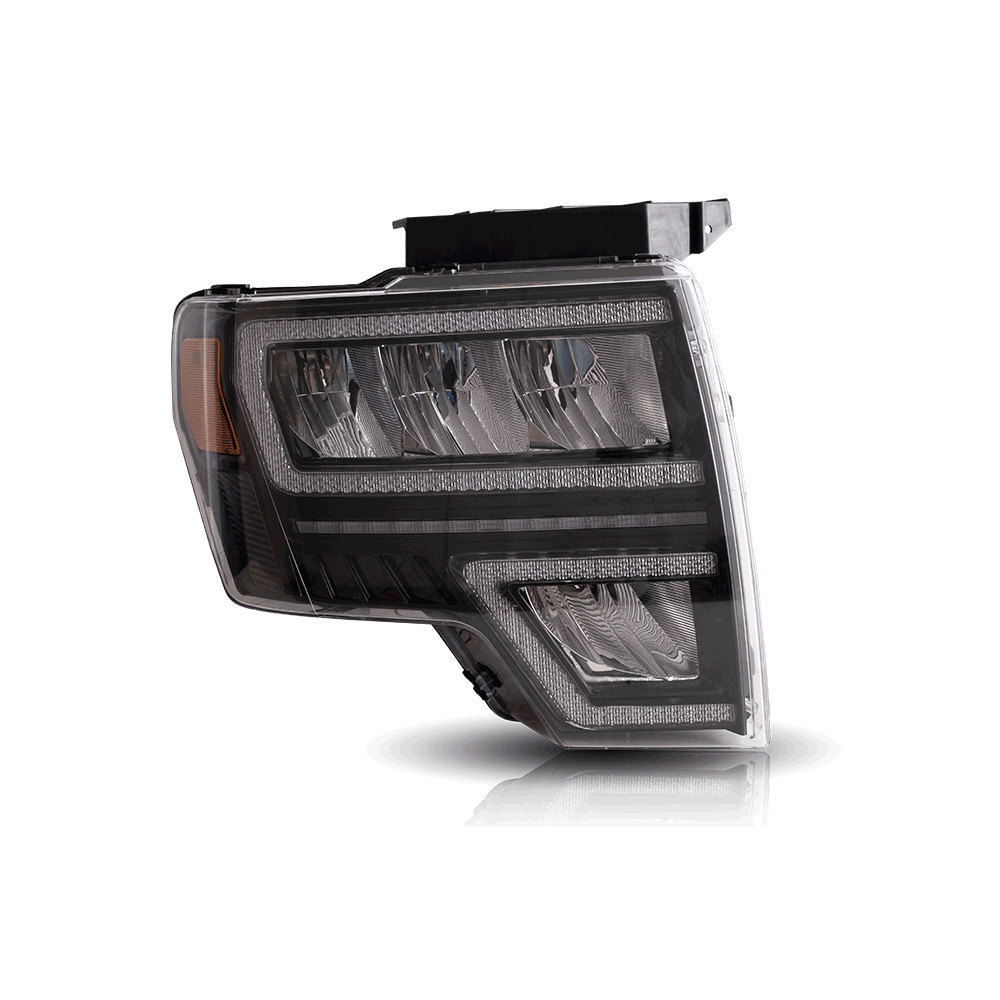

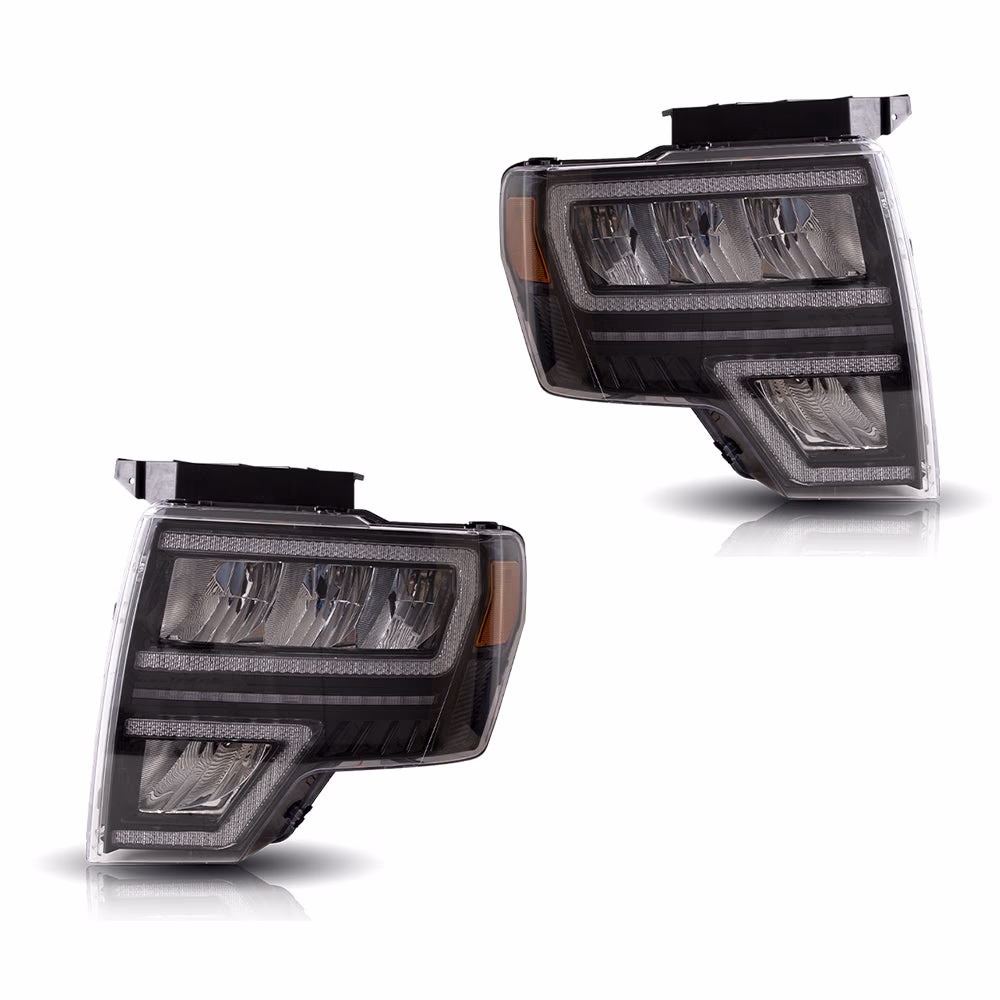

VLAND LED Headlights — Ford F-150 (2009–2014, 12th Gen)
Full-LED reflector low/high beams, white DRL, amber sequential turn signals, and welcome animation. plug-and-play upgrade for halogen-equipped 12th-gen F-150.
Why you’ll love these
- Full LED, no bulbs needed — integrated LED reflector optics for both low and high beam.

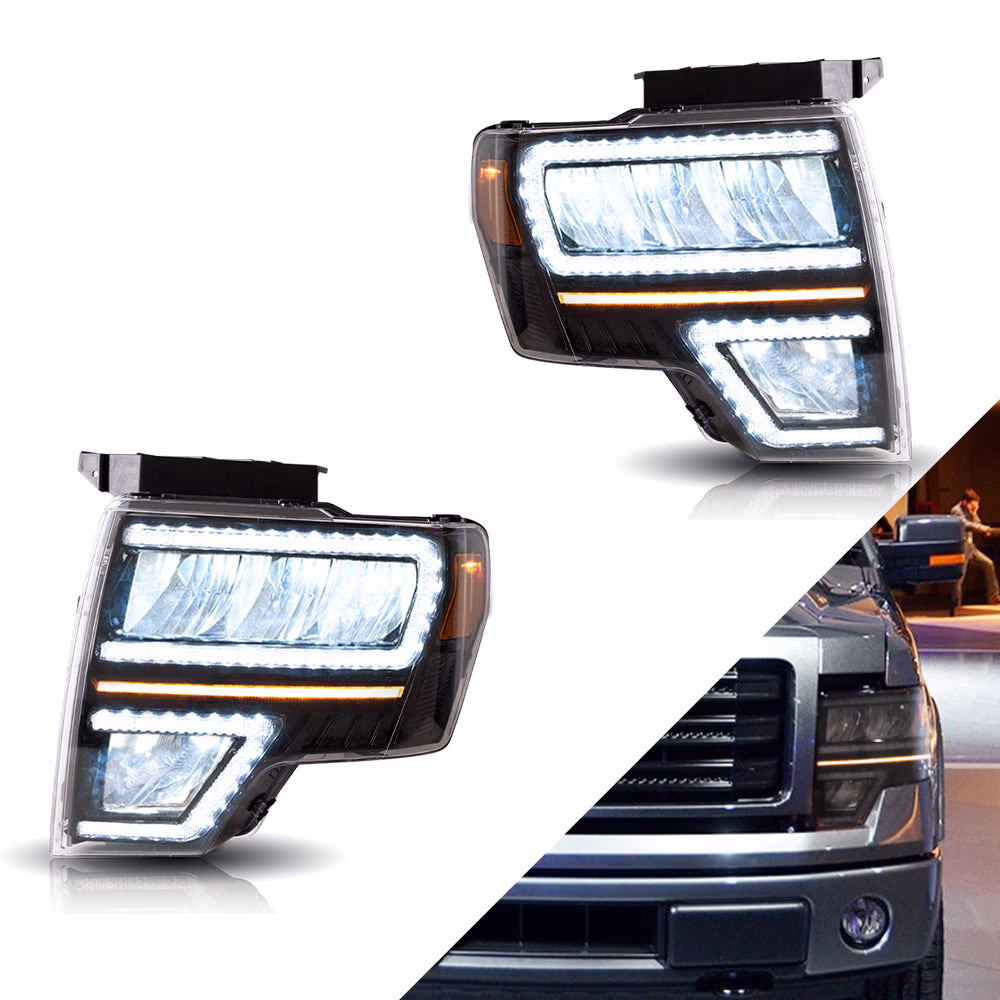

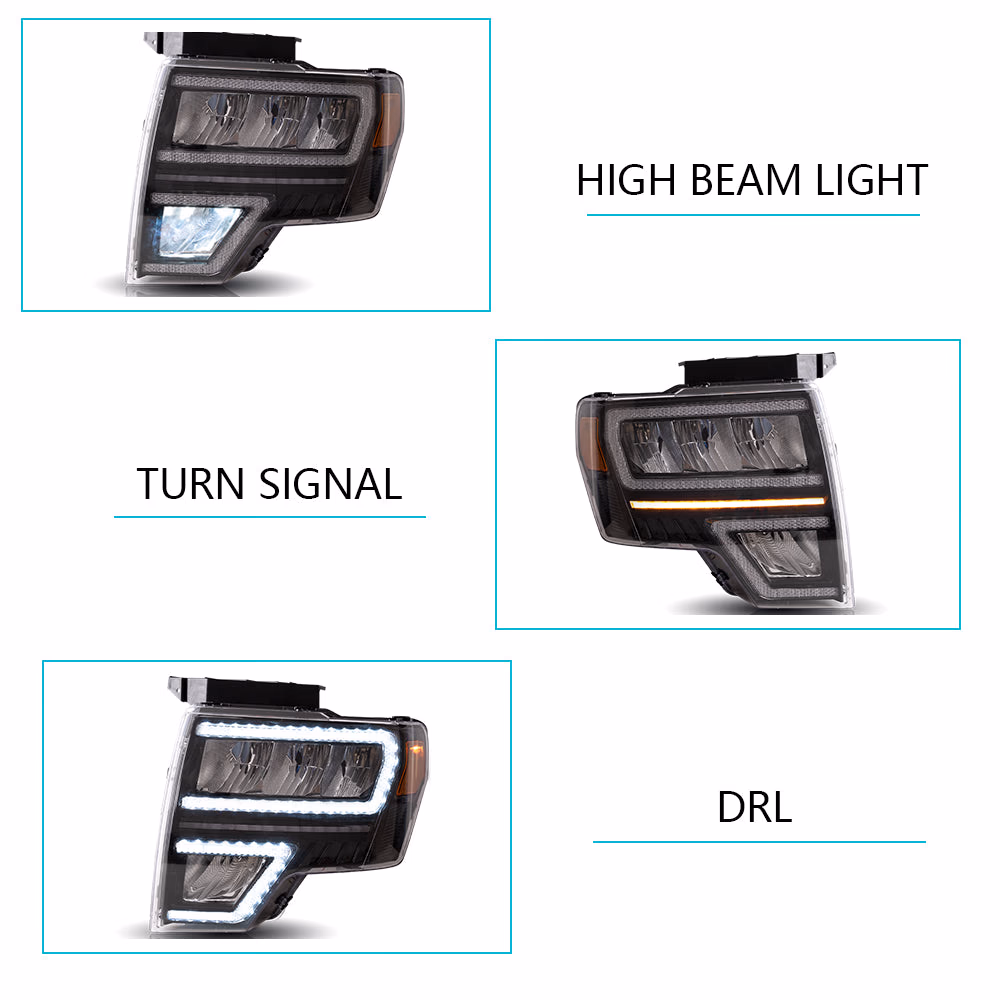

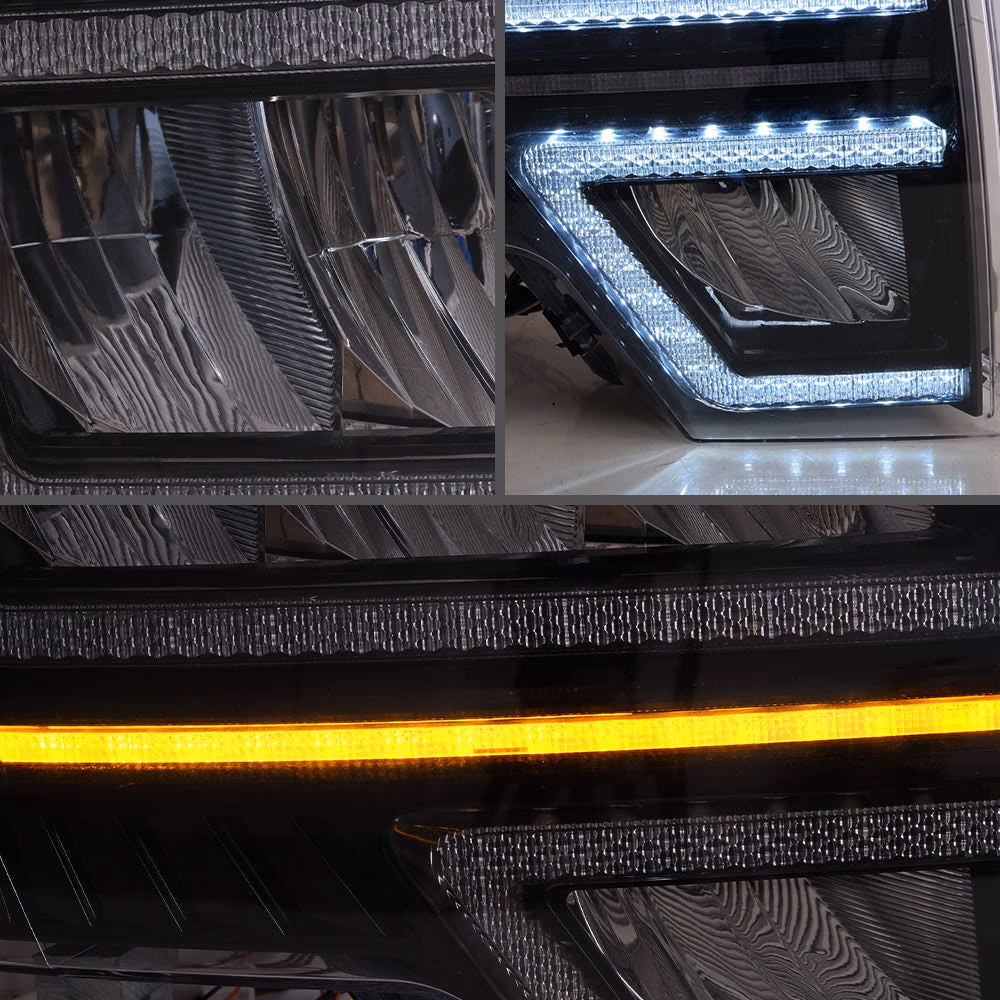

- Modern signature — crisp white DRL, smooth sequential amber turn signals, and start-up “breathing” animation.
- Direct OEM replacement — OE connectors and included converters; no cutting, coding, or drilling.
- Built to last — chrome inner, clear PC lens, ABS housing, IP67 sealed.
- Certified — DOT/SAE compliant (FMVSS 108). Manufactured under IATF 16949 & ISO 9001.
Exact fitment
Ford F-150 (12th Gen) — model years 2009–2014; trims including XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, SVT Raptor, Harley-Davidson.
- Headlight type: vehicles originally equipped with halogen headlights.
- Not for: F-250/F-350 or other platforms.
Options
- Side marker reflector: Amber or Clear.
- Finish: Chrome inner with clear lens.
What’s in the box
- 1 × Left (driver) headlight
- 1 × Right (passenger) headlight
- 2 × plug adapters (converters)
- User / quick install guide
Install (plug-and-play)
- Remove OE assemblies; transfer any clips/grommets if needed.

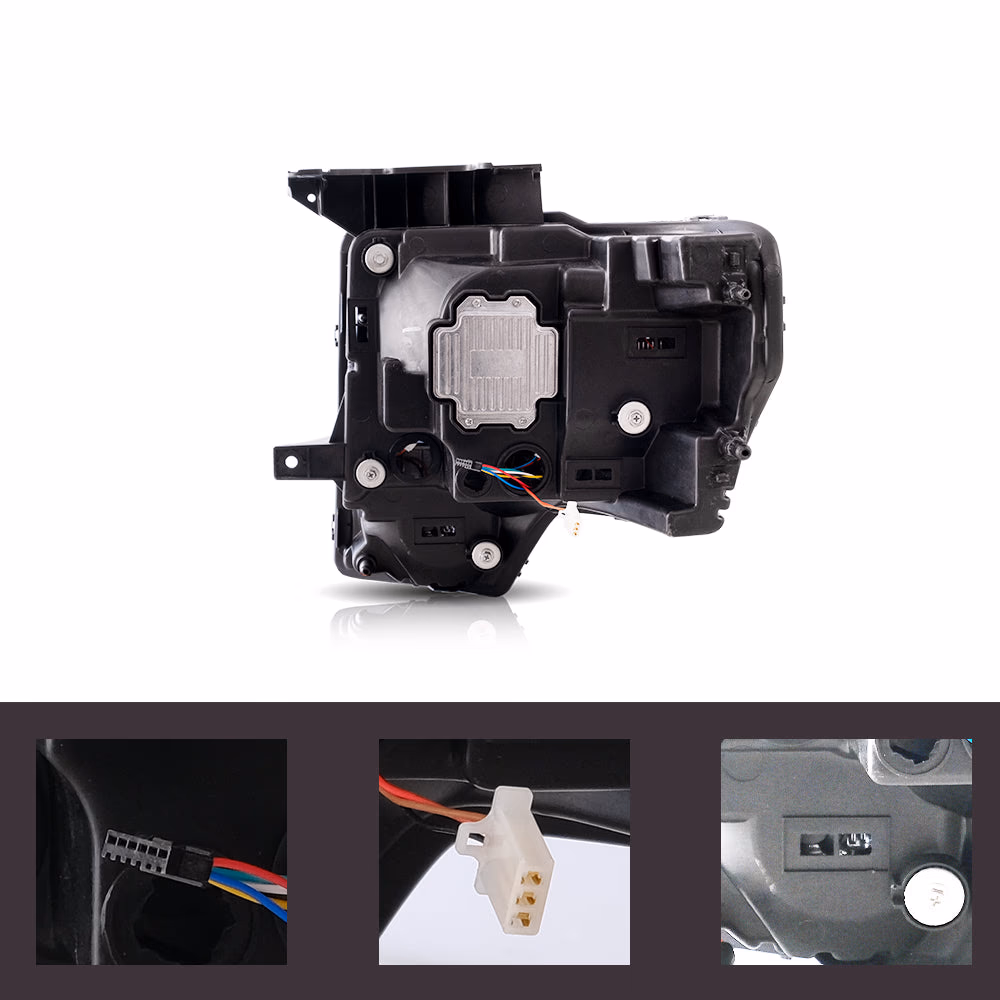

- Connect factory multi-pin plugs and seat each unit on stock mounts.
- Power on to verify low/high, DRL, sequential turns, and the welcome animation.
Professional installation recommended.
Tech specs
| Platform | Ford F-150 (12th Gen) 2009–2014 |
|---|---|

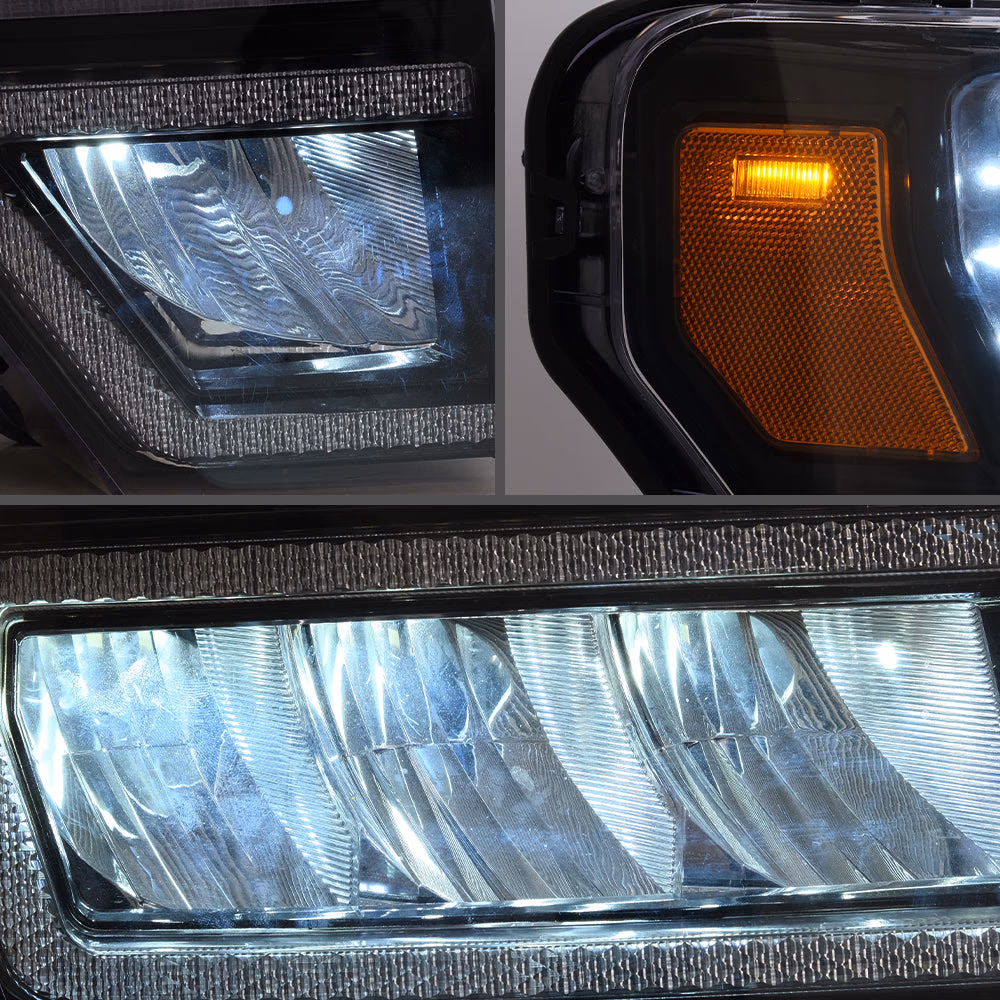

| Optics | LED reflector low/high (integrated LED light sources) |
| DRL | LED (white) with breathing/welcome start-up |
| Turn signal | LED (amber, sequential) |
| Housing / lens | ABS housing (chrome inner) / Clear polycarbonate (PC) lens |
| Ingress rating | IP67 dust/water-resistant |
| Compliance | DOT/SAE (FMVSS 108) |
| Quality systems | IATF 16949, ISO 9001 |
| Package size / weight | ≈ 52.2 × 47 × 43.5 cm / Gross ≈ 10.6 kg |
| Warranty | 1 year from purchase date |
OEM & parts cross-references
OEM (examples): DL3Z-13008-A/B, DL3Z-13008-EB/EC, CL3Z-13008-A/B, FR560B1A12SD6V.
Partslink (examples): FO2503287, FO2502287, FO2503289, FO2502289.
FAQs
Do I need bulbs? No. These are full LED units with integrated emitters.
Will they fit my trim? Yes — all 2009–2014 F-150 halogen models including SVT Raptor.
Any coding required? No — plug-and-play with OE connectors; converters included.
