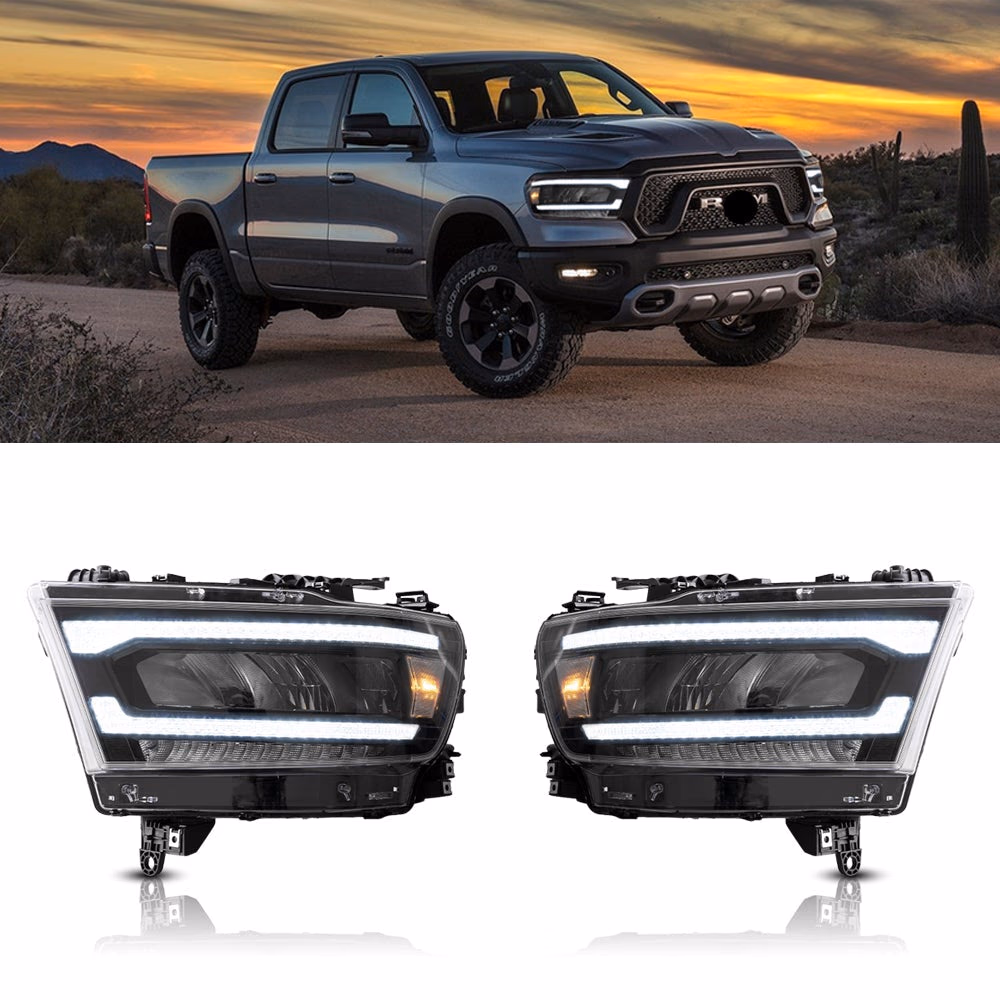

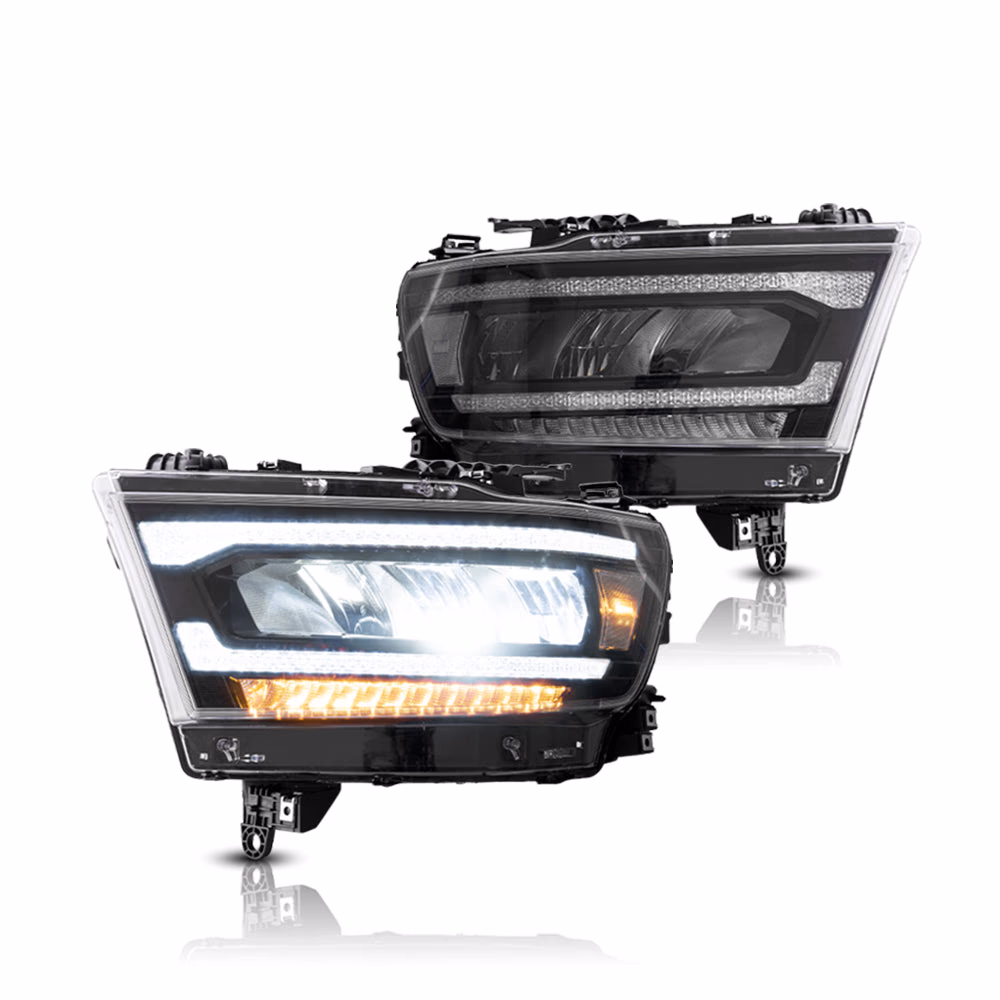

VLAND Full LED Headlights — Ram 1500 (DT) 2019–2024

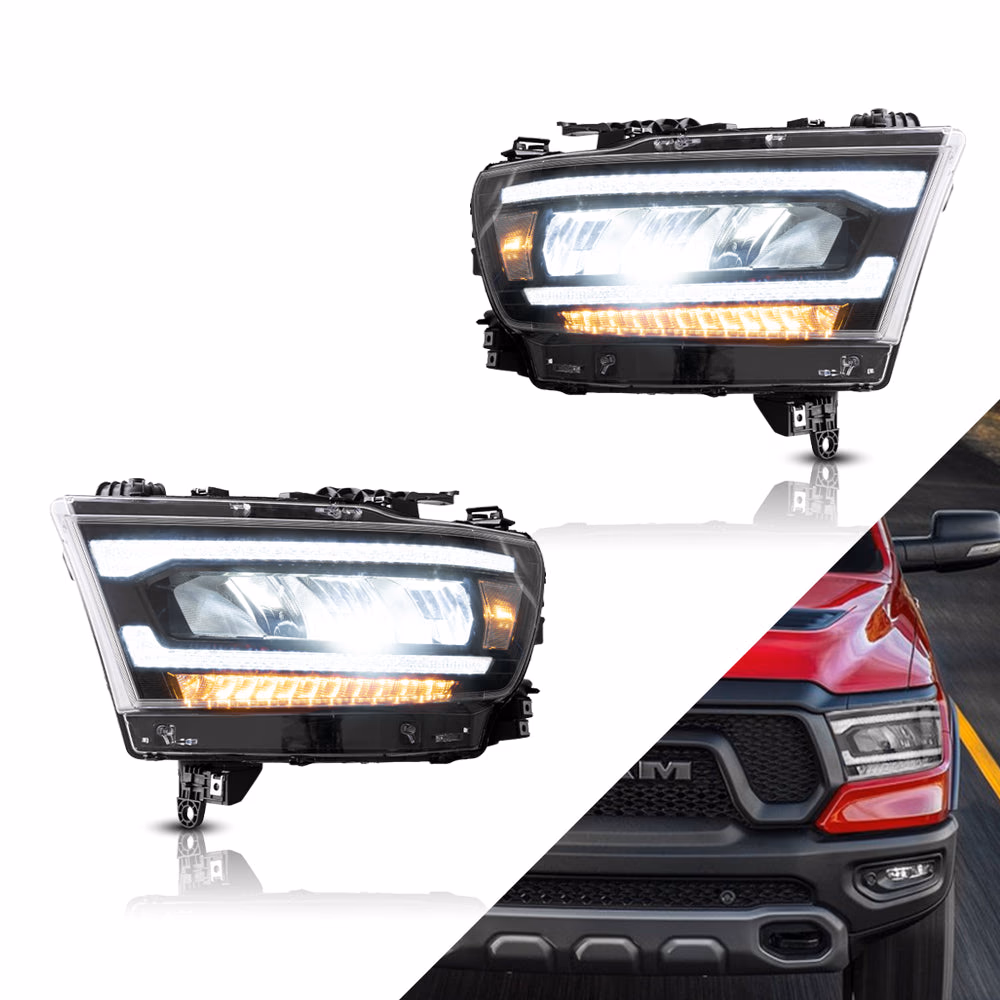

Full LED headlamps with crisp low/high output, white DRL, dynamic start-up, and amber sequential turns — plug-and-play for most DT trims.
Why you’ll love these

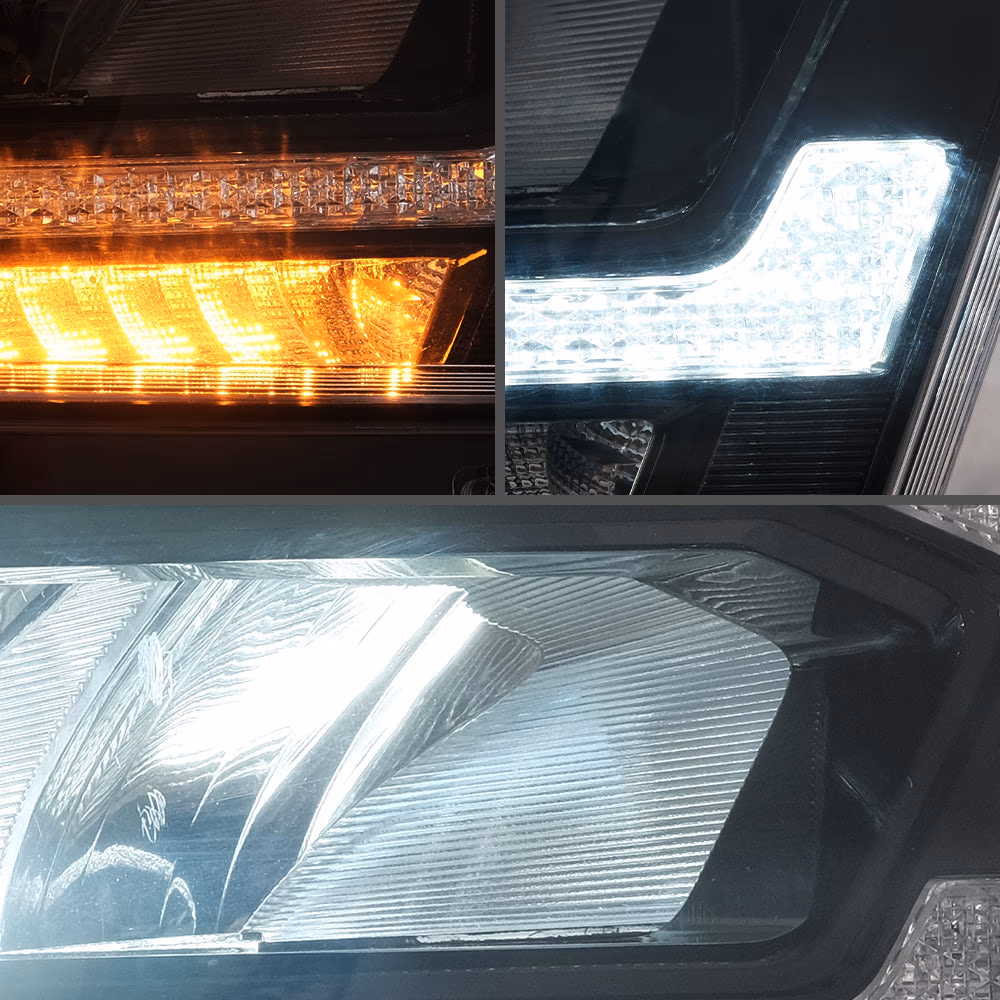

- Full LED system with tasteful bi-LED low/high for confident night visibility.
- Dynamic start-up on lock/unlock and amber sequential indicators.
- Direct replacement on DT platform — no bulbs required.

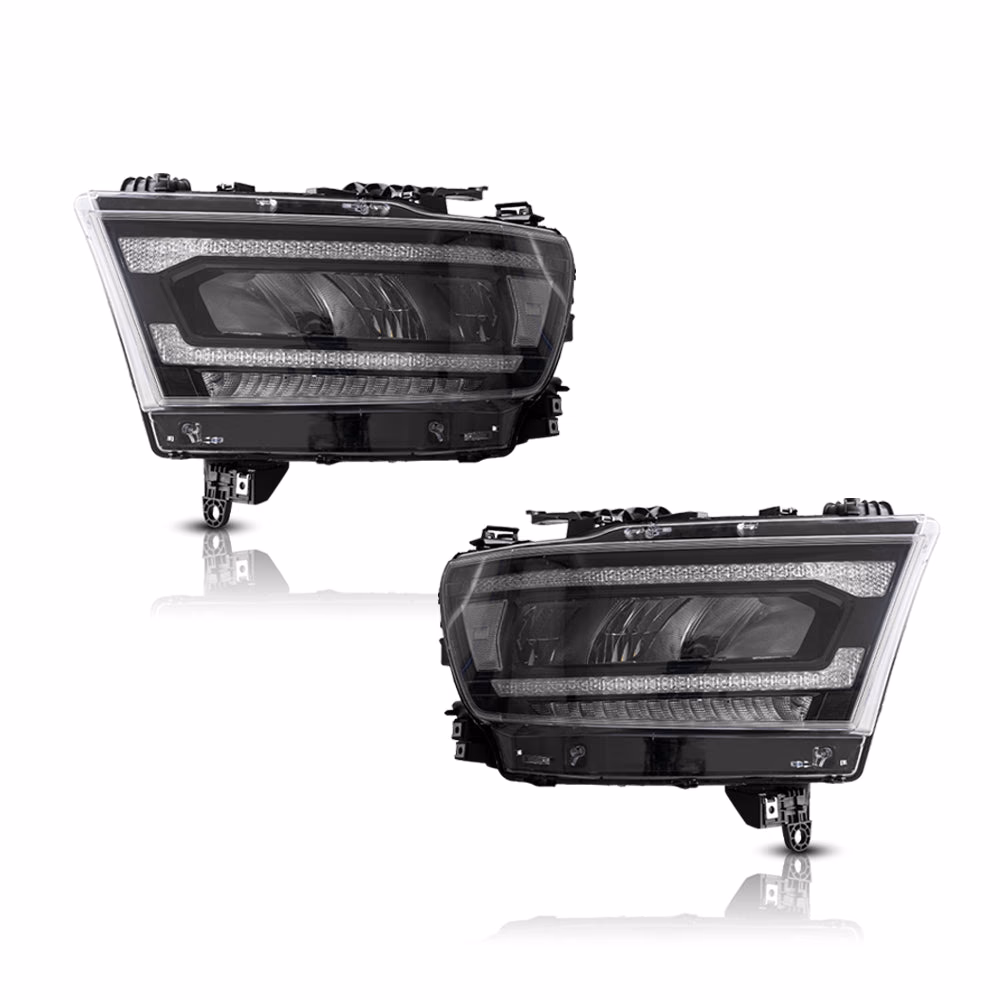

- Style choices: Amber reflector or Clear reflector, black housing/clear lens.
- Built to last: IP67 sealing, impact-resistant PC lens; produced under IATF 16949 & ISO 9001.
- Markings: DOT/SAE (FMVSS 108); E-mark availability varies by market.
- 1-year VLAND warranty from delivery with friendly support.
Exact fitment
Fits Ram 1500 5th Gen (DT) — model years 2019–2024.
- Compatible trims: Tradesman, Tradesman HFE, Big Horn, Lone Star, Laramie*, Rebel*
- Not compatible: Classic (DS), TRX, Limited, Limited Longhorn
*Laramie/Rebel typically require an adapter harness due to factory equipment differences.
What’s in the box
- 1 × Left (driver) headlight
- 1 × Right (passenger) headlight
- User/quick install guide
Install & wiring (plug-and-play)
- Remove OE units using factory mount points; transfer any clips as needed.

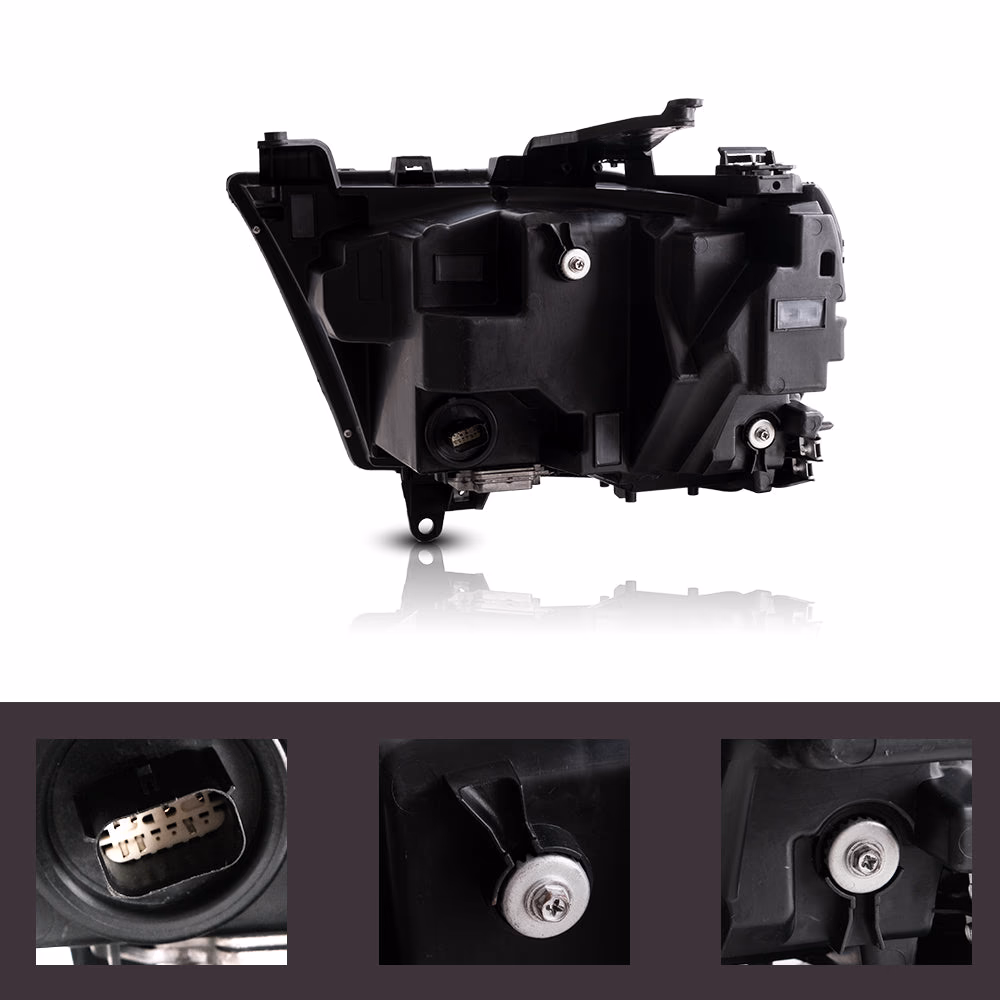

- Connect the OE multi-pin plug to each VLAND headlight and mount securely.
- If your truck is Laramie or Rebel, use the appropriate adapter harness (sold separately).
- Power on to verify low/high, DRL start-up, and sequential indicators; aim beams with built-in adjusters.
Tip: All functions are integrated LEDs — no bulbs to buy. If a bulb-check message appears, an inline decoder resolves it.
About VLAND
- In-house design & tooling with strict QC.
- Certifications & systems: DOT/SAE, CCC; built under IATF 16949 & ISO 9001.
- Clean OEM-plus styling with modern DRL signature and sequential signaling.
Tech specs
| Styles | Amber reflector / Clear reflector |
|---|---|

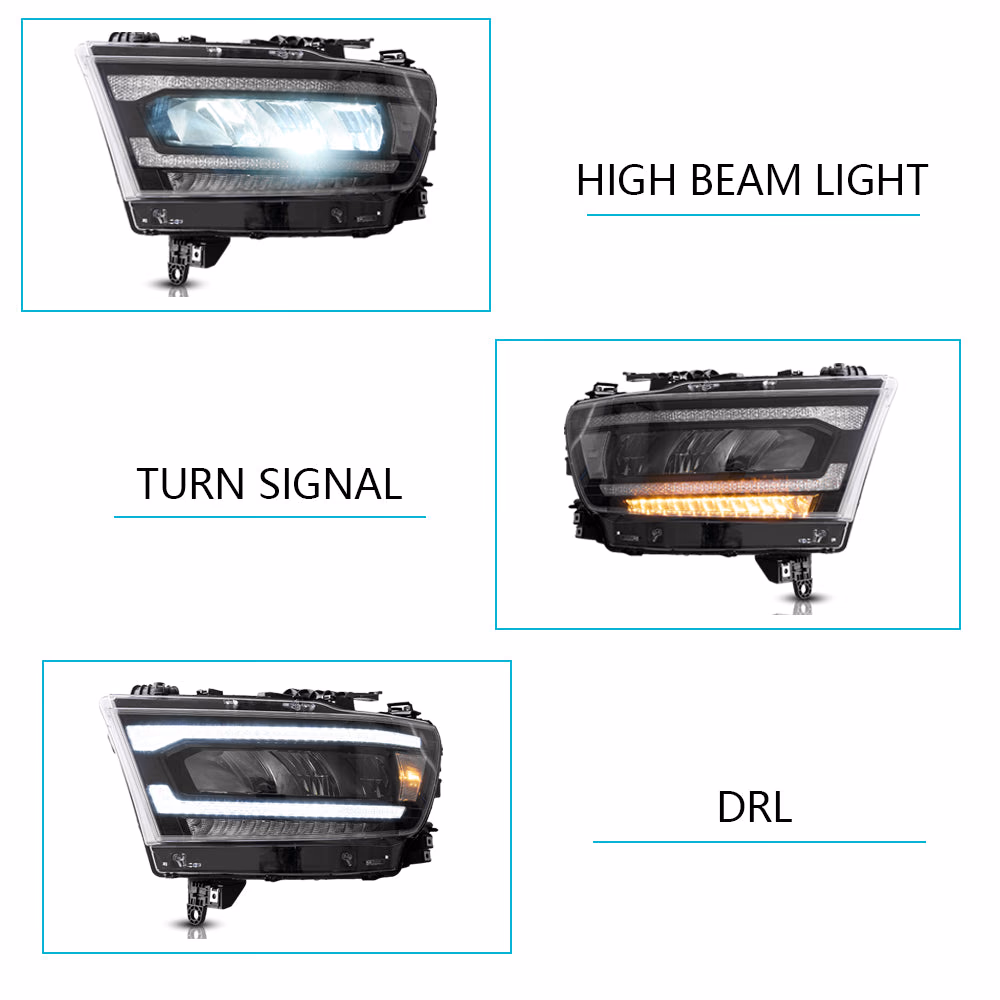

| Low/High | Bi-LED (integrated) |
| DRL | LED (white) with start-up animation |
| Turn signal | LED (amber, sequential) |
| Housing / Lens | Black PP housing / Clear PC lens |
| Ingress rating | IP67 |
| Color temperature | ~6500–7000 K |
| Weight / Box | Net ≈ 9.0 kg; Gross ≈ 12.89 kg / 64.3 × 61.5 × 44 cm |
| Warranty | 1 year from delivery date |
OEM & parts cross-references
Left (LH): 68477265AA, 68316085AG, 68316081AH, 68316083AH, 68316087AH, 68316089AH.
Right (RH): 68477264AA, 68316084AG, 68316080AH, 68316082AH, 68316086AH, 68316088AH.
Partslink (examples): CH2502320, CH2502321, CH2502332, CH2502328, CH2502329, CH2503320, CH2503321, CH2503332, CH2503328, CH2503329.
FAQs
Will these fit my truck? Yes — Ram 1500 DT (2019–2024). Not for Classic (DS), TRX, Limited, or Limited Longhorn.
Do I need bulbs? No — these are full LED assemblies.
Do I need an adapter? Usually plug-and-play; Laramie/Rebel often need a trim-specific adapter harness.
Are they certified? Marked DOT/SAE (FMVSS 108). E-mark availability varies by market. Produced under IATF 16949 & ISO 9001.
What’s the warranty? 1-year manufacturer warranty from the delivery date on non-modified units.
