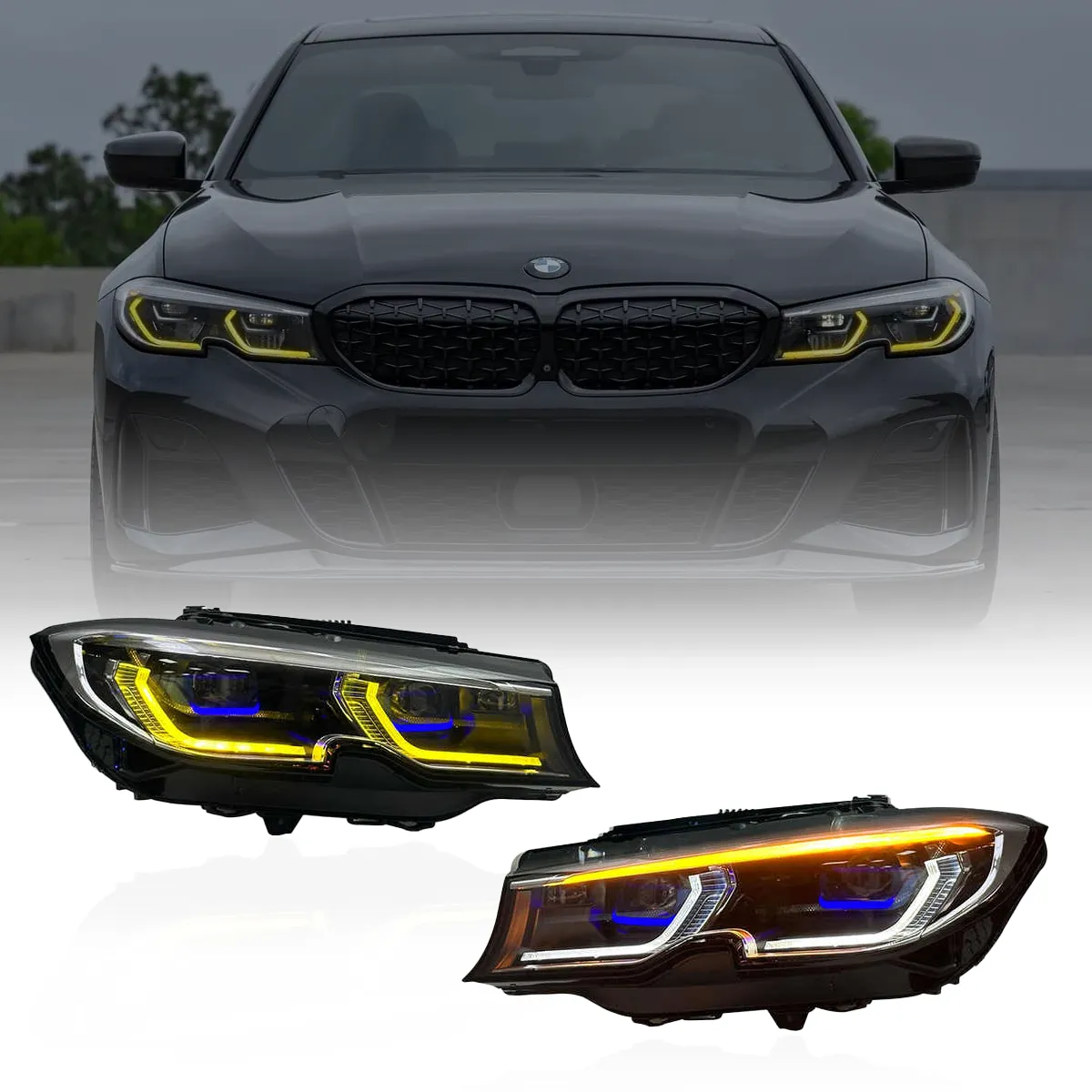

BMW G20/G21 LED Headlights GTS/CSL Style — Yellow/White DRL — 2019-2022
Total Price
Per pair (left & right)
BMW Headlights Price
Ships within 24h
LHD = right-hand traffic (e.g., USA, Germany, France, Spain). RHD = left-hand traffic (e.g., United Kingdom, Ireland).
Product Information
BMW 3 Series G20/G21 LED Headlights adaptive — GTS/CSL Style — Yellow/White DRL — Pre-LCI 2019–2022 — AFS Compatible — OEM Functionality
Pre-LCI retrofit headlamps for G20 Sedan & G21 Touring (2019–2022) in GTS/CSL style. White/Yellow DRL switching, AFS (Adaptive Front-lighting System) support. E-mark approved.
DRL color switch
Flash the high beams 5× to toggle the DRL to Yellow; flash again to return to White.
Highlights
- GTS/CSL style with selectable Yellow / White DRL.
- AFS function supported when vehicle is equipped and original modules are transferred.
- Module-reuse design: transfer the factory headlight control modules; coding is usually required.
- Compatible with 5A2 Standard LED and 552 Adaptive LED (AFS) modules (reuse & code).
- E-mark approval.
- 1-year warranty from delivery.
Exact fitment
- BMW 3 Series G20 Sedan: 2019–2022 (Pre-LCI)
- BMW 3 Series G21 Touring: 2019–2022 (Pre-LCI)
Notes: Reuse OEM modules; coding typically required.
In the box
- 1 × Left LED headlight housing
- 1 × Right LED headlight housing
- Basic install guide
Install & coding
- Remove OE assemblies; transfer mounting hardware if needed.
- Transfer original headlight modules (control/driver units) to the new housings.
- Connect OE harness; secure and aim beams.
- Code the vehicle to clear errors.
Purpose: retrofit/upgrade for 12 V systems. Professional installation/coding recommended.
Tech specs
| Voltage / Power | 12 V / 36 W |
|---|---|
| Output | ~6000 lm (typ.) |
| Color temperature | ~6000 K (white DRL mode) |
| DRL modes | White / Yellow (toggle by flashing high beam 5×) |
| Approval | E-mark |
| Package size | 65 × 35 × 53 cm (pair) |
| Gross weight | ≈ 12 kg (pair) |
| Warranty | 1 year from delivery date |
OEM references
63118496149, 63118496150, 63118496151, 63118496152, 63118496153, 63118496154, 63118496155, 63118496156, 63118496157, 63118496158, 63118496159, 63118496160, 63118496163, 63118496164, 63118496165, 63118496166, 63118496167, 63118496168.
FAQs
Do I need new bulbs? No — the housings are LED-based.
Will AFS work? Yes, when your car has AFS (552) and the original modules are transferred and coded.
Is coding required? Usually yes, to match the new housings and enable functions without errors.
Does this fit Laserlight cars? No.
