BMW 3 Series Tail lights EU GTS Style 2012-2019
Total Price
Per pair (left & right)
BMW 3 Series Tail Lights Price
Ships within 24h
Installation Video
Installation guide for VLAND BMW 3 Series (2012-2019)
Step-by-step video guide showing professional installation techniques and tips for your BMW 3 Series (2012-2019) VLAND lighting upgrade.
Product Information

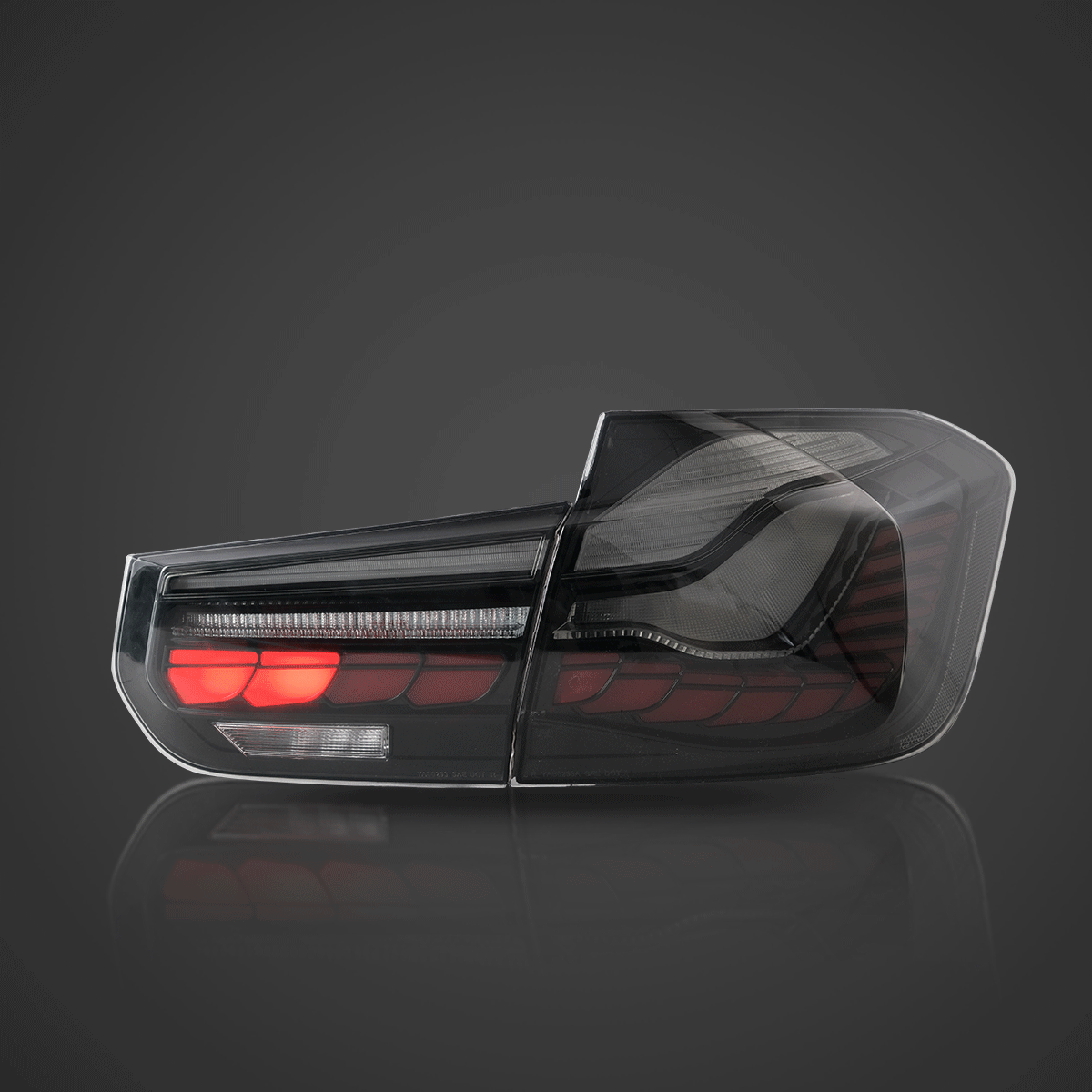

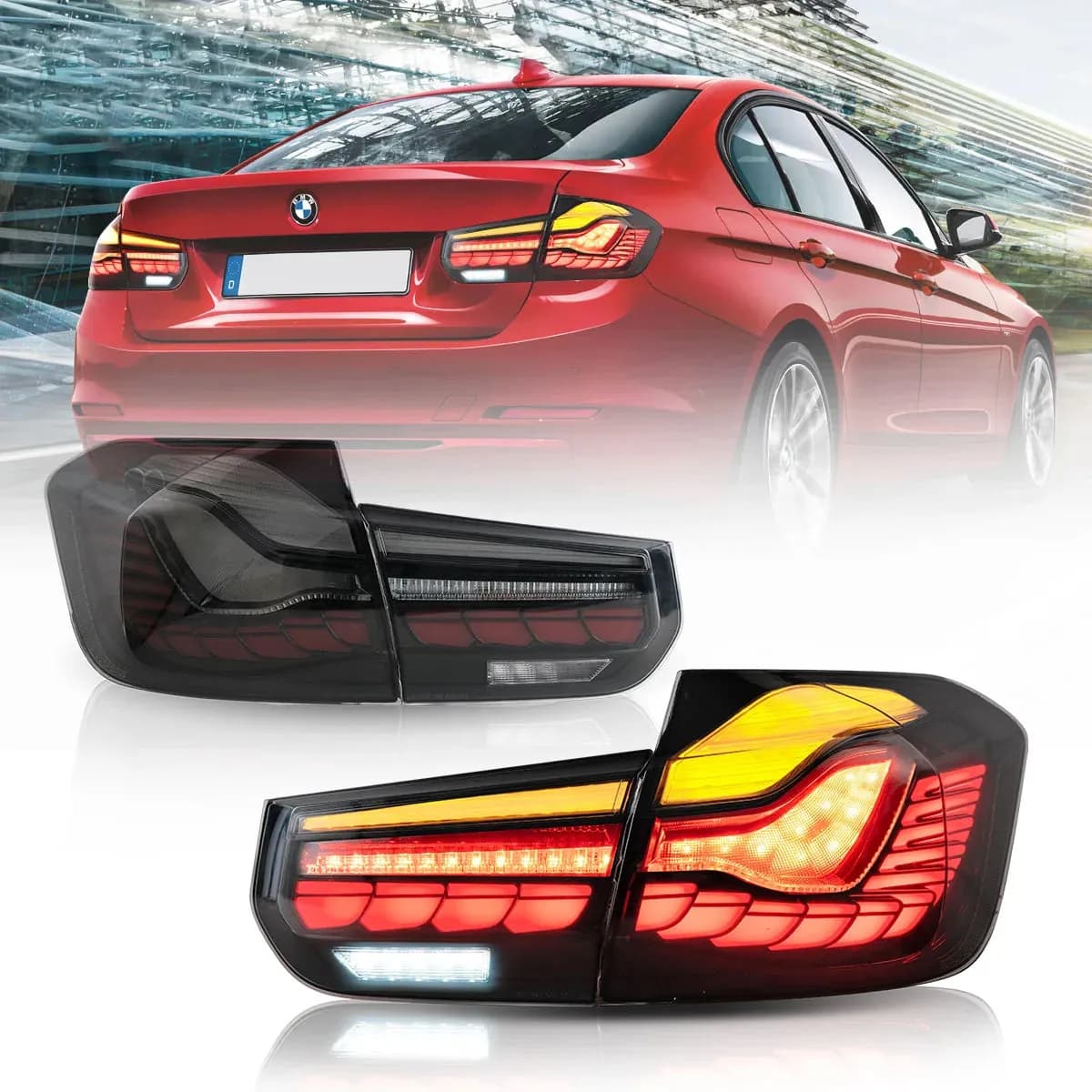

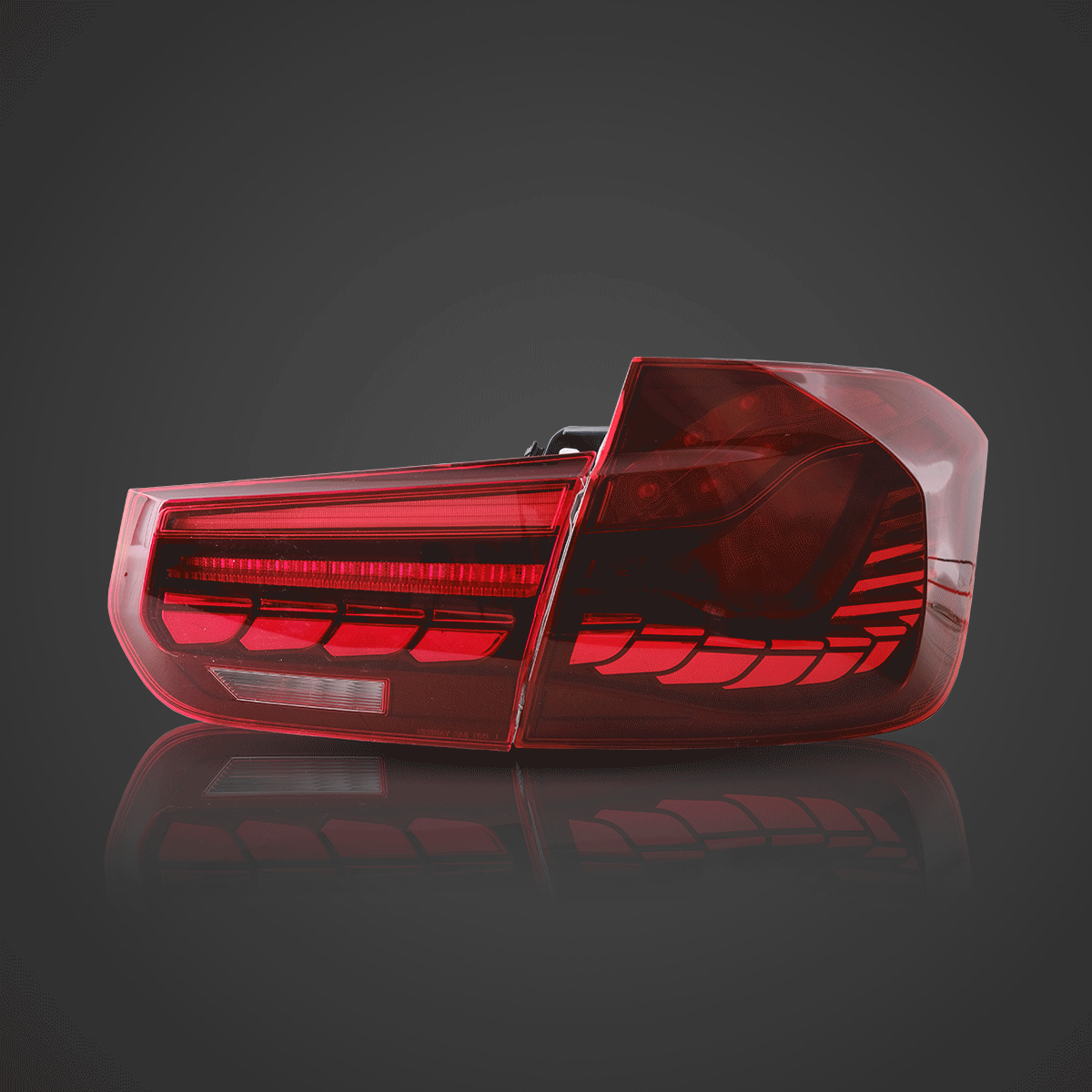

VLAND GTS Style OLED Tail Lights — BMW 3 Series F30 • M3 F80 (2012–2019)
Direct-fit GTS Style OLED rear lamps with animated start-up and amber sequential turns — a clean, plug-and-play upgrade for F30 3-Series and F80 M3 (Pre-LCI & LCI).
Why you’ll love these
- GTS Style OLED signature — uniform red glow with premium 3D depth.

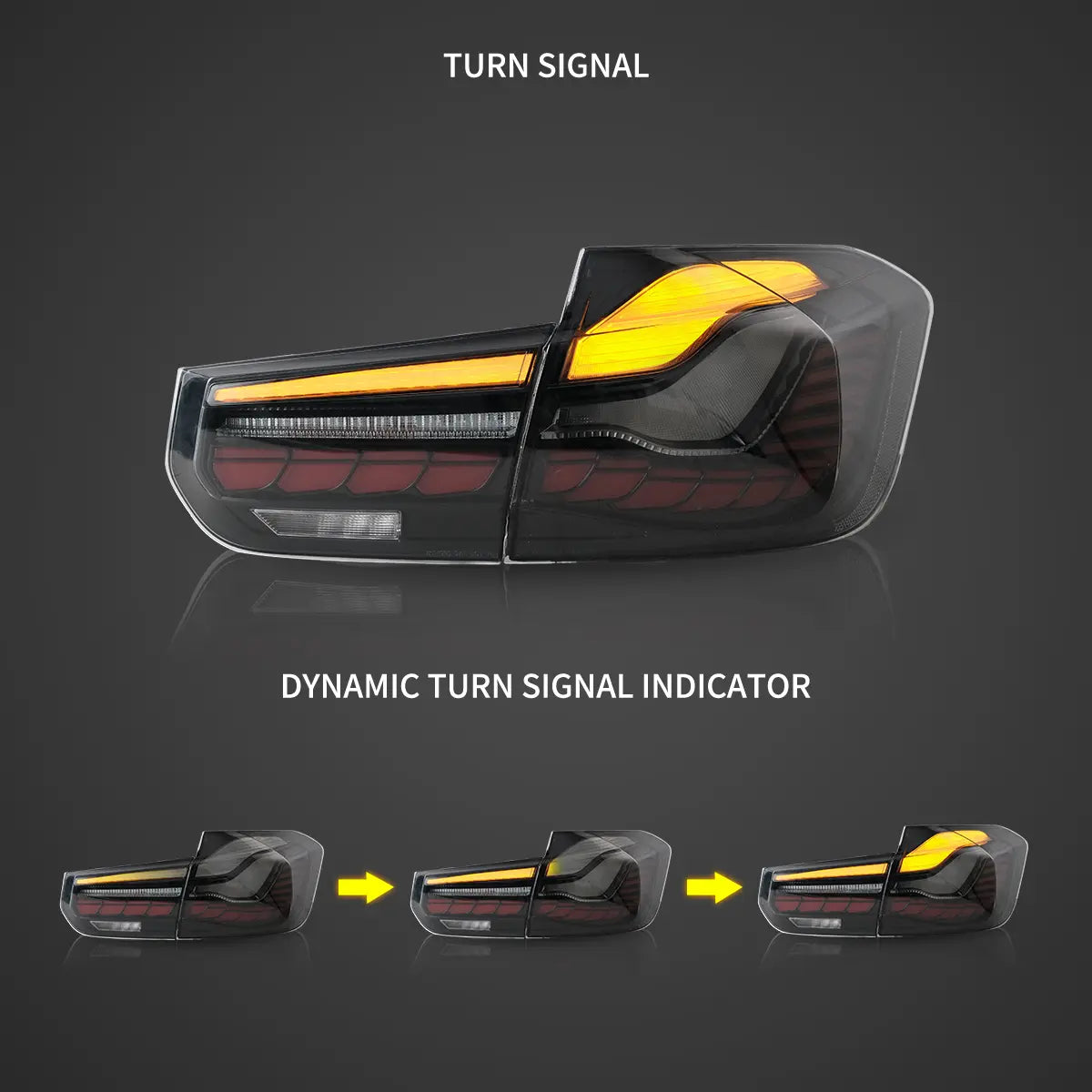

- Dynamic start-up animation + amber sequential indicators to stand out day & night.
- Plug & play OE connectors — same wiring as factory, no bulbs or resistors needed.

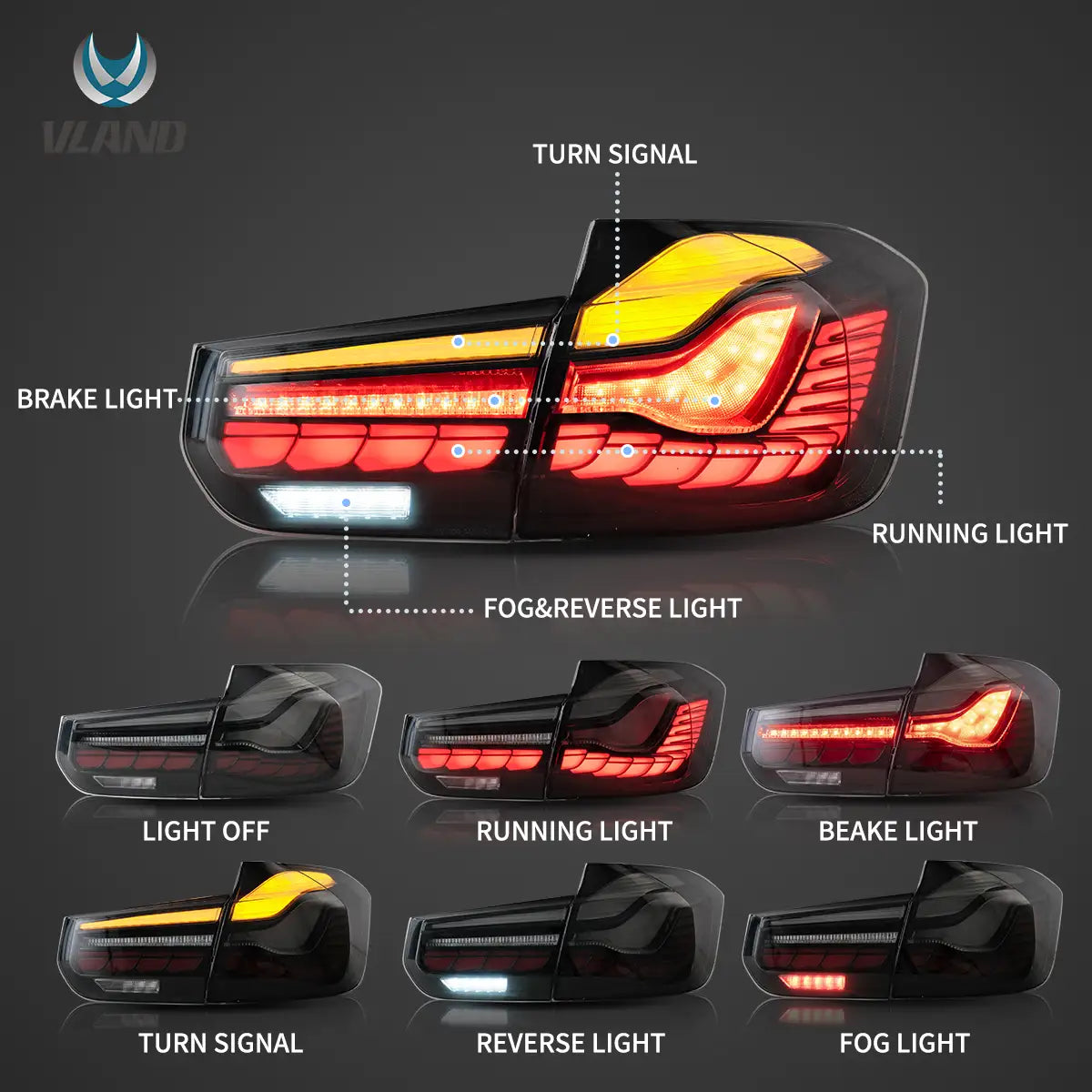

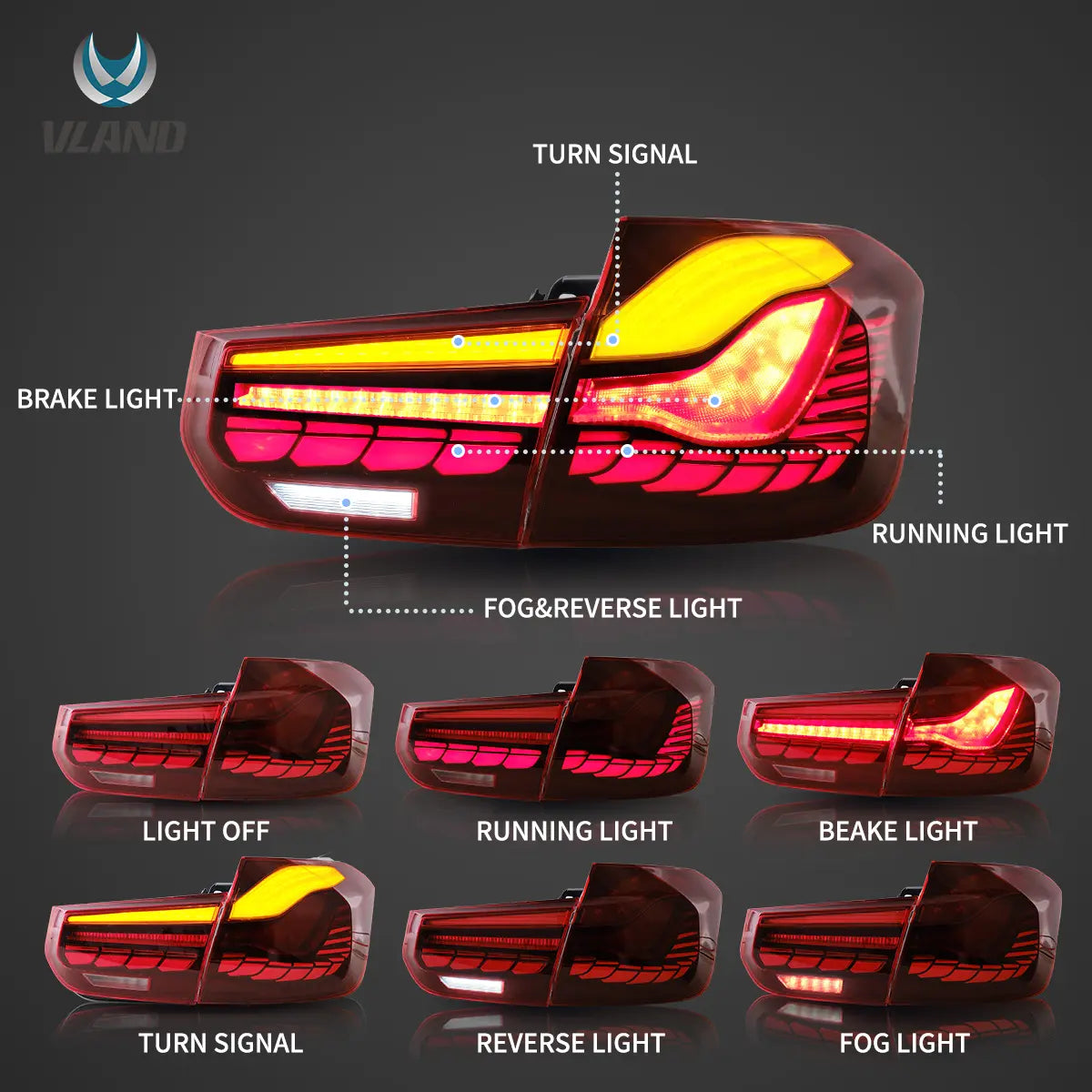

- LED functions: Running = red OLED (with start-up), Brake = red LED, Reverse = diamond-white LED, Turn = amber sequential LED.
- Certified: E-mark (ECE), plus production systems IATF 16949 & ISO 9001.

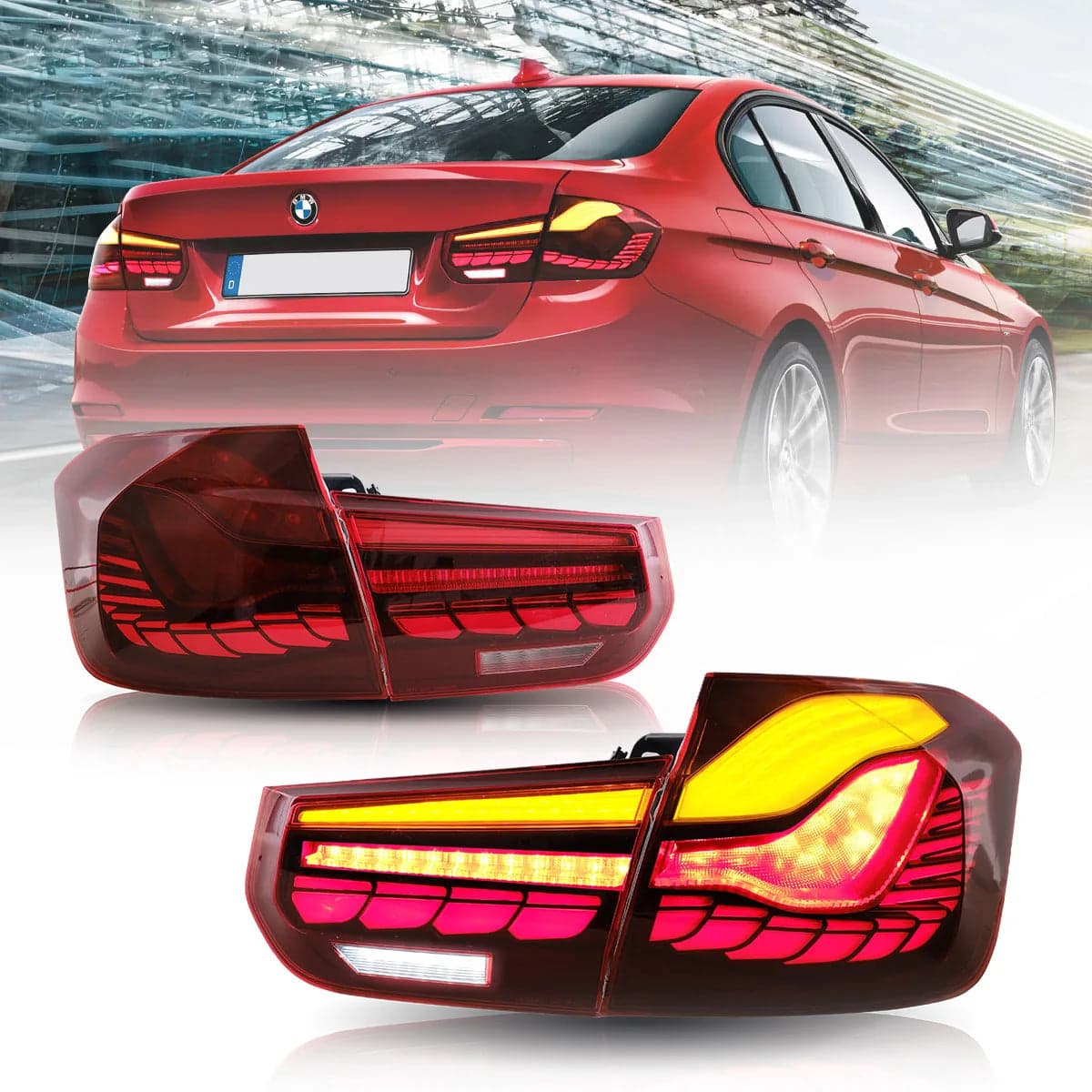

- Finish options: Smoked or Red Clear lenses.
- 1-year VLAND warranty from delivery with friendly support.
Exact fitment
Direct OEM replacement for the following BMW models (all engines and trims):
- 3 Series F30 Sedan — 2012–2019 (Pre-LCI & LCI)
- M3 F80 Sedan — 2014–2018
Not compatible with Touring models (F31). Sold as driver + passenger pair.

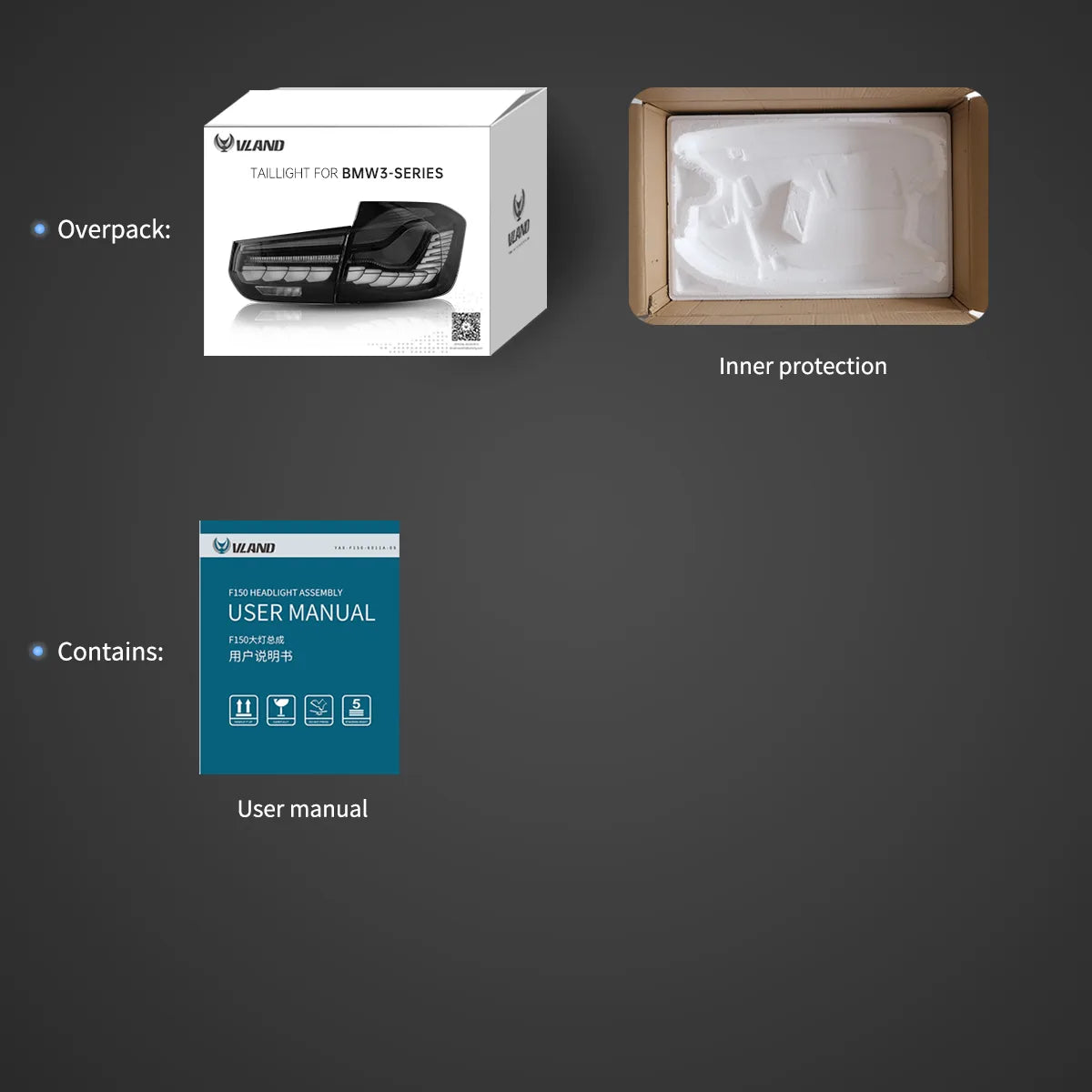

What’s in the box
- 1 × Left (driver) OLED tail light
- 1 × Right (passenger) OLED tail light
- Quick install guide / user manual

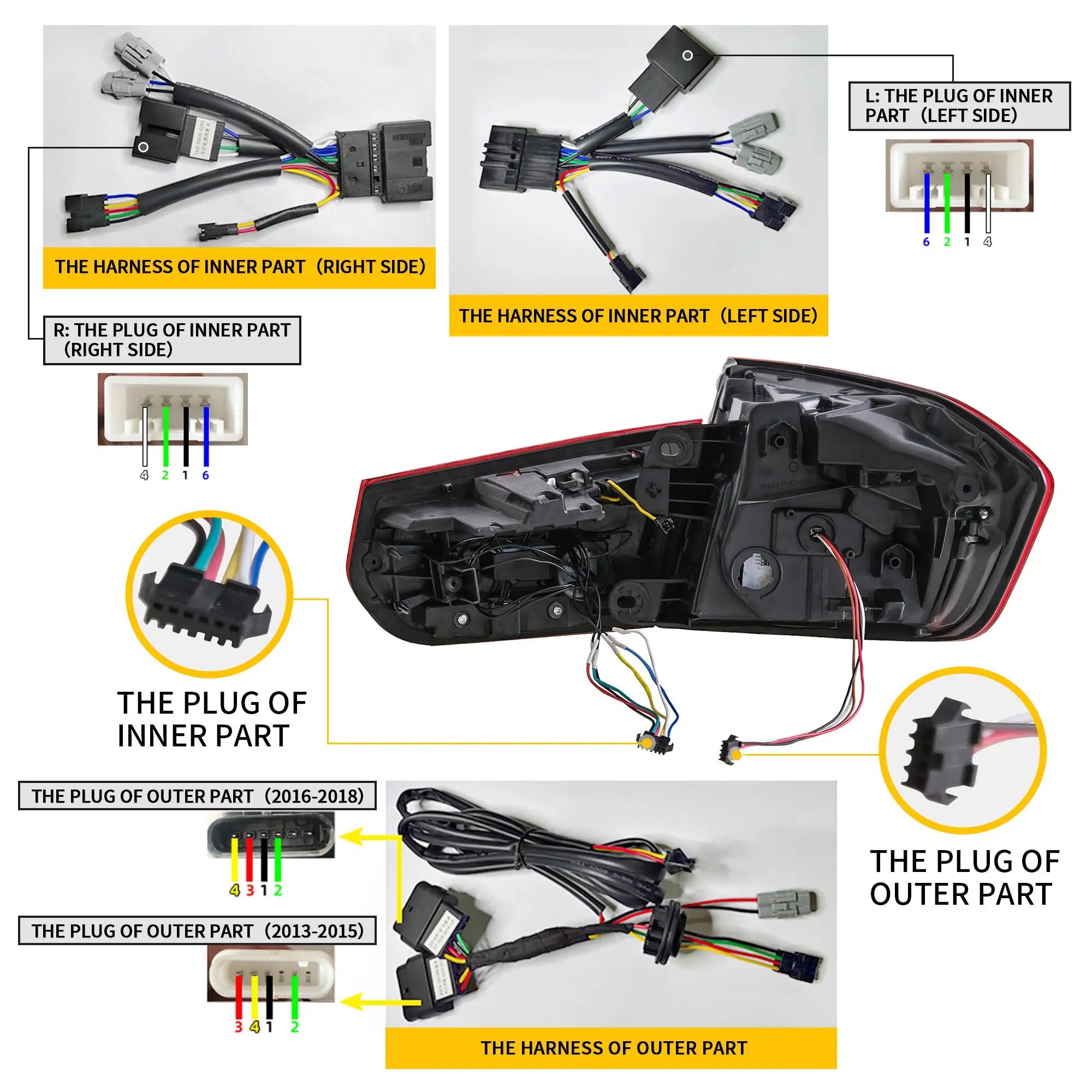

Install & wiring (plug-and-play)
- Remove OE lamps, transfer any clips/grommets if needed.
- Connect the OE multi-pin plugs directly to the VLAND lights and mount securely.
- Power on to verify: running (red OLED), brake (red), reverse (white), turn (amber sequential).
- Adjust panel gaps if necessary; finalize reassembly.
Tip: No coding is typically required on stock vehicles. If a bulb-check message appears, an inline decoder resolves it.
About VLAND
- In-house design & tooling with strict QC at our own factory.
- Certifications & systems: E-mark, DOT/SAE by market, CCC; built under IATF 16949 & ISO 9001.
- Signature GTS Style OLED look with fluid animation for an OEM-plus finish.
Tech specs
| Lens options | Smoked or Red Clear |
|---|---|
| Materials | ABS housing; PMMA/Glass lens elements; PC lens surfaces |

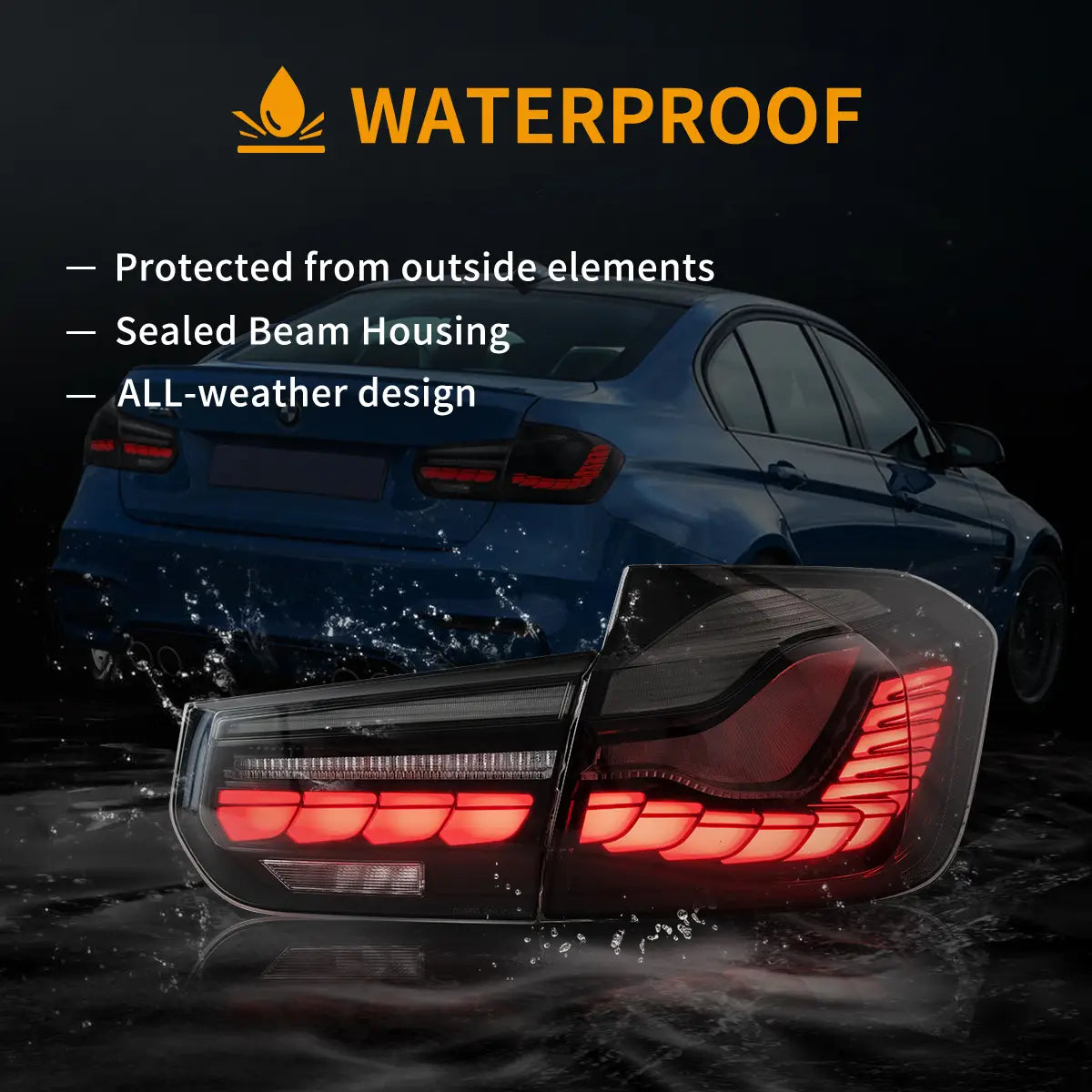

| Ingress rating | IP67 |
| Operating voltage / power | 12 V / ~35 W (typ.) |
| Load power (ref.) | Running 13.2 W; Turn 10 W; Brake 8.2 W + 10Ω; Reverse 1.8 W + 30Ω; Fog 1.8 W + 30Ω |
| Weight | Net ≈ 4.81 kg |
| Box size | 51 × 44 × 20 cm |
| Package | Foam-protected carton |
| Warranty | 1 year from delivery date |
OEM & parts cross-references
OEM (examples): 63217372793, 63217369121, 63217456523, 63217313039, 63217369115, 63217456517, 63217372794, 63217369122, 63217456524, 63217313040, 63217369116, 63217456518.
Partslink: BM2805104, BM2803115, BM2803125, BM2804104, BM2802125.
MPN / UPC: YAB-BMW-0293A / 784119393290.
FAQs
Will these fit my car? Yes — BMW 3 Series F30 sedan (2012–2019, Pre-LCI & LCI) and M3 F80 sedan; not for F31 Touring.
Do I need bulbs? No — these are full LED/OLED assemblies.
Any coding required? Usually no on stock cars; if a bulb warning appears, a simple decoder fixes it.
Are they certified? Yes — E-mark (ECE); produced under IATF 16949 & ISO 9001 systems.
What’s the warranty? 1-year manufacturer warranty from the delivery date on non-modified units.
