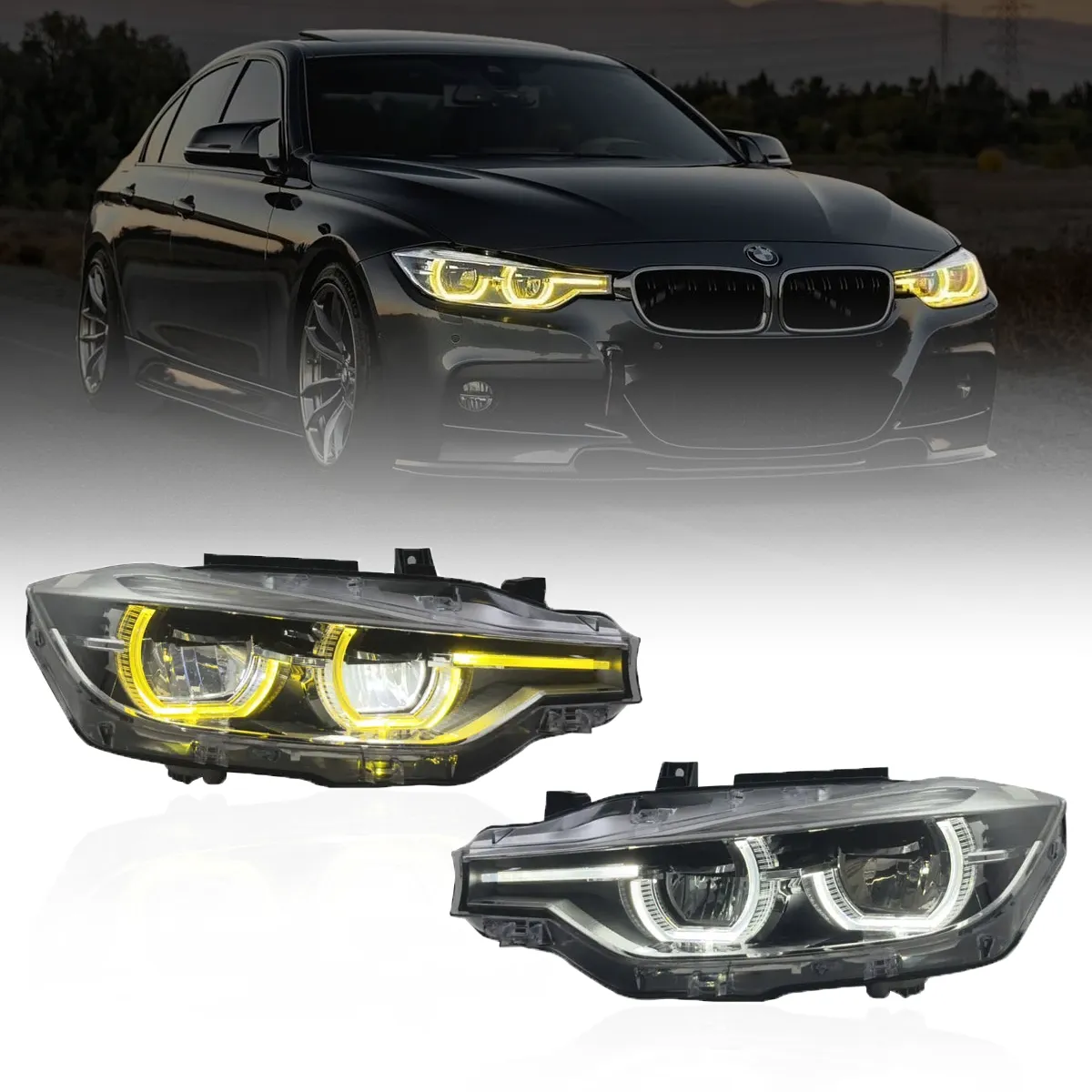

BMW 3 Series (F30/F31) LED Headlights — Yellow DRL — GTS/CSL Style — 2012-2018
Total Price
Per pair (left & right)
BMW 3 Series Headlights Price
Ships within 24h
LHD = right-hand traffic (e.g., USA, Germany, France, Spain). RHD = left-hand traffic (e.g., United Kingdom, Ireland).
Select your OEM connector pin count for plug-and-play fit. Not sure? Contact us.
Product Information
BMW 3 Series (F30/F31) LED Headlights — Yellow DRL — GTS/CSL Style — 2012–2018 — Halogen & Xenon Retrofit (Not for OEM LED)
Direct-fit LED headlamps for BMW F30 Sedan & F31 Touring (2012–2018). GTS/CSL style with white/yellow DRL switching and clean plug-and-play install. Not compatible with OEM LED cars; does not fit F34 GT.

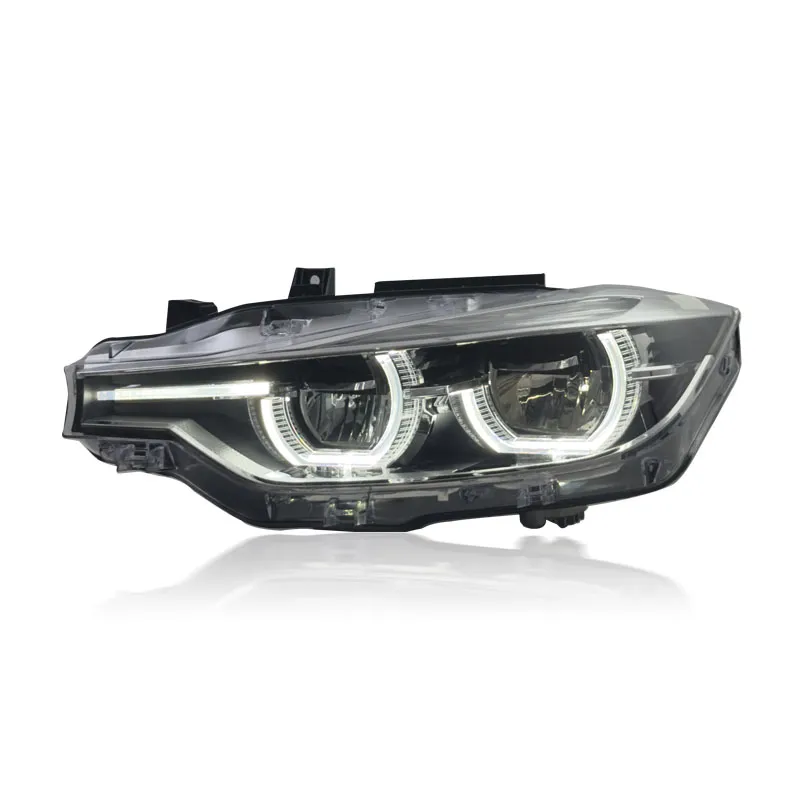

DRL mode switch (White ⇄ Yellow)

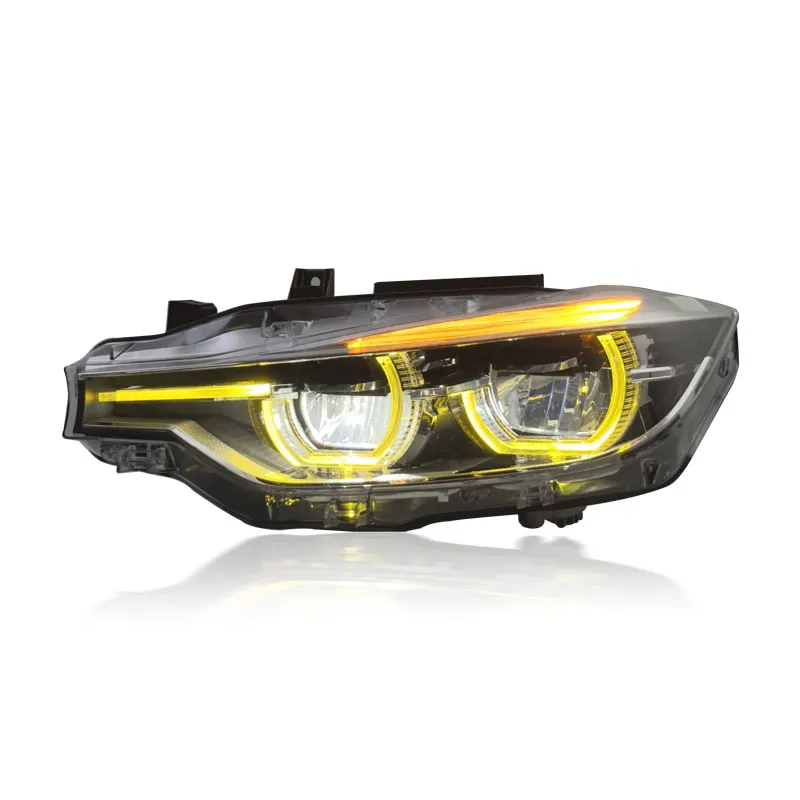

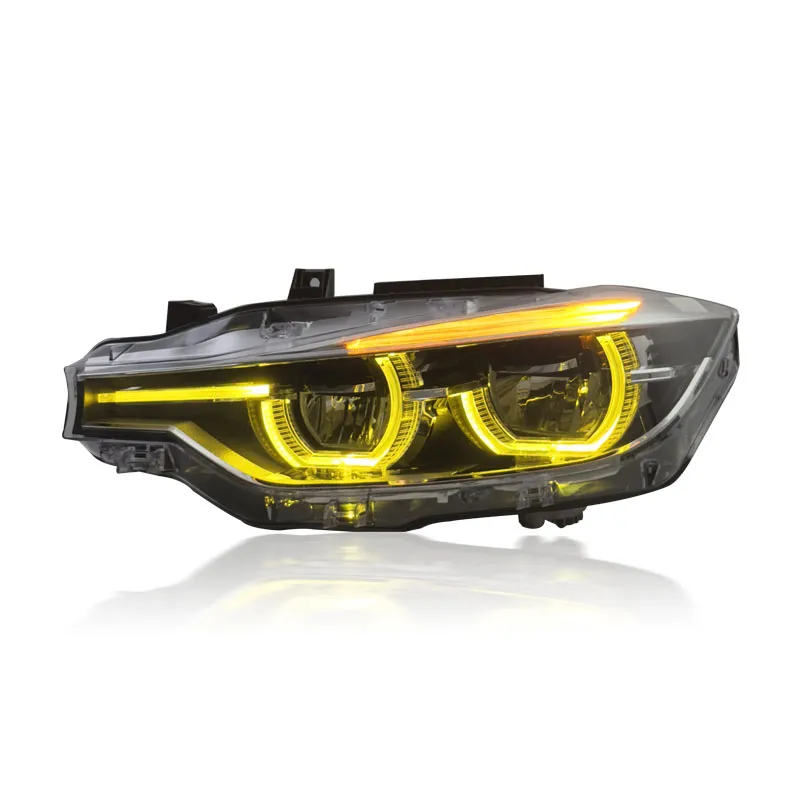

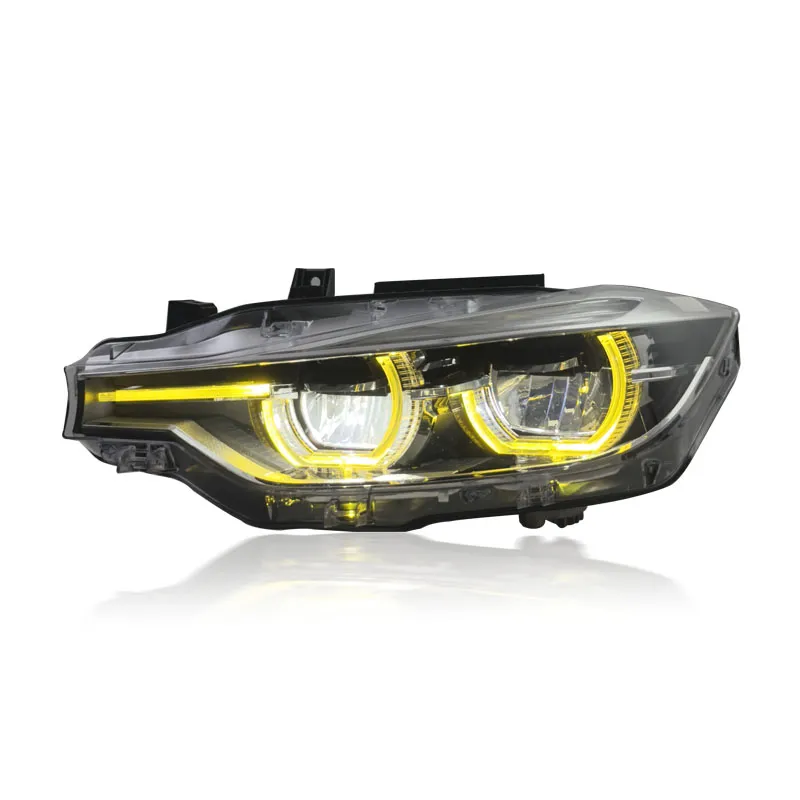

To switch DRL to Yellow: flash the high beams 5 times. (Supports white/yellow DRL modes.)
Highlights
- Full LED low/high with crisp output — no bulbs required.
- GTS/CSL style light signatures with Yellow/White DRL modes.
- Amber LED turn signals and OE-style connectors for a clean retrofit.
- Plug & play on F30/F31 halogen and xenon cars (not for factory LED).
- 1-year warranty from delivery.
Exact fitment & pin guide
Platforms: F30 Sedan, F31 Touring (excludes F34 Gran Turismo).
- LED (6-pin) — F30 approx. 2015–2018 (LCI), F31 approx. 2015–2019 (LCI), with 5A2 LED (non-adaptive) or 552 Adaptive LED. Order the 6-pin version.
- Pre-LCI Xenon non-adaptive (8-pin) — F30/F31 approx. 2012–2015 with 522 Xenon. Order the 8-pin version.
- Pre-LCI Adaptive Xenon (9-pin) — F30/F31 approx. 2012–2015 with 524 Adaptive Xenon (AHL/AFS). Order the 9-pin version.
Build date & VO/SA codes help: 522 = 8-pin, 524 = 9-pin, 5A2/552 = 6-pin. The headlight connector is a 12-position housing with 6/8/9 pins populated depending on variant.
In the box
- 1 × Left (driver) LED headlight
- 1 × Right (passenger) LED headlight
- User / quick install guide
Install & wiring
- Remove OE assemblies using factory mount points.
- Connect OE multi-pin plugs to each unit and secure.
- Power on to verify low/high, DRL mode, and indicators; aim beams with the built-in adjusters.
Purpose: retrofit/upgrade; 12 V system. Professional installation recommended.
Tech specs
| Voltage / Power | 12 V / 36 W (pair) |
|---|---|
| Output | ~6000 lm (typ.) |
| Color temperature | ~6000 K (white DRL mode) |
| DRL modes | White / Yellow (switch: flash high beam 5× to Yellow) |
| Housing / Lens | ABS + aluminum housing / PMMA lens elements |
| Package size | 65 × 35 × 53 cm (pair) |
| Gross weight | ≈ 12 kg (pair) |
| Warranty | 1 year from delivery date |
OEM references
63117259549, 63117259550, 63117314531, 63117314532, 63117338701, 63117338702, 63117338705, 63117338706, 63117338707, 63117338708, 63117338709, 63117338710, 63117365599, 63117365600.
FAQs
Do I need bulbs? No — these are full LED assemblies.
Will this fit my OEM LED car? No. These are for halogen/xenon-equipped F30/F31 only.
Does it fit F34 GT? No — F34 is not supported.
