CSL White/Yellow Switchable DRL Modules — BMW G30/G31 5 Series & F90 M5 (Icon LED)
Switchable White/Yellow DRL — Pre-Installed Heatsinks — Plug-and-Play — Pre-LCI Icon LED — 2017–2020
G30 Sedan • G31 Touring • F90 M5 • 530i • 540i • M550i • Icon LED • Pre-LCI • 2017–2020

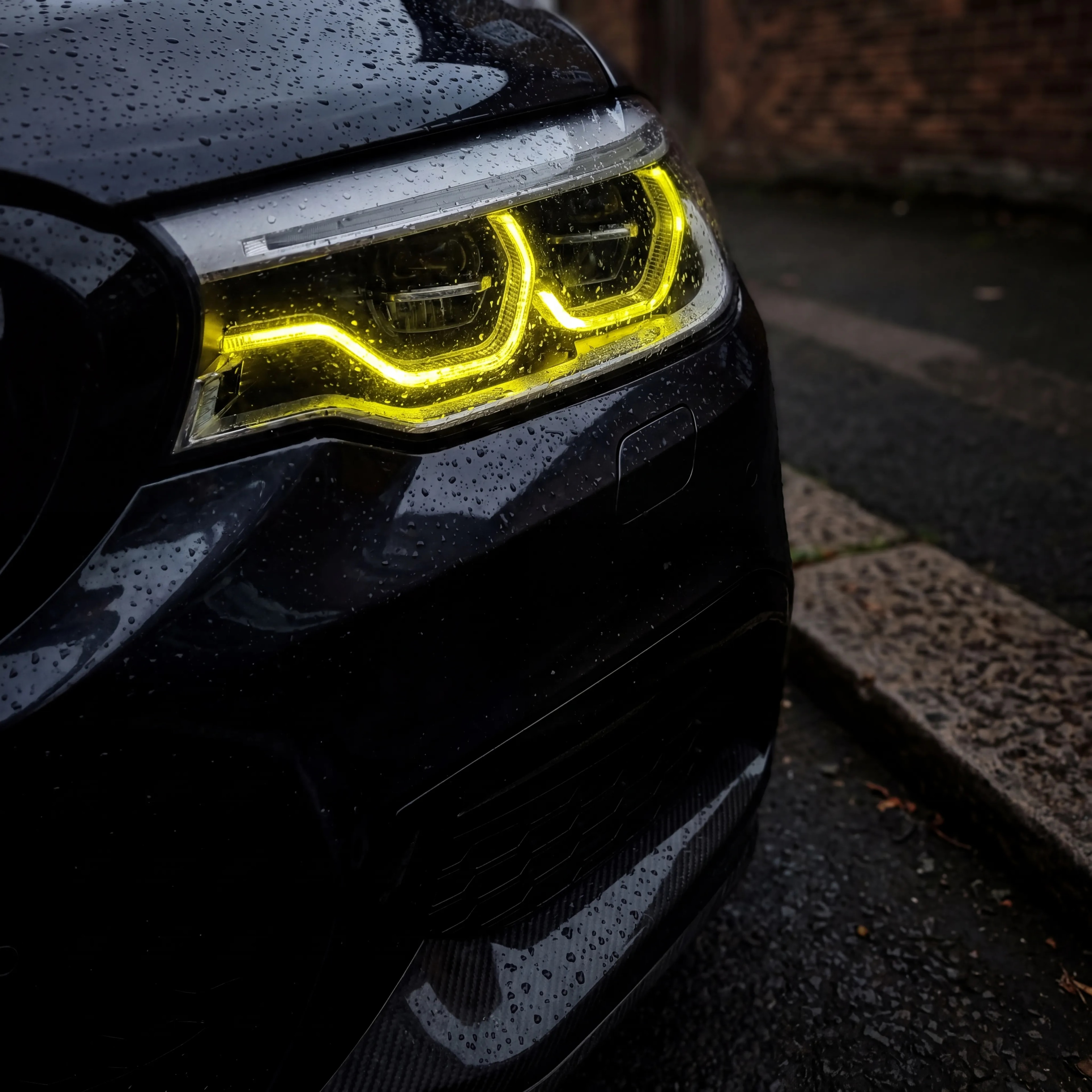

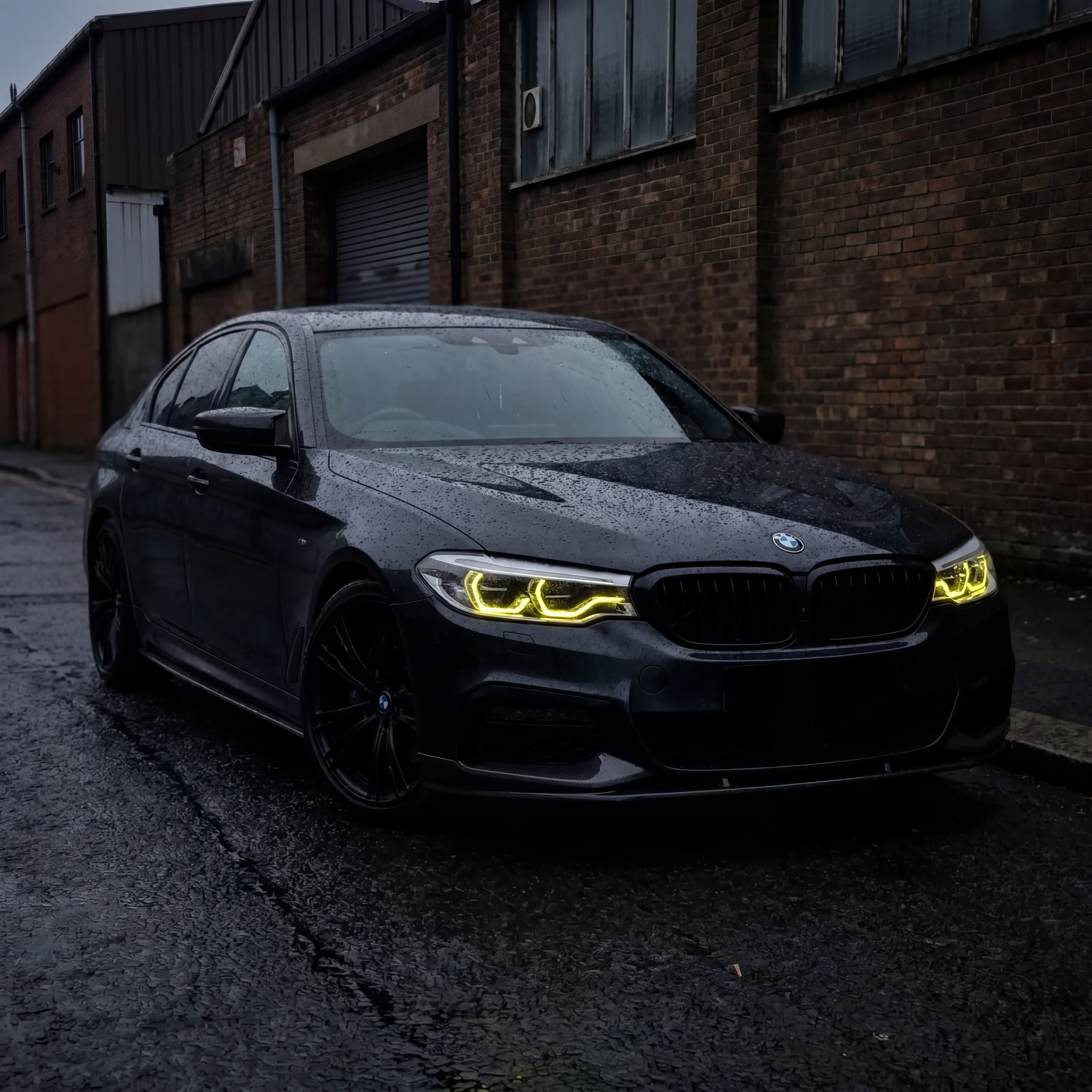

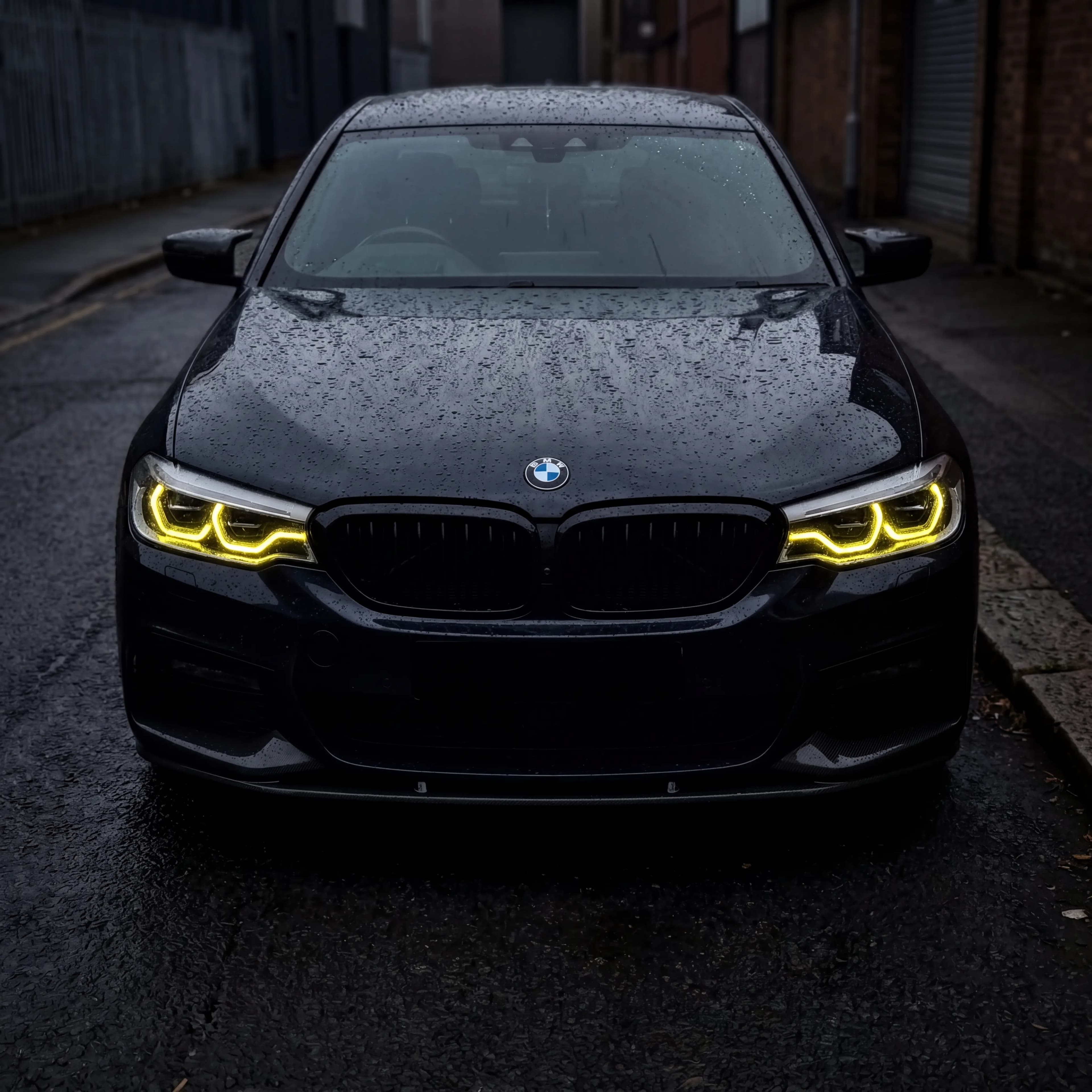

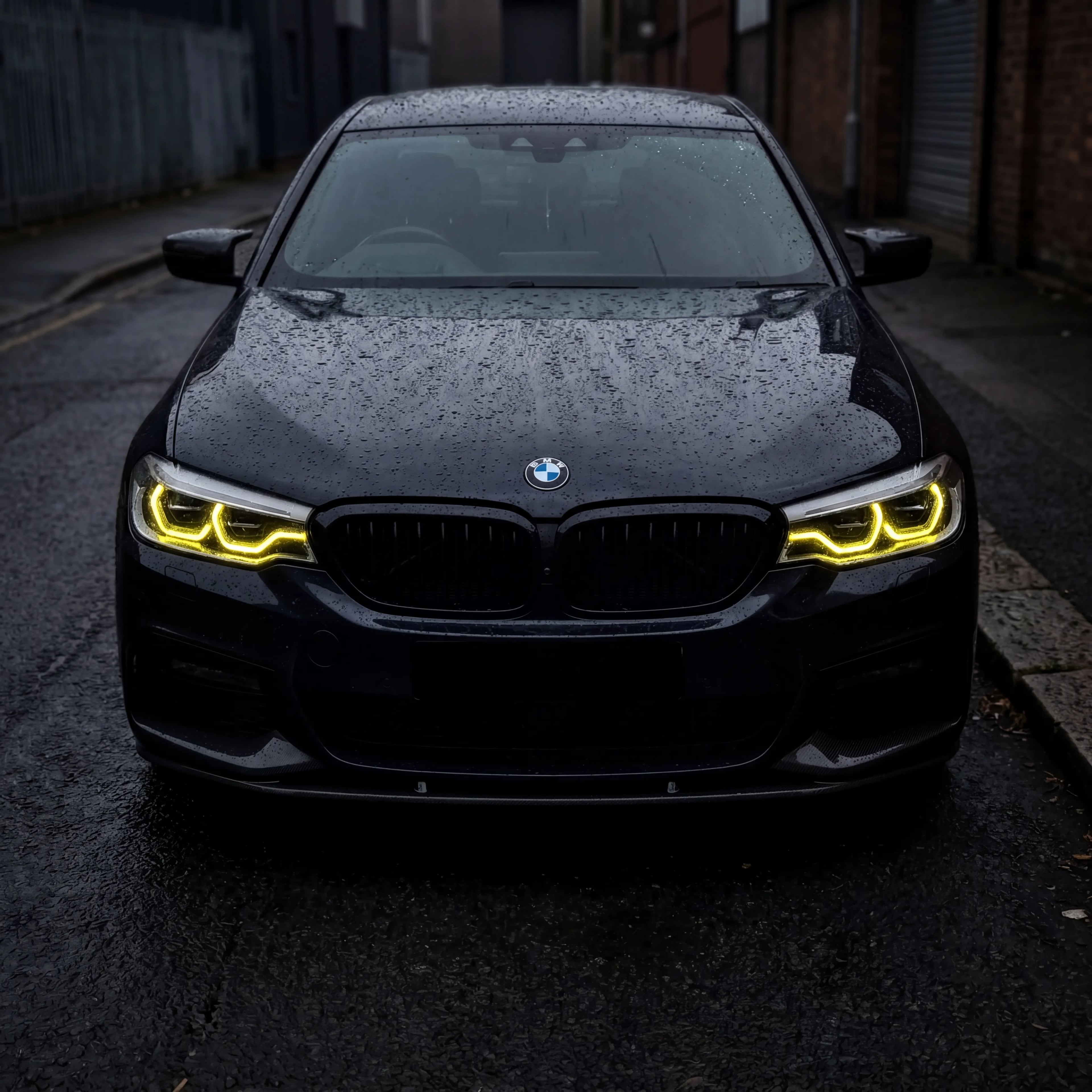

The G30's Icon LED headlight gave the 5 Series the angular, geometric DRL that BMW carried across the entire G-generation lineup — the same design language that later showed up on the M5 CS in yellow. These modules let you switch it to CSL yellow from the high-beam stalk in under two seconds, plus strobe, breathing, and an automatic mode tied to your low beams. White is calibrated to match your factory DRL color temperature; the car looks stock at a glance.
Fits Icon LED headlights on pre-LCI 2017–2020 G30/G31 and F90 M5. Does not fit Laser headlights or LCI (2021+). Same module for EU and US markets — no market selection needed.
Is This Your Headlight?
These modules fit the Icon LED headlight on pre-LCI 2017–2020 G30/G31 and F90 M5 — the geometric, angular DRL shape without blue accents inside the housing. If your headlights have blue "L" inlays and a "BMW Laser" script on the lens, you have the Laser headlight, which needs a different product. If your car is a 2021+ LCI, these are not compatible.
Icon LED
Geometric DRL shape — no blue accents inside.
Not sure which headlight you have?
Send us your VIN and we'll confirm in minutes. Contact us here →

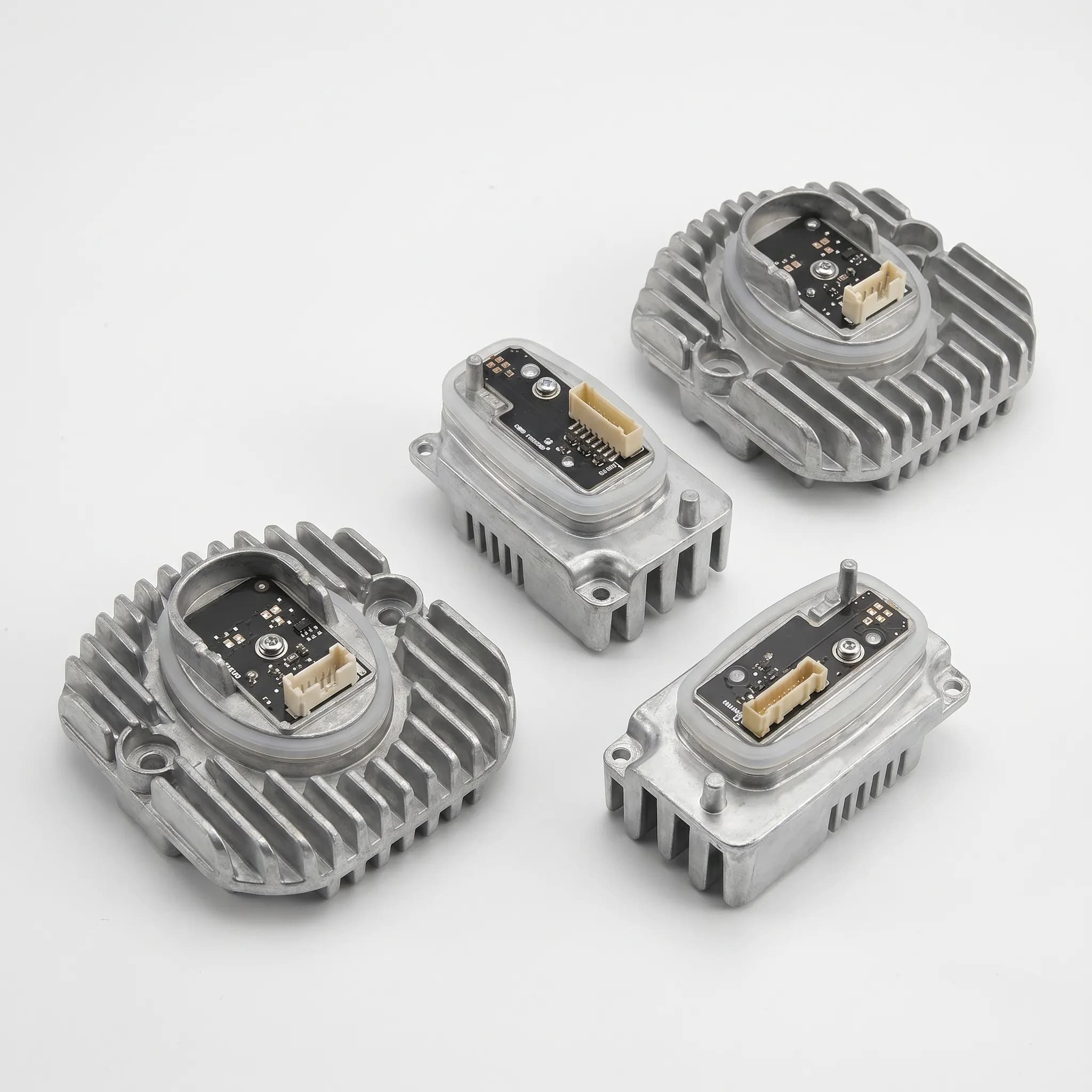

Complete modules, not bare boards.
Each Eleron module arrives as a finished assembly — LED board bonded to its own aluminum heatsink with thermal interface pre-applied. The install is clean mechanical work: unbolt, unplug, swap, bolt. Your factory modules come out untouched and stay factory-correct in a drawer, so the upgrade is fully reversible whenever you want. No separating boards from heatsinks, no thermal paste, no board-level work.
Five modes · One stalk · No app
DRL Control
Every mode switches from your factory high-beam stalk with low beams off. Your selection persists through ignition cycles.
-

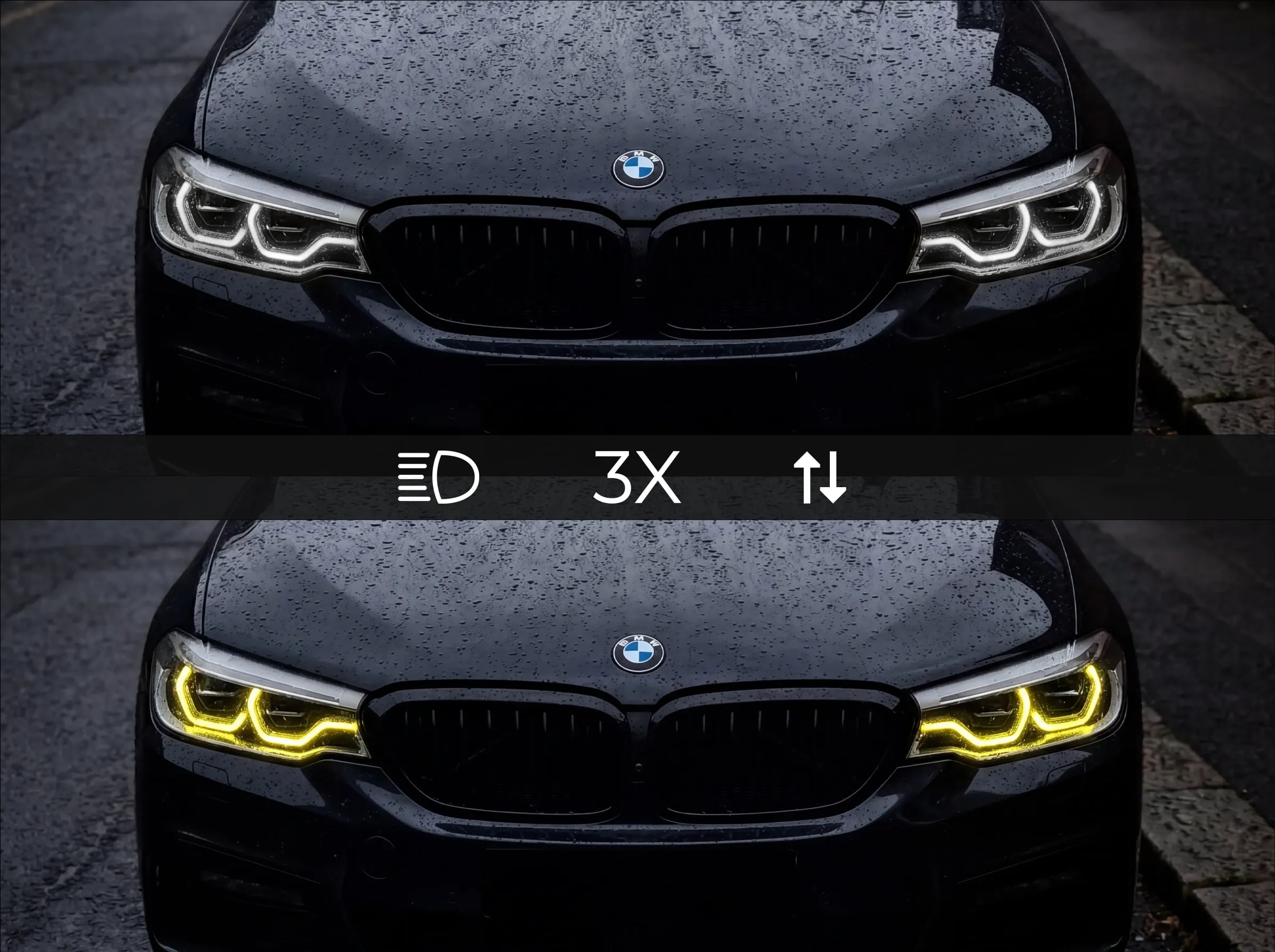

3×Manual Toggle
Switches between solid White and solid Yellow DRL. Your choice stays set until you change it.
-
5×Auto Mode Eleron Exclusive
Set it and forget the toggle. The DRL follows your low beams automatically: Yellow when low beams are off, White when they come on. Most competitor modules only offer manual toggling.
-
7×Strobe
A left-right progressive strobe in your current DRL color. Flash 7× again to switch the strobe to the other color. A show mode, not for road use.
-
11×Ambient Breathing
A slow, subtle pulse where the DRL dims in and out. Best used while parked or at idle — not intended for driving.
-
9×Reset
Returns the module to factory White DRL and clears all mode settings.
Built for Icon LED
Plug-and-Play — Zero Coding
Built specifically for the G30 Icon LED DRL circuit. Connects to your factory controller and wiring — no coding, no CAN adapters, no error codes. Welcome light, turn signal integration, and all headlight functions stay exactly as BMW engineered them.
Matched Pairs — Binned Together
Left and right modules are color-matched at QC before they ship, so your DRLs read identical side-to-side. Cheap imports often mix LED bins — one headlight slightly warmer than the other — and once you've noticed the difference, you can't un-notice it.
Fully Reversible
Factory modules come out intact and go in a drawer — bolt them back in for a lease return, sale, or dealer visit. Same process, same screws, no residue.
2-Year Warranty
Two years of coverage from delivery date on every set.
Installation
The DRL modules on the G30 Icon headlight sit on the underside of the housing. Reaching them requires removing the front wheels and fender liners, or a full front bumper removal for more working room. Neither method is unusual for this generation — any shop familiar with the G30 will know the access path.
Once you have access: three T20 Torx screws hold each factory module. Back them out, unplug the connector, plug the Eleron module in, secure with the original screws. Test both White and Yellow DRL before closing everything up. A shop will quote 1–2 hours of labor.
Tools: T20 Torx bit, trim removal tool, jack and stands if going the wheel/liner route.
Frequently Asked Questions
Laser headlights have blue accents visible inside the housing and often a "BMW Laser" script etched into the outer lens. Icon LED has no blue accents and no laser script — just the standard geometric DRL shape. Each uses a different DRL connector, so you need to match the product to your headlight type.
No. Laser headlights use different DRL electronics and a different connector. We sell a dedicated Laser DRL module — message us and we'll point you to it.
No. The LCI uses redesigned headlights with a different DRL architecture. These modules are for the pre-LCI (2017–2020) only.
Yes. The G30 Sedan, G31 Touring, and F90 M5 share identical Icon LED headlight housings and DRL modules.
No. One module fits both EU and US market Icon LED headlights — no market selection needed.
Yes. The DRL modules sit on the underside of the Icon headlight housing — there's no engine-bay shortcut. The wheel-and-fender-liner route is cleanest; full bumper removal gives more working room. A shop will quote 1–2 hours of labor.
No. The modules draw the same current as the factory DRL and speak the same CAN signals to your headlight controller. No coding needed, no codes thrown.
White matches the factory Icon LED DRL color temperature, so the car looks stock at a glance — the right pick when you want the OEM aesthetic. Yellow is the CSL-style signature, the detail that made the M5 CS stand out. Switching takes under two seconds from the driver's seat, so your configuration isn't locked in.
Technical Specifications
| Product Type | DRL LED Module (complete unit with heatsink) |
|---|---|
| DRL Colors | White (~6,000K) / Yellow (~3,000K) — switchable |
| Modes | Static White · Static Yellow · Auto · Strobe · Ambient Breathing · Reset |
| Switching | High-beam lever (low beams off) — no app, no remote, no external controller |
| Heatsink | Aluminum — pre-installed (complete module swap, no board-level work) |
| Mounting | T20 Torx screws — direct replacement of factory DRL module |
| Operating Voltage | 12V DC |
| Coding Required | No |
| Dashboard Warnings | None |
| Welcome Light | Preserved |
| Compatibility | G30 Sedan · G31 Touring · F90 M5 · Icon LED · Pre-LCI · EU & US · 2017–2020 |
| Not Compatible | Laser headlights · LCI (2021+) |
| Market Versions | Single SKU — same module for EU and US markets |
| Sold As | Set (Left + Right modules) |
| Warranty | 2 Years |
OEM Cross-Reference Numbers
| Icon LED G30/G31/F90 · Pre-LCI · 2017–2020 |
Left: 63 11 7 214 939 Right: 63 11 7 214 940 |
|---|
Same module for EU and US markets. If your part number doesn't match, you may have Laser headlights which need a different product. Send us your VIN and we'll confirm.
